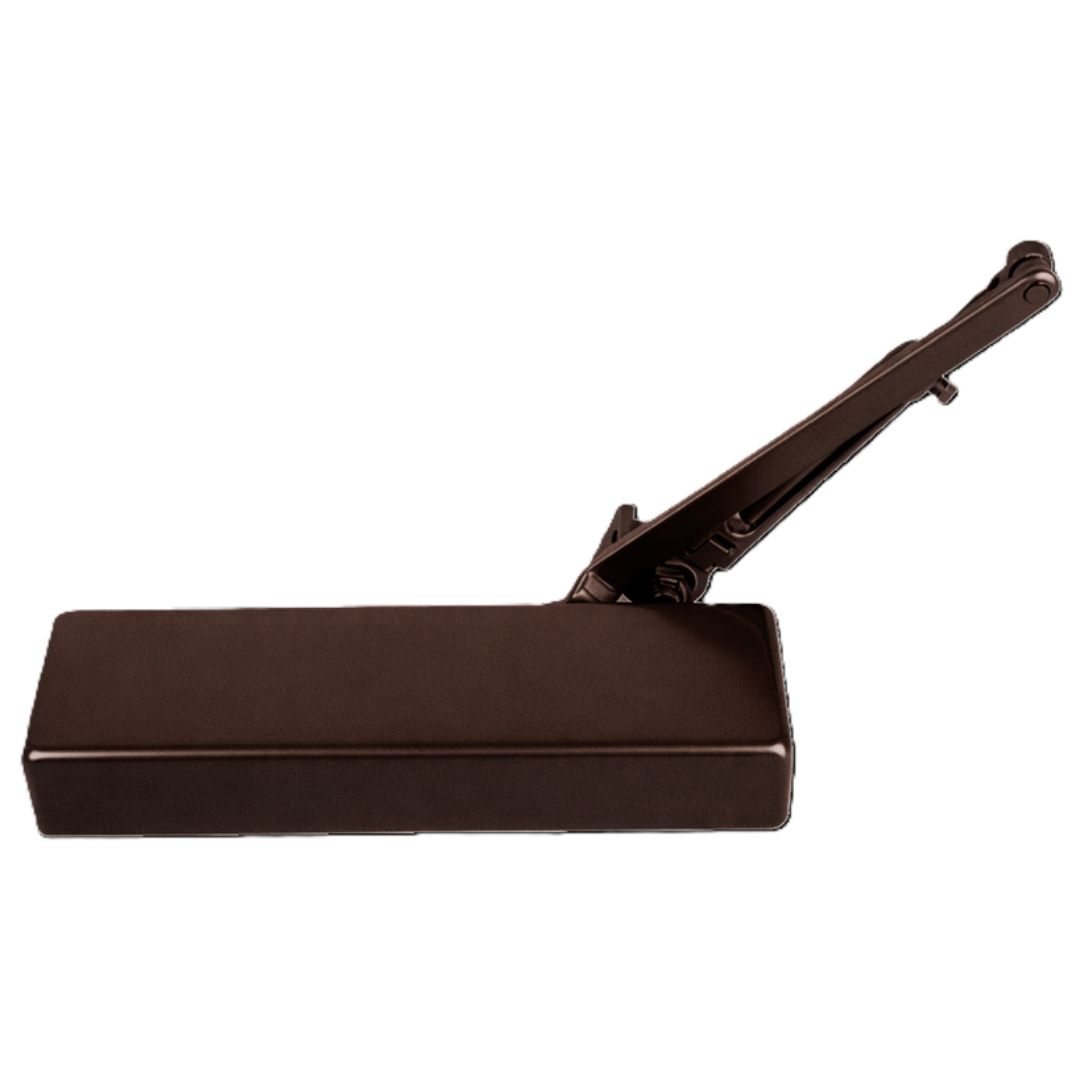

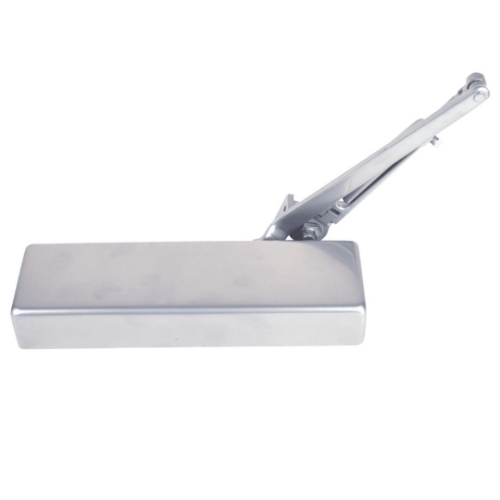

Norton Rixson J1601 Top Jamb Mount, Deep Reveal Closer

Norton Rixson J1601 Top Jamb Mount, Deep Reveal Closer

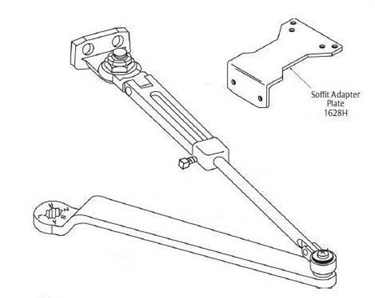

Deep Reveal Arm

Use top jamb J1600 closer for frame reveals from 3" to 7" (76 to 178mm).  Use top jamb J1600H closer for frame reveals from 2-3/4" to 6-3/4" (70 to 171mm).

Non-handed

Power Size: Multi-Sized Door Closer Adjustable through the power range of sizes 1 through 6.

Separate and independent, latch, sweep and backcheck intensity valves

Sweep Speed: Allows adjustment of door speed from the door's full open position down to approximately 10 Degree from the closed position.

Latch Speed: Allows adjustment of door speed from approximately 10 Degree down to the door's fully closed position.

Backcheck: Provides control of the door in the opening cycle, beginning at approximately 75 Degree of door opening. It slows/cushions the door opening, when the door is forcibly opened beyond its pre-adjusted opening speed limits.

All standard arm applications allow doors to swing 180 Degree, conditions permitting

15-year limited warranty

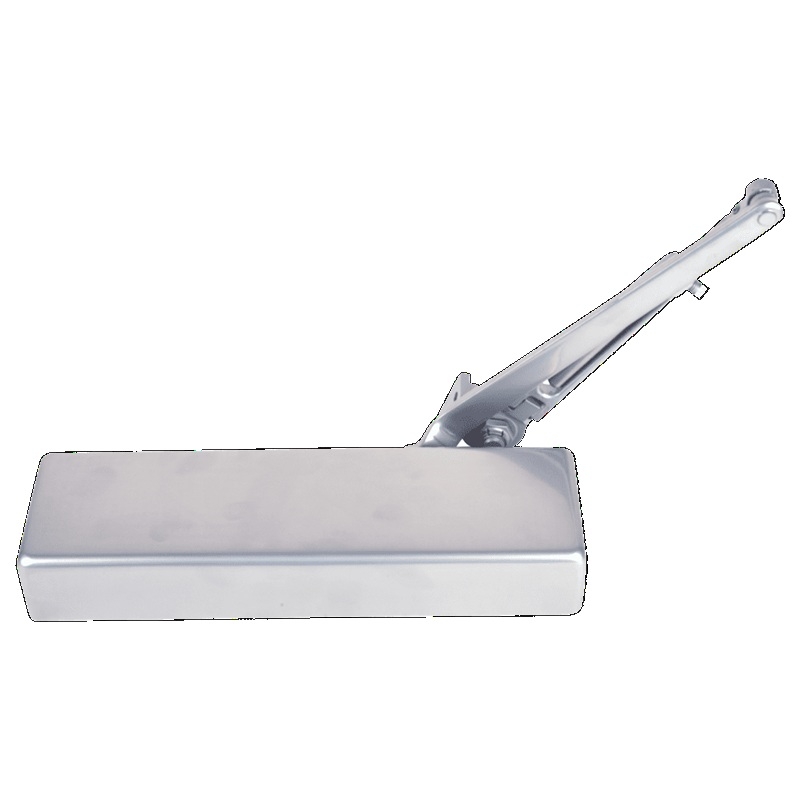

Model: Norton Rixson Door Closer, J1601, J1601H, 689, Silver Aluminum PainHed, J1601689, J1601H689

Aluminum Alloy Housing: Closer bodies are constructed of a specialaluminum alloy, carefully selected toaccommodate interaction with steelcomponents and operating conditions.

Rack & Pinion Operation: Provides a smooth constant control of thedoor through its full opening and closingcycle. 180 Degree door swing can be achievedwhen door, frame, hardware and armfunction do not limit door swing.

2-7/8" (73mm) projection

1-3/8" (35mm) diameter piston

5/8" (16mm) diameter pinion journals

Complicance Standards

ANSI/BHMA A156.4, Grade 1 certified

UL listed

UL10C compliant for positive pressure

A.D.A. compliant (1601BF)
