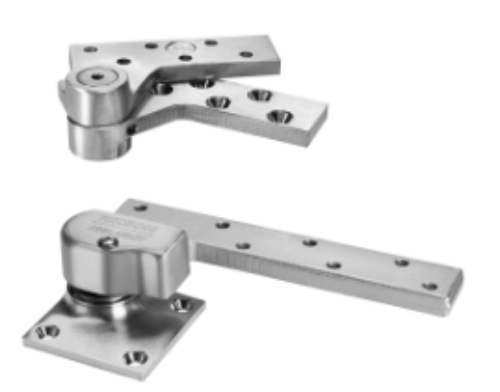

Norton Rixson L147 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (800 lbs)

Norton Rixson *L147 X 1-3/4 626 Pivot Set, 1-3/4" Lead Lined Door, 3/4 Offset, Satin Chrome (800 lbs)*

Application:

Exterior or Interior DoorsLead-Lined/Heavy/High Traffic DoorsWeight to 800 lbs.Door Width up to 4'0" (1219mm)HandedHeavy Weight Pivot Set

Description/Features:

Standard top pivot L180 includedML19 intermediate pivot required (order separately)Bottom pivot mounts directly to floorDoors with lead lining under the skin should also use this product.Screw holes in top pivot and bottom arm spaced to straddle lead lining in the middle of the doorNon-ferrous base materialDoors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) of door height warrants another intermediate pivot3/4" (19mm) offset (measured from centerline of pivot to face of door)Door edges must be beveled 1/8" in 2"Furnished with wood and machine screwsExtended spindles available in 1/2" (13mm) increments up to 2" (51mm) longer than standardDoors will swing 180 Degree, trim permitting

Model: L147 X 1-3/4 RH 626, L147 X 1-3/4 LH 626 , L147X1-3/4RH626
