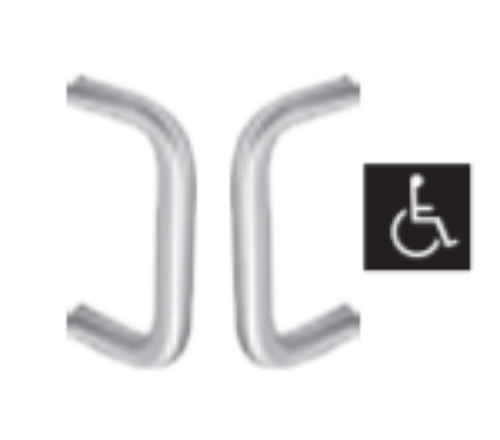

PDQ H33E Back to Back Door Pull - 1" Round Straight, 10" CTC ADA

About this item

PDQ H33E Back to Back Door Pull - 1" Round Straight, 10" CTC ADA

Specifications

MODEL:
H33E.
PROJECTION:
3 1/2".
CENTER TO CENTER:
10".
OVERALL LENGTH:
11".
CLEARANCE :
-2 1/2".
MOUNTING:
1 - TYPE 1 (DEFAULT) Thru Bolt for Metal, Composite or Wood Door.
6 - TYPE 6 Surface Concealed for Metal Door (Door Reinforcement by Others).
6R - TYPE 6R Surface Concealed for Metal Door (Rivnut).
8 - TYPE 8 Surface Concealed for Wood Door (Knife Thread Insert).
12 - TYPE 12 Thru Bolt for Metal, Composite or Wood Door, Decorative Head.
15 - TYPE 15 Thru Bolt for Glass Door, Decorative Head.
FINISHES:
- 605 (US3) Bright Brass, 606 (US4) Satin Brass, 612 (US10) Satin Bronze, 613 (US10B) Oil Rubbed Bronze, 628 (US28) Aluminum - Anodized, 630 US32D) Satin Stainless Steel, see specific product for finish availability.
- Antimicrobial Coating available on 630 (US32D) only.

PDQ PULLS, pdqH33E, H33Epdq, H33E, PDQ H33E, H33E PDQ

Resources

• FlushBolts-Coordinators-Brochure.pdf
