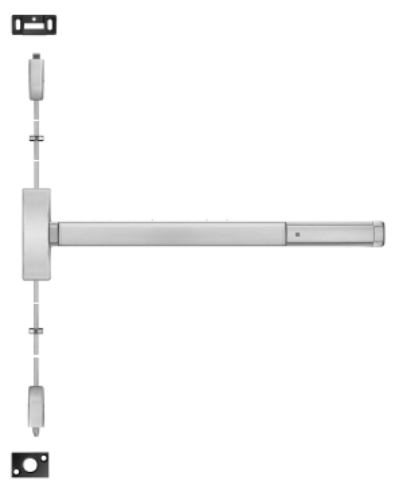

PHI Precision E2203 Apex Electric Lock/Unlock Surface Vertical Rod Exit Device, Key Retracts Latchbolt

PHI Precision E2203 Apex Electric Lock/Unlock Surface Vertical Rod Exit Device, Key Retracts Latchbolt

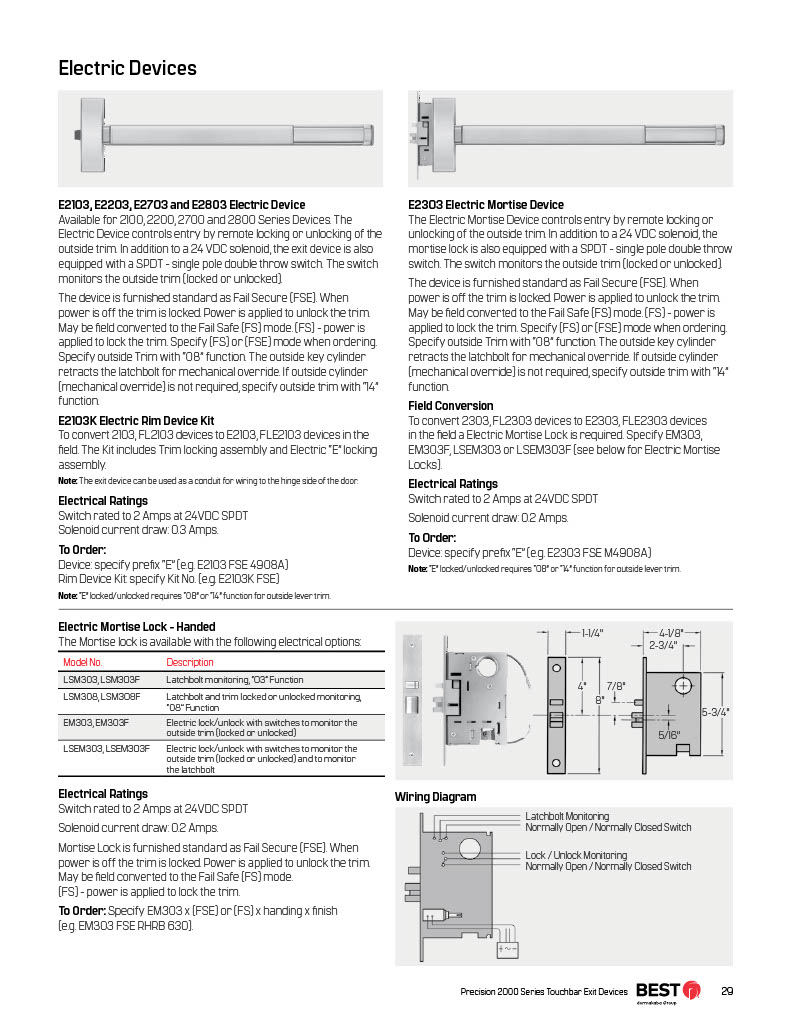

E2103 Electric Device:

The Electric Device controls entry by remote locking or unlocking of the outside trim. In addition to a 24 VDC solenoid, the exit device is also equipped with a SPDT - single pole double throw switch. The switch monitors the outside trim (locked or unlocked).

The device is furnished standard as Fail Secure (FSE). When power is off the trim is locked. Power is applied to unlock the trim. May be field converted to the Fail Safe (FS) mode. (FS) - power is applied to lock the trim.

Note: The exit device can be used as a conduit for wiring to the hinge side of the door. Note: "E" locked/unlocked requires "08" or "14" function for outside lever trim.

Electrical Ratings: Switch rated to 2 Amps at 24VDC SPDT Solenoid current draw: 0.3 Amps Description and Features:

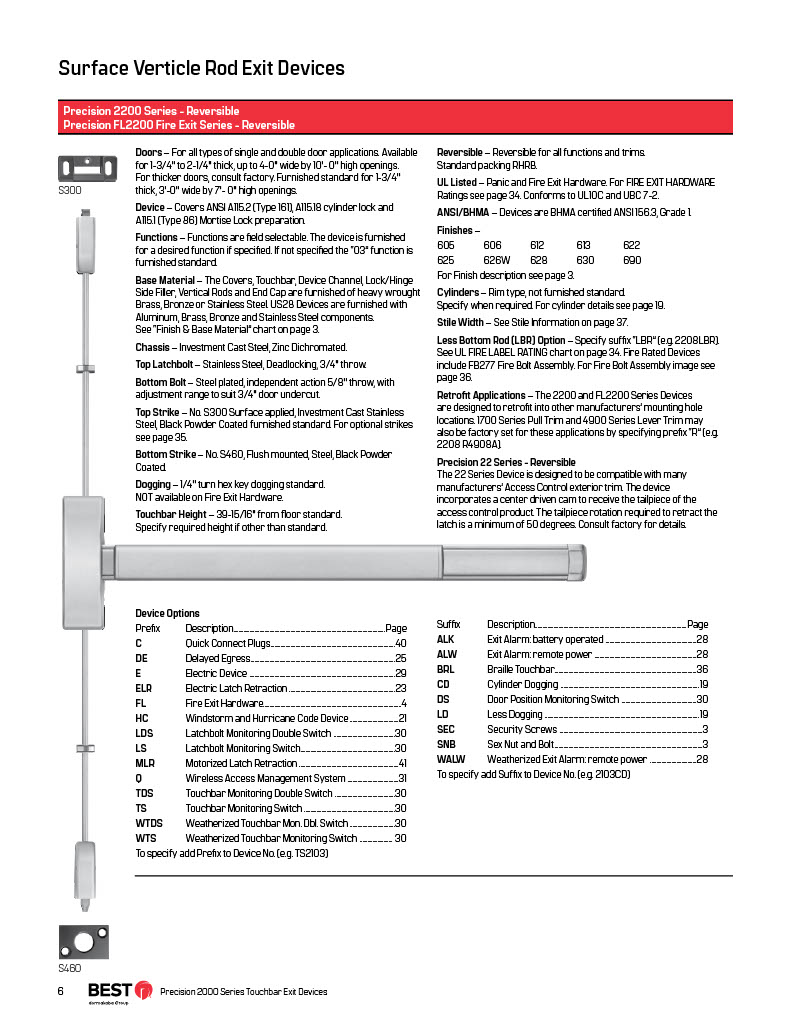

Fasteners: Furnished standard with machine screws and full thread wood/sheet metal screws. .

Door Sizes: 36" - 2'-7" to 3' Door Width  48"- 3'-1" to 4' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw.

Strikes:No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard. No. S988, optional strike for use on Aluminum Door applications, No. S458, optional strike for use on Mullion applications

Dogging:1/4" turn hex key dogging standard.

Reversible: Reversible for all functions and Trims. Standard packaging RHRB.

UL Listed:  UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

ANSI/BHMA:Devices are BHMA certified for ANSI 156.3, Grade 1.

Stile Width:See Catalog Page # 36

Model:Stanley-Precision E2203-605-36, E2203-606-36 , E2203-612-36 , E2203-630-36 , E2203-613-36, E2203-625-36  E220360536, E2203606-36 , E220361236 , E2203630-36 , E2203613-36, E220362536, E2203-605-48, E2203-606-48 , E2203-612-48 , E2203-630-48, E2203-613-48, E2203-625-48, E220360548, E2203606-48 , E220361248 , E2203630-48 , E2203613-48, E220362548, E2201-630, E2202-630, E2203-630, E2205-630, E2214-630, E2215-630
