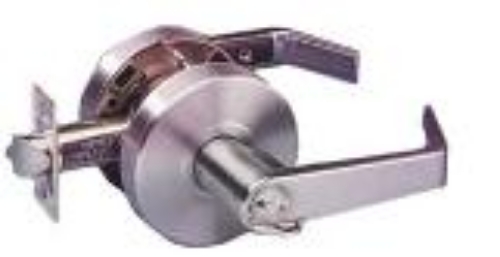

S. Parker 8161N Grade 1 Passage Lever Set

S. Parker 8161N Grade 1 Passage Lever Set

Latch bolt operated by lever from either side at all times.

Grade 1 Extra Heavy Duty

Meets or exceeds Federal ADA requirements

UL latch bolt standard for every function, with 1/2" throw

Large 3 1/2" diameter roses for new  or replacement installations

4 7/8" ANSI strike is standard with each lock

UL listed, 3-hour fire rated 2 3/4" backset commercial latch

Extra heavy cylindrical construction for long-wearing durable use

Extra heavy duty mounting plates are resistant to attack

Mounting studs prevent chassis rotation from heavy torque to the outside lever

Engineered and manufactured for the heaviest barrier-free use

UL: Underwriters Laboratories Listed S.Parker Grade 1 extra heavy ball knob sets and barrier-free leversets have been listed by Underwriters Laboratories, Inc. for use on fire doors having a rating up to and including 3 hours. When applied to hollow-metal, metal-clad (Kalamein), composite (with steel and other coverings) and sheet-metal type fire doors. It is advisable to check local code authorities, the ?Building Materials Directory published by UL, and the door manufacturer for specific requirements.
