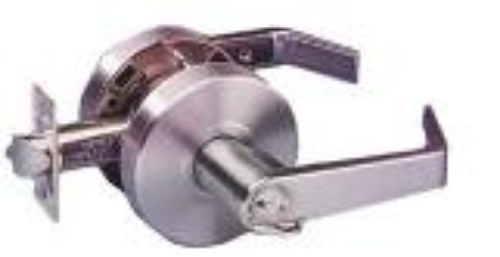

S. Parker SL8160P Grade 2 Privacy Lock

S. Parker SL8160P Grade 2 Privacy Lock

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

Reversible, non-handed

Fits doors from 1 3/8" to 1 3/4" thick

2 3/4" backset UL listed latch bolt Standard. 2 3/8" BS available upon request

1 1/4" x 4 7/8" ANSI strike. Standard.

1/2" throw solid brass latch-bolt, UL listed, three hour fire rated

Leversets meet ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.

S. Parker leverset features and functions include: Single step roses Cold rolled steel housing Separate lever spring mechanisms help prevent sag Convertible Posts Full 5" long handles on all levers in all functions
