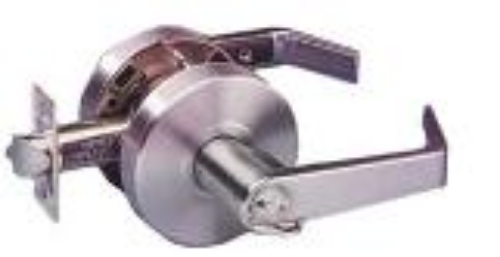

S. Parker SL8160R Grade 2 Classroom Lock

S. Parker SL8160R Grade 2 Classroom Lock

Deadlocking latchbolt operated byLeverform either side except when outsideLeveris locked from outside by key. When outsideLeveris locked, latchbolt is operated by key in outsideLeveror by rotating insideLever.

Reversible, non-handed

Fits doors from 1 3/8" to 1 3/4" thick

2 3/4" backset UL listed latch bolt Standard. 2 3/8" BS available upon request

1 1/4" x 4 7/8" ANSI strike. Standard.

1/2" throw solid brass latch-bolt, UL listed, three hour fire rated

Dead locking latch on all keyed leversets

6 pin solid brass SC-1 ILCO #1145 keyway, keyed to 5 pins

2 nickel silver keys

Special keying available (Master and Grand Master)

Leversets meet ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.

S. Parker leverset features and functions include: Single step roses Cold rolled steel housing Separate lever spring mechanisms help prevent sag Convertible Posts Full 5" long handles on all levers in all functions?
