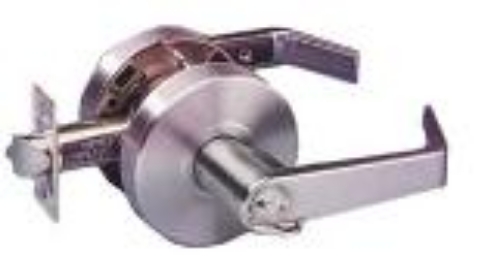

S. Parker SL8160N Grade 2 Passage Set

S. Parker SL8160N Grade 2 Passage Set

Latch bolt operated by lever from either side at all times.

Reversible, non-handed

Fits doors from 1 3/8" to 1 3/4" thick

2 3/4" backset UL listed latch bolt Standard. 2 3/8" BS available upon request

1 1/4" x 4 7/8" ANSI strike. Standard.

1/2" throw solid brass latch-bolt, UL listed, three hour fire rated

Leversets meet ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.

S. Parker leverset features and functions include: Single step roses Cold rolled steel housing Separate lever spring mechanisms help prevent sag Convertible Posts Full 5" long handles on all levers in all functions
