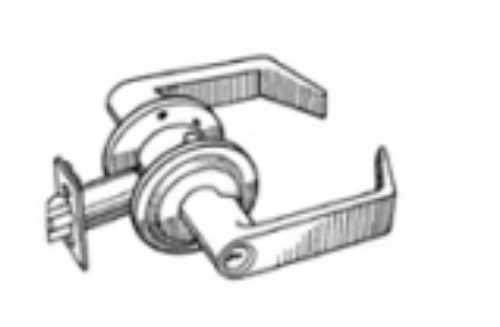

S. Parker SL7160D Grade 2 Storeroom Lock

S. Parker SL7160D Grade 2 Storeroom Lock

Deadlocking latchbolt operated by key in outsideLeveror rotating insideLever. OutsideLeveris always fixed.

Reversible, non-handed

Fits doors from 1 3/8" to 1 3/4" thick

2 3/4" backset UL listed latch bolt Standard. 2 3/8" BS available upon request

1 1/4" x 4 7/8" ANSI strike Standard.

1/2" throw solid brass latch-bolt, UL listed, three hour fire rated

Dead locking latch on all keyed leversets

6 pin solid brass SC-1 keyway, ILCO #1145, keyed to 5 pins

Special keying available (Master and Grand Master)

2 nickel silver keys

Available with clutch type lever

UL:UL listed, ADA approved Grade 2 barrier-free?

ANSI:meets ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.

S. Parker leverset features and functions include:

Two step rose Cold rolled steel housing Each lever works independently of the other Separate lever spring mechanisms help prevent sag Convertible Posts? Full 5" long handles on all levers in all functions Screws are concealed for the greatest security and appearance?
