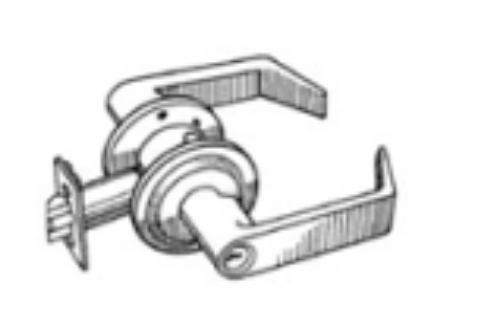

S. Parker SL7160P Grade 2 Privacy Lock

S. Parker SL7160P Grade 2 Privacy Lock

Latch bolt operated by lever from either side. Outside lever is locked by push button inside and unlocked by emergency release outside. Turning inside lever or closing door release push button.

Reversible, non-handed

Fits doors from 1 3/8" to 1 3/4" thick

2 3/4" backset UL listed latch bolt Standard. 2 3/8" BS available upon request

1 1/4" x 4 7/8" ANSI strike Standard.

1/2" throw solid brass latch-bolt, UL listed, three hour fire rated

UL:UL listed, ADA approved Grade 2 barrier-free

ANSI:meets ANSI A156.2 Series 4000 Grade standards and more than fulfill ADA requirements. The ANSI Series 4000 standard exceeds 400,000 operating cycles.

S. Parker leverset features and functions include:

Two step rose Cold rolled steel housing Each lever works independently of the other Separate lever spring mechanisms help prevent sag Convertible Posts  Full 5" long handles on all levers in all functions Screws are concealed for the greatest security and appearance
