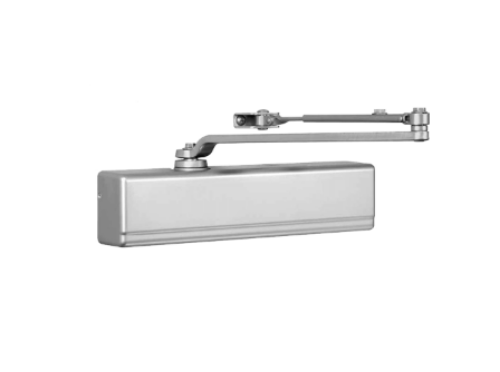

Sargent 1331 JUH Door Closer - w/ Hold Open Universal Arm

Sargent 1331 JUH Door Closer - with Hold Open Universal Arm package

Hold Open Arm: Adjustable friction holder

JUH - Packages include one extra bracket that gives the installer a choice for installation from Standard, Parallel or Top Jamb applications.

1331 Series: One-piece high strength aluminum alloy body.1-1/4" diameter piston for enhanced control. 7/16" square arm engagement for enhanced torque transmission. Heat treated rack & pinion provides longevity

Valves: Speed control valves- Separate latching, closing and sweep speed, captivated valves are easily adjusted using a standard 1/8" Allen Wrench.

Power Size: Adjustable spring power allows 1331 closers a size range of 1 through 6. They are adjusted to size 3 before leaving the factory

Cover: High impact full plastic cover secured by machine screws

Fasteners: Packed w/Thru Bolts (TB), machine and self-tapping screws provided

ANSI: Certified ANSI/BHMA  A156.4 Grade 1

UL: UL Listed and UL10C Listed

10 year limited warranty, body is date coded

Finish: EN - Sprayed Aluminum Enamel (BHMA 689), EB - Sprayed Bronze Enamel to match 10B (BHMA 690), EAB - Sprayed Brass Enamel (BHMA 696)

Model: Sargent, 1331, JUH, 1331JUH, 1331 JUH EN TB, 1331JUHENTB, 1331 JUH EB TB, 1331JUHEBTB, 1331 JUH EAB TB.
