Sargent 41 Mortise Cylinder 6-Pin - 1-1/8"

About this item

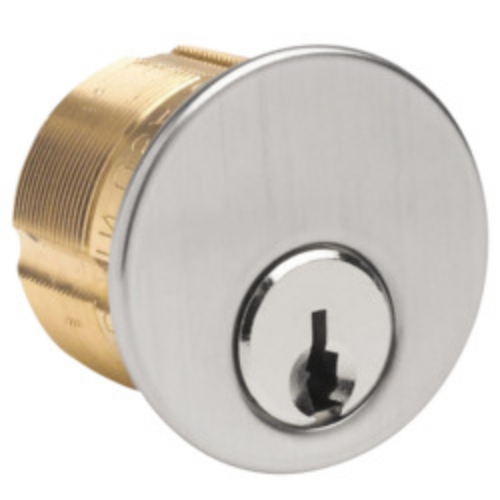

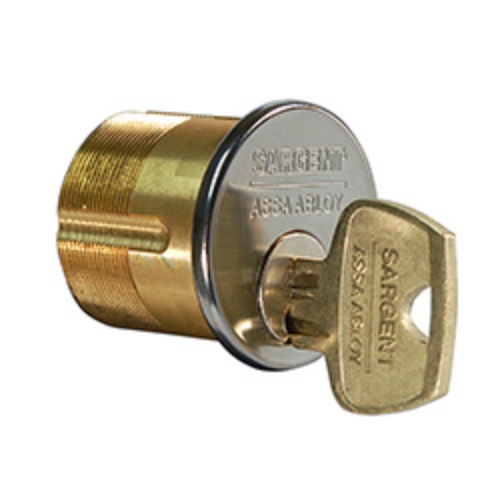

The Sargent 41 is a 6-pin mortise cylinder from Sargent's 40 Series conventional cylinder line, in the 1-1/8 inch length under the cylinder head. Solid brass construction with a brass, bronze, or stainless steel face cap available in all architectural finishes. The Sargent 41 is the standard mortise cylinder for Sargent 8200 Series mortise locks, 7800 Series mortise locks, and compatible Sargent mortise lock trim and exit device trim applications. It is also one of the most commonly specified replacement and add-on cylinders on Sargent-equipped commercial hardware schedules. American Locksets is an authorized ASSA ABLOY Sargent dealer stocking the 41 in multiple keyways and finishes with same-day shipping and free shipping on orders over $300.

Also referenced as: Sargent #41 cylinder, Sargent 41 mortise cylinder, Sargent No. 41 cylinder.

Sargent 41 Mortise Cylinder: What 1-1/8 Inch Means and When It's Correct

The 1-1/8 inch dimension on the Sargent 41 refers to the length under the cylinder head, which is the dimension that determines how the cylinder fits through the door and into the lock body. The 1-1/8 inch length is the standard specification for most Sargent mortise lock applications on 1-3/4 inch thick doors with a standard mortise lock preparation. It is the most commonly stocked cylinder length in the 40 Series line.

Sargent 40 Series mortise cylinders are available in lengths from 1-1/8 inch through 3 inches for thicker doors, extended doors, or special mortise lock case depths. The 7-pin version is available at 1-1/4 inch minimum. The 41 (1-1/8 inch) is only available in 6-pin configuration. Confirm the required length against the mortise lock case depth and door thickness before ordering.

Sargent 41 Specifications

• SKU: 41

• Series: Sargent 40 Series Conventional Mortise Cylinders

• Pin Count: 6-pin. Not available in 7-pin at this length

• Length: 1-1/8 inch under cylinder head

• Cylinder Material: Solid brass, 1-5/32 inch (29mm) diameter

• Face Cap: Brass, bronze, or stainless steel available in all architectural finishes

• Cam Included: Furnished standard with Sargent offset cam No. 13-0664. Other cam configurations available at order

• Rosette: Furnished standard with No. 97 rosette and compression spring when ordered without hardware

• Keys: All cylinders supplied 1-bitted with 2 nickel silver keys standard

• Keying: Keyed different (KD), keyed alike (KA), and master keying available

• Available Finishes: US3/605 Bright Brass, US4/606 Satin Brass, US10/612 Satin Bronze, US10B/613 Oil Rubbed Bronze, US32/629 Bright Stainless Steel, US32D/630 Satin Stainless Steel, BSP Black Suede Powder Coat

Sargent 41 Keyways

The Sargent 41 is available in Sargent's full range of conventional keyways. The most commonly specified include LA, LB, LJ, LE, LF, HF, RF, RA, HA, RG, RK, CC, CF, CG, and RE. Keyway selection must match the existing key section in the building's key system. Adding a 41 cylinder to an existing Sargent-keyed building requires specifying the correct keyway to match the change key section already in use. If the existing keyway is unknown, it can be identified by the cuts on the key or by consulting the building's key system records.

For master key systems, specify keyway, master key bitting, and change key bitting at order. Sargent's conventional cylinder platform supports standard master keying, grand master keying, and construction master keying using temporary construction cores.
