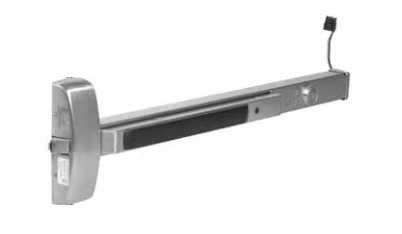

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

Product Details

Sargent 59-8888J-32D(8810)Rim Exit Device W/ Delayed Egress - Exit Only**- 42"**- Satin Stainless Steel

Self Contained Delayed Egress Device

Depressing the push rail for one second or longer initiates an alarm
LED visual notification system for easy identification of armed device; LED lights are field-selectable as red or green
Momentary or maintained egress with key OR from a remote location
Alarm disabled by key in the rail OR by remote reset
Alarm sounds for fifteen seconds during unauthorized egress; after fifteen seconds lock releases. 30 second delay available with written permission of Authority having Jurisdiction

- External inhibit features with authorized egress, card reader access and scheduled delayed egress from access control pane

80dB horn enclosed in rail assembly
Uses standard electric hinge - no special power transfer required
Guarded & monitored latch and rail standard
Power Requirements: 24VDC regulated/filtered power supply

For doors: 37" through 42" (82cm through 91cm)

Device & trim sold separately; easy to mix and match
Designed for standard width stile applications on wood and metal doors
Single and double door applications with a mullion

For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness

MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts

Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes

ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)

RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes

HandNon-handed

LatchboltStainless steel, 3/4" (19mm) throw

Strike649 Strike supplied standard for panic & fire rated openings

Devices are ANSI A156.3 - Grade 1
UL Fire and Panic listed
Device is non-handed
ANSI/BHMA architectural finishes

Model:Sargent 59-8888J, 59-8810J, 59-8888-J-32D , 598888J32D

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

Name: Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel
SKU: 59-8888J-32D
Price: 2882.72 USD
Availability: InStock

SKU: 59-8888J-32D

In Stock

Chat

$2,882.72

About this item

he 59- Self Contained Delayed Egress Device is Commonly used in schools, nursing homes, shopping centers and libraries, delayed egress exit devices provide a means of monitoring egress to prevent unauthorized exit. When the exit device push pad is depressed, the 59-80 Series delayed egress exit device sounds an alarm from the rail to alert personnel that someone is attempting egress. The exit device stays secure for fifteen seconds, allowing time for personnel to respond.

Momentary release for egress (adjustable for 5, 10, 20 or 40 seconds) is provided by a cylinder on the rail or from a remote location. When the fire alarm system is activated (if connected), the exit device disarms and allows immediate egress.

Resources

***80 Series Catalog***

Sargent 59-8888J-32D(8810)Rim Exit Device W/ Delayed Egress - Exit Only**- 42"**- Satin Stainless Steel

Self Contained Delayed Egress Device

Depressing the push rail for one second or longer initiates an alarm
LED visual notification system for easy identification of armed device; LED lights are field-selectable as red or green
Momentary or maintained egress with key OR from a remote location
Alarm disabled by key in the rail OR by remote reset
Alarm sounds for fifteen seconds during unauthorized egress; after fifteen seconds lock releases. 30 second delay available with written permission of Authority having Jurisdiction

- External inhibit features with authorized egress, card reader access and scheduled delayed egress from access control pane

80dB horn enclosed in rail assembly
Uses standard electric hinge - no special power transfer required
Guarded & monitored latch and rail standard
Power Requirements: 24VDC regulated/filtered power supply

For doors: 37" through 42" (82cm through 91cm)

Device & trim sold separately; easy to mix and match
Designed for standard width stile applications on wood and metal doors
Single and double door applications with a mullion

For DoorsWood or metal. 1-3/4" (44 mm) minimum thickness

MountingSupplied standard with wood and machine screws Available with through-bolts and mortise nuts

Chassis CoverCold drawn stainless steel, brass or bronze with ANSI/BHMA Finishes

ChassisNonferrous alloy (Panic) Ferrous alloy (Fire Rated)

RailsRoll Formed Stainless Steel, Brass or Bronze with ANSI/BHMA Finishes

HandNon-handed

LatchboltStainless steel, 3/4" (19mm) throw

Strike649 Strike supplied standard for panic & fire rated openings

Devices are ANSI A156.3 - Grade 1
UL Fire and Panic listed
Device is non-handed
ANSI/BHMA architectural finishes

Model:Sargent 59-8888J, 59-8810J, 59-8888-J-32D , 598888J32D

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

Product code: 59-8888J-32D

In Stock

$2,882.72

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

Product code: 59-8888J-32D

In Stock

$2,882.72
