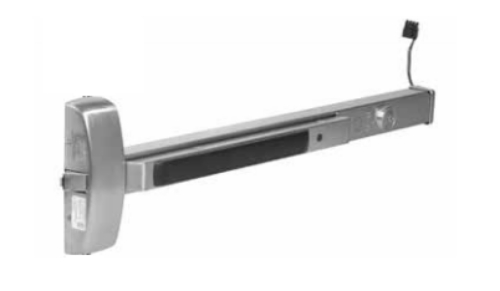

Sargent 59-8888J-32D (8810) Rim Exit Device W/ Delayed Egress - Exit Only - 42" - Satin Stainless Steel

About this item

The Sargent 59-8888J-32D is an 8810 Series wide stile rim exit device with Electroguard self-contained delayed egress, exit only function, 42-inch rail length, in 32D Satin Stainless Steel finish. Part of the Sargent 80 Series exit device platform, which exceeds ANSI/BHMA Grade 1 requirements for cycle and strength. American Locksets is an authorized ASSA ABLOY Sargent dealer stocking the 59-8888J-32D with same-day shipping and free shipping on orders over $300.

Sargent 59 Electroguard: How Delayed Egress Works

The 59- prefix in the part number identifies the Sargent Electroguard self-contained delayed egress system. Delayed egress exit devices are required by code in specific occupancy types, including nursing homes, schools, shopping centers, libraries, and other facilities where monitoring unauthorized egress is a life safety and security requirement under NFPA 101 Special Locking Arrangements.

When the push rail is depressed on this exit device and held for approximately 2 seconds, the Electroguard initiates an irreversible alarm from the rail. The device then stays secure for 15 seconds, allowing personnel to respond and investigate. After the 15-second delay, the device releases for egress. The alarm sounds throughout the delay period and cannot be silenced mid-cycle by releasing the push rail. Once initiated, the alarm must be reset with a key in the rail assembly.

A nuisance delay is field adjustable to either 0 seconds (immediate alarm on depression) or 1 second (slight delay before alarm initiates). This adjustment prevents accidental alarm initiation from casual touchpad contact.

When the building fire alarm system is activated and connected to the Electroguard, a relay in the delayed action circuit voids the 15-second delay entirely, providing immediate egress for evacuation. This is the required NFPA 101 behavior for all delayed egress installations.

Sargent 59-8888J-32D (8810) Specifications

• SKU: 59-8888J-32D

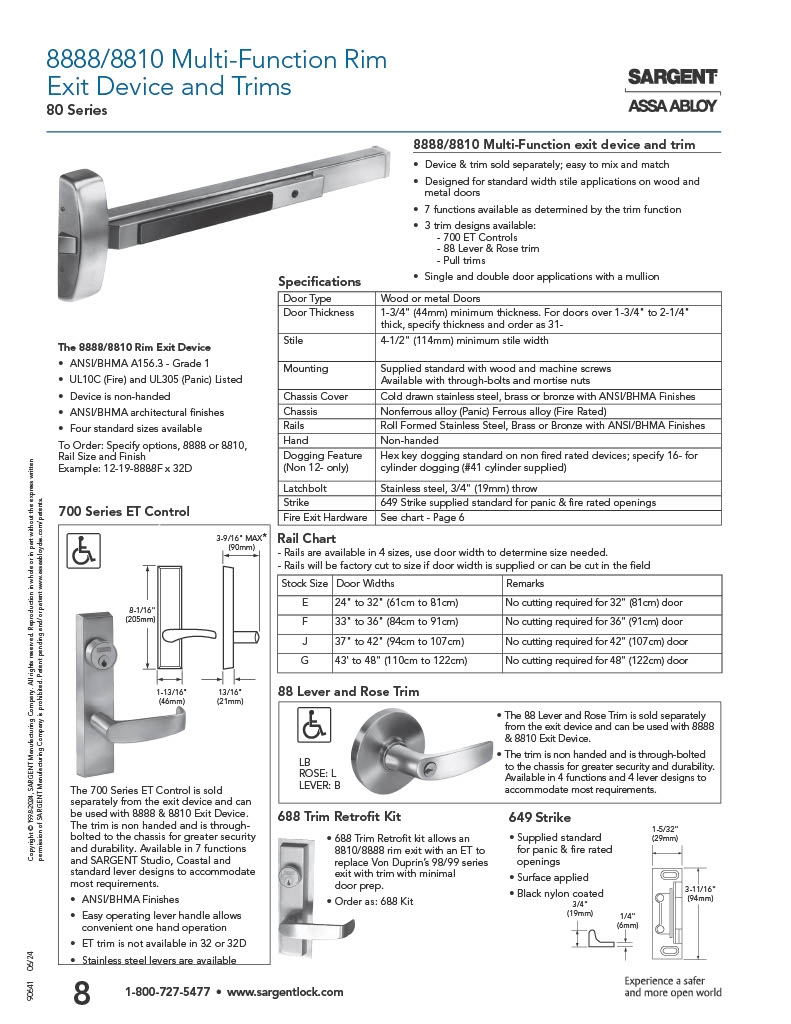

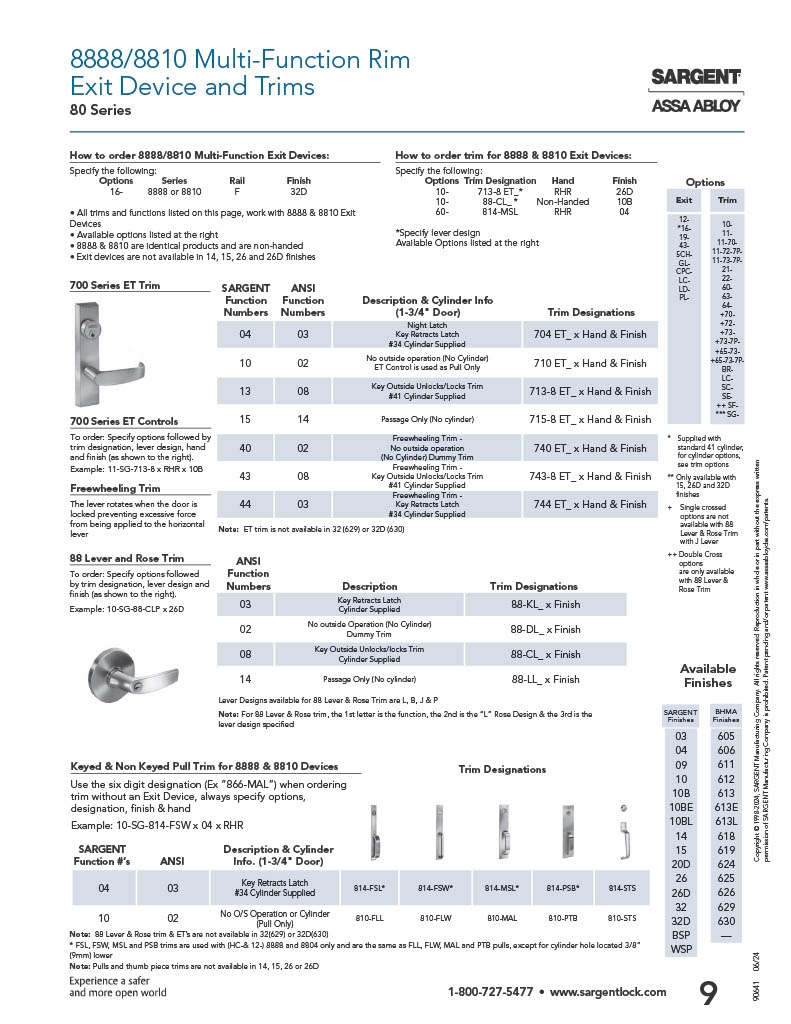

• Series: Sargent 80 Series, 8888/8810 Wide Stile Rim Exit Device

• Function: 8810, Exit Only (ANSI Function 10, No outside operation, no cylinder on device body). Outside trim sold separately

• Delayed Egress: 59 Electroguard self-contained delayed egress. 15-second delay standard. Initiates irreversible alarm after 2-second rail depression. Key in rail provides momentary or maintained egress release

• Rail Length: 42 inch. For door widths accommodated by 42-inch rail

• Finish: 32D Satin Stainless Steel (inside and outside finish)

• Lever Design: J lever style

• Certifications: Exceeds ANSI/BHMA Grade 1 for cycle and strength. UL listed for panic exit hardware and fire exit hardware. Conforms to NFPA 101 Special Locking Arrangements for delayed egress applications

• Operating Voltage: 0.5 amp maximum at 24VDC regulated/filtered

• Latch Bolt: Stainless steel, 3/4 inch throw

• Pushbar Projection: Neutral position 3 inch from door face. Depressed position 2-1/8 inch

• Device Centerline from Finished Floor: 41 inch standard

• Latchbolt Monitor: Available (LX option). Monitors latch bolt status

• Door Status Switch: Available for forced-open monitoring. Drives remote horn, lamp, or monitoring device when door is forced

• Fire Alarm Integration: Fire alarm input voids 15-second delay on alarm activation. Allows immediate egress

• Remote Relay: SPDT relay, 1A at 24VDC, for external alarm indication

• LED Indicators: Red and green LEDs indicate armed/disarmed status and diagnostic functions

• Construction: Modular construction with few moving parts. Maintenance-free
