Sargent 8273 Electromechanical Mortise Lock - Double Cylinder - Fail Secure

Sargent 8273Electromechanical Mortise Lock - Double Cylinder - Fail Secure

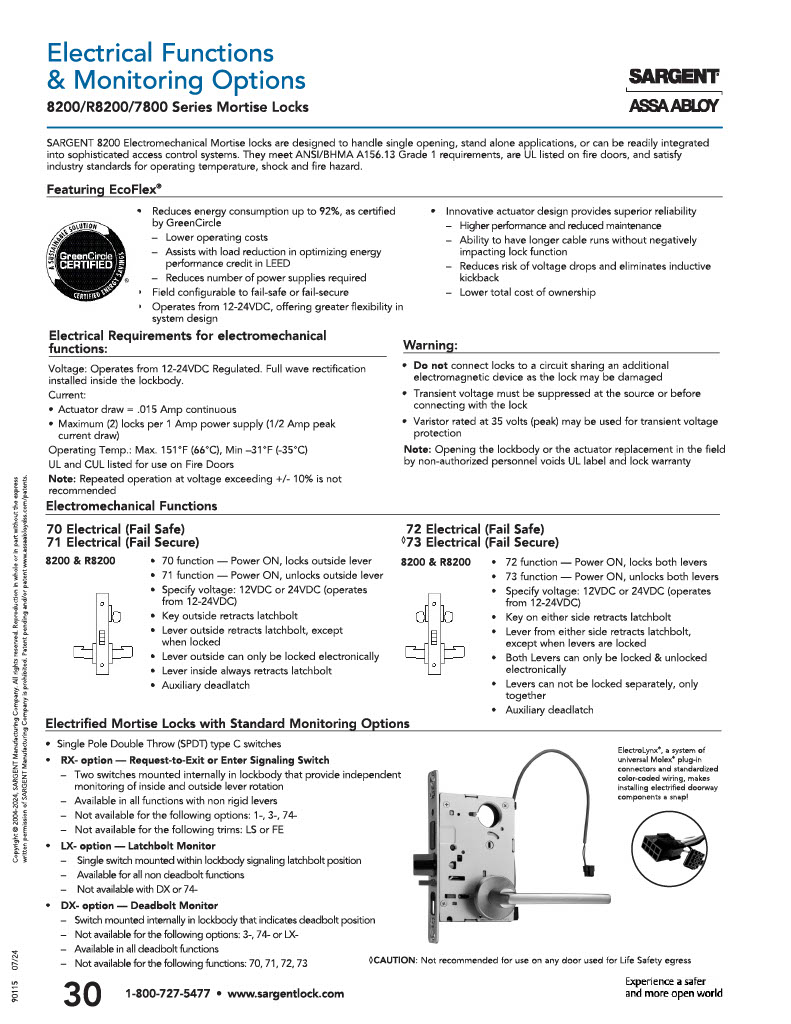

Power ON, unlocks both levers

• Power ON, unlocks both levers

• Specify voltage: 12VDC or 24VDC (operates from 12-24VDC)

• Key on either side retracts latchbolt

• Lever from either side retracts latchbolt, except when levers are locked

• Both Levers can only be locked & unlocked electronically

• Levers can not be locked separately, only together

• Auxiliary deadlatch

Ecoflex electrified mortise locks dramatically reduce energy consumption, resulting in lower operating costs and fewer power supplies. In addition, they offer a reliable, flexible and versatile locking solution, with a common lock for 12 – 24V applications, which can easily be field configured to fail-safe or fail-secure operation

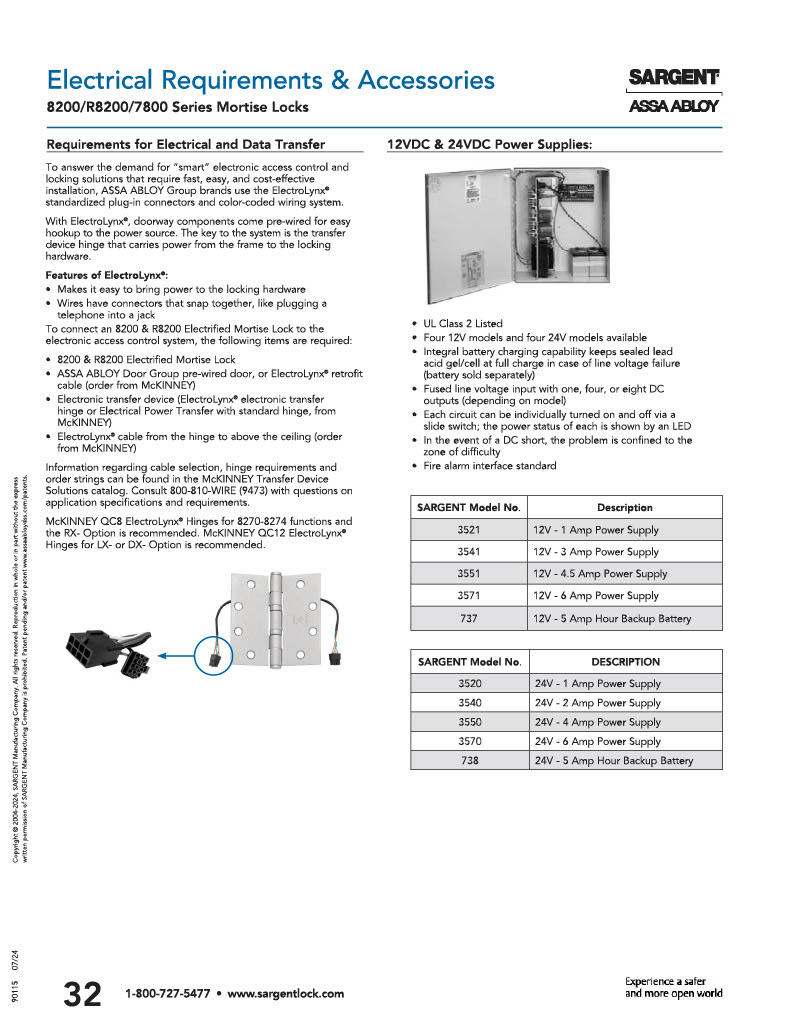

Current: - Actuator draw = .015 Amp continuous - Maximum (2) locks per 1 Amp power supply (1/2 Amp peak current draw)

Operating Temp.: Max. 151F (66C), Min –31F (-35C)

Note: Repeated operation at voltage exceeding +/- 10% is not recommended

• Do not connect locks to a circuit sharing an additional electromagnetic device as the lock may be damaged

• Transient voltage must be suppressed at the source or before connecting with the lock

• Varistor rated at 35 volts (peak) may be used for transient voltage protection

Note: Opening the lockbody or the actuator replacement in the field by non-authorized personnel voids UL label and lock warranty

Door Thickness: 1-3⁄4" (44mm) thick standard.

Backset: 2-3⁄4" (70mm) only

Lock Case: 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109 )

Outside Front Plate: Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)

Springs: High carbon steel

Hubs for Levers: Cold forged steel

Latchbolt: Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch

Auxiliary Deadlatch: Stainless steel, non-handed

Deadbolt: One-piece hardened stainless steel, with 1" (25mm) projection

Strike: Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed

Keys: Two, nickel silver

Cylinder: Brass, size #41 (1-1/8) standard except for Freewheeling, size #46 (1-3/4) LA standard keyway

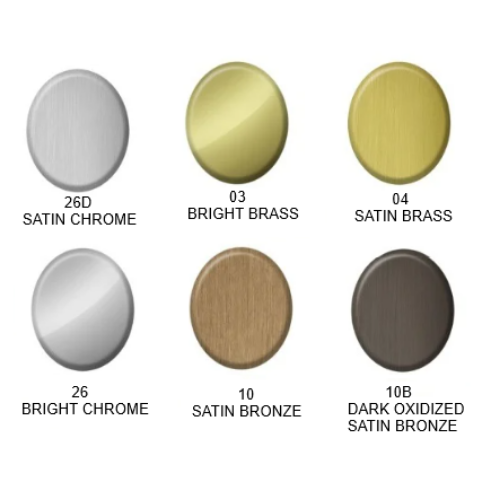

Finishes: 03 - Bright Brass, 04 - Satin Brass, 10 - Satin Bronze, 10B - Oil Rubbed Bronze, 26 - Bright Chrome, 26D - Satin Chrome, 32 - Bright Stainless, 32D - Satin Stainless

Stile: 4-1/2" (114mm) minimum stile for 8200, 4-3/4" (121mm) minimum stile for electrical function locks

Door Prep: ANSI A115.1 modified per template

Warranty: 10 year limited warranty, 2 year limited warranty on electrified locks

Warranty limited to replacement of Lockbody and/or components.

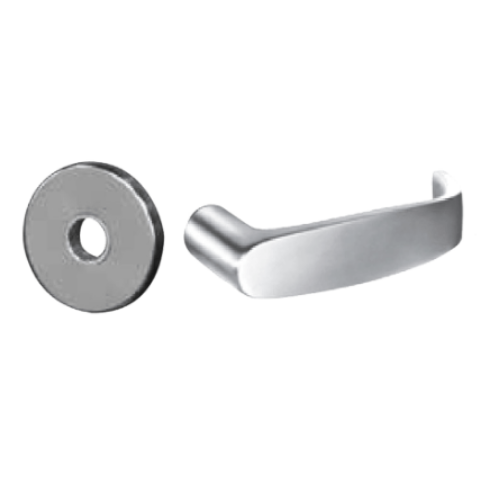

Model: Sargent 8273, LNB, LNL, LNP, LNJ,03, 04, 10, 10B, 26, 26D, 8273-LNB, 8273LNB, 8273-LNB-03, 8273LNB03, 8273-LNB-04, 8273LNB04, 8273-LNB-10, 8273LNB10, 8273-LNB-10B, 8273LNB10B, 8273-LNB-26, 8273LNB26, 8273-LNB-26D, 8273LNB26D, 8273-LNL, 8273LNL, 8273-LNL-03, 8273LNL03, 8273-LNL-04, 8273LNL04, 8273-LNL-10, 8273LNL10, 8273-LNL-10B, 8273LNL10B, 8273-LNL-26, 8273LNL26, 8273-LNL-26D, 8273LNL26D,8273-LNJ, 8273LNJ, 8273-LNJ-03, 8273LNJ03, 8273-LNJ-04, 8273LNJ04, 8273-LNJ-10, 8273LNJ10, 8273-LNJ-10B, 8273LNJ10B, 8273-LNJ-26, 8273LNJ26, 8273-LNJ-26D, 8273LNJ26D, 8273-LNP, 8273LNP, 8273-LNP-03, 8273LNP03, 8273-LNP-04, 8273LNP04, 8273-LNP-10, 8273LNP10, 8273-LNP-10B, 8273LNP10B, 8273-LNP-26, 8273LNP26, 8273-LNP-26D, 8273LNP26D

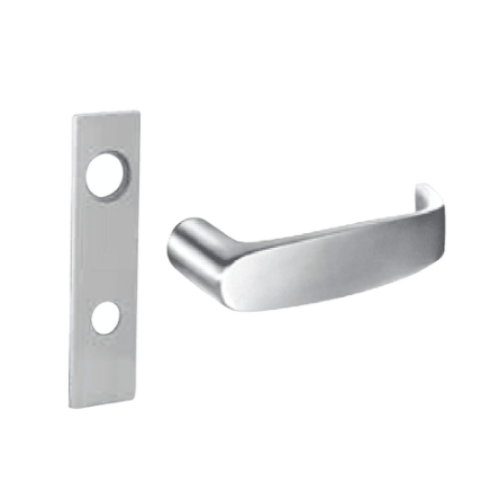

8273-LW1B, 8273LW1B, 8273-LW1B-03, 8273LW1B03, 8273-LW1B-04, 8273LW1B04, 8273-LW1B-10, 8273LW1B10, 8273-LW1B-10B, 8273LW1B10B, 8273-LW1B-26, 8273LW1B26, 8273-LW1B-26D, 8273LW1B26D, 8273-LW1L, 8273LW1L, 8273-LW1L-03, 8273LW1L03, 8273-LW1L-04, 8273LW1L04, 8273-LW1L-10, 8273LW1L10, 8273-LW1L-10B, 8273LW1L10B, 8273-LW1L-26, 8273LW1L26, 8273-LW1L-26D, 8273LW1L26D,8273-LW1J, 8273LW1J, 8273-LW1J-03, 8273LW1J03, 8273-LW1J-04, 8273LW1J04, 8273-LW1J-10, 8273LW1J10, 8273-LW1J-10B, 8273LW1J10B, 8273-LW1J-26, 8273LW1J26, 8273-LW1J-26D, 8273LW1J26D, 8273-LW1P, 8273LW1P, 8273-LW1P-03, 8273LW1P03, 8273-LW1P-04, 8273LW1P04, 8273-LW1P-10, 8273LW1P10, 8273-LW1P-10B, 8273LW1P10B, 8273-LW1P-26, 8273LW1P26, 8273-LW1P-26D, 8273LW1P26D

Certification Compliance: ANSI/BHMA: Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims. Note: Removable Core and SFIC Cylinders do not meet Security Grade 1 requirements.

ADA: Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities

UL  UL and UL Listed to Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing

Positive Pressure: Meets positive pressure requirements UL 10C and UBC 7-2 (1997)

California: California State Reference Code (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2 (13mm) of door face
