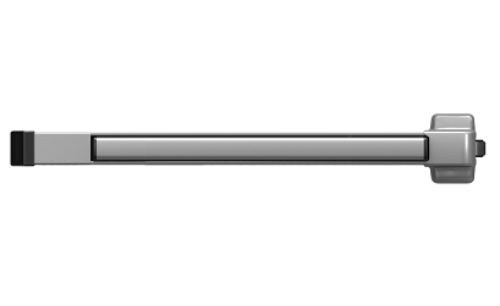

Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

Product Details

Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

Device Handing: Non-Handed

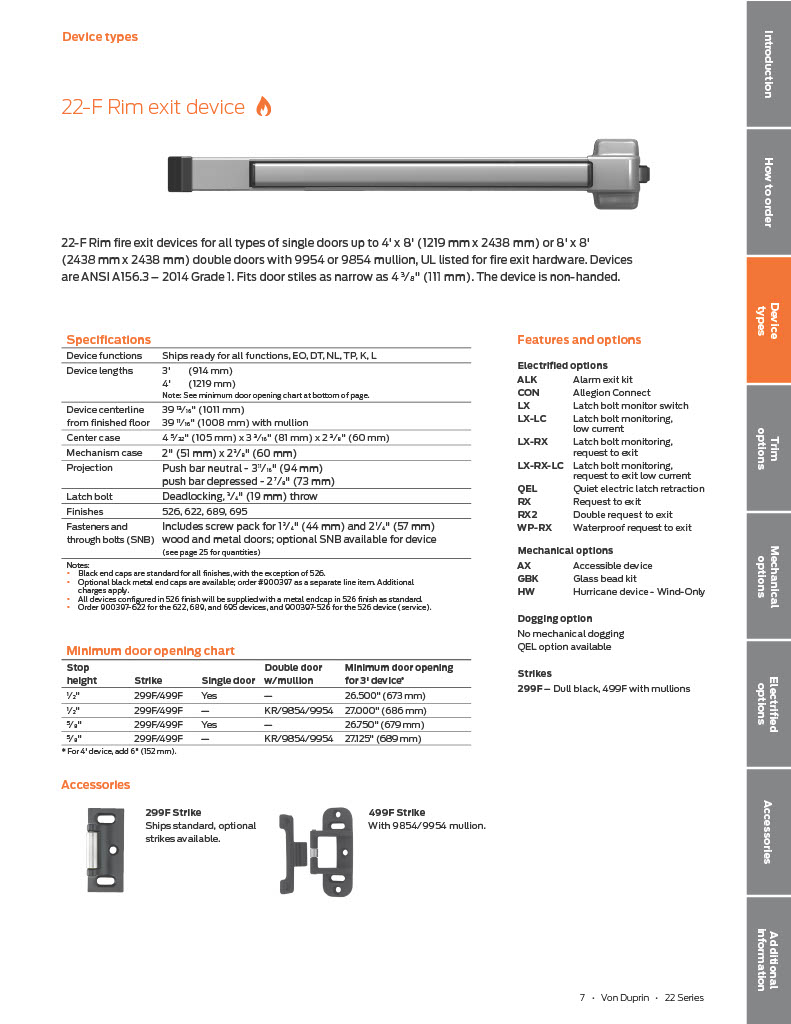

Device Lengths: 3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog)

Finishes: SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike: 299 strike Dull Black

No mechanical dogging

Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device. Sex bolts are required on wood fire doors.

Latch Bolt: Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor: 39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 4 3/8" (111mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22EO-F, SP28, SP313, 22EOFSP28 , 22EOFSP313

Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

SKU: 22EOF

In Stock

Finish *

Size *

$542.08

$847.00

You saved $304.92

About this item

For all types of single and double doors with mullion, UL listed for Panic Exit Hardware, ClickHere For the 22 Series Exit device Trims.

Resources

Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

Device Handing: Non-Handed

Device Lengths: 3' (914mm), 4' (1219mm). see page 13 (22 Series Catalog)

Finishes: SP28 - Sprayed Aluminum (689), SP313 - Sprayed Dark Bronze (695)

Strike: 299 strike Dull Black

No mechanical dogging

Fasteners: Includes 1 3/4" (19mm) 2 1/4" (57mm) Wood & Metal Doors; Optional SNB available for device. Sex bolts are required on wood fire doors.

Latch Bolt: Deadlocking, 3/4" (19mm) throw

Device Centerline from Finished Floor: 39 13/16" (1011mm) at center of device; 39 11/16" (1008mm) with Mullion

Fits door stiles as narrow as 4 3/8" (111mm)

All 22 series exit devices are UL listed for Panic Hardware or Fire Hardware, and are certified to ANSI A156.3, 2001, Grade1.

Model:Von Duprin 22EO-F, SP28, SP313, 22EOFSP28 , 22EOFSP313

22EOF
Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

Product code: 22EOF

In Stock

$847.00

$542.08

22EOF
Von Duprin 22EO-F Rim Touch Bar Exit Device - Exit only - Fire Rated

Product code: 22EOF

In Stock

$847.00

$542.08
