Sargent 9898 Rim Exit Device - 44"

Picture of Sargent 9898 Rim Exit Device - 44"
Picture of Sargent 9898 Rim Exit Device - 44"
Picture of Sargent 9898 Rim Exit Device - 44"
Picture of Sargent 9898 Rim Exit Device - 44"
naxt
prev

Product Details

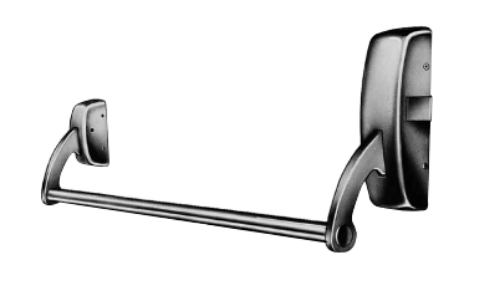

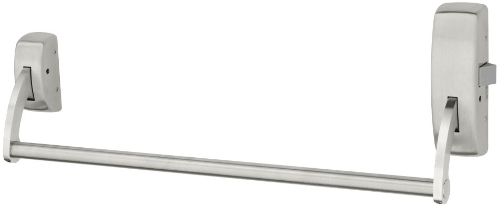

Sargent 9898 Rim Exit Device - 44"

The 9898 Multi-fuction Rim Exit Device is the perfect stocking device

  • Trim is non-handed

  • Device is field reversible

  • Cross bars can easily be cut to length in the field

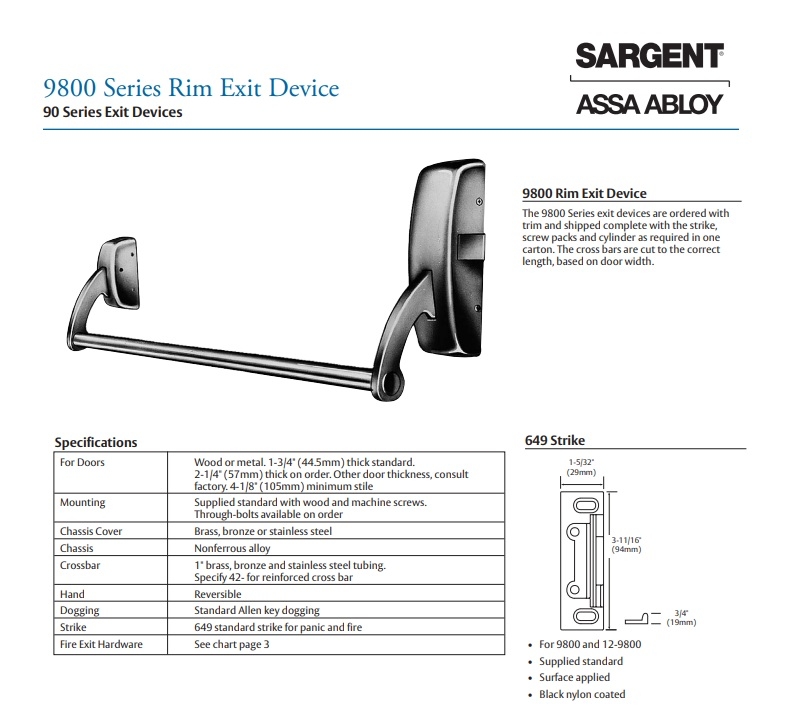

For Doors Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile

Mounting Supplied standard with wood and machine screws.

Chassis Cover Brass, bronze or stainless steel

Chassis Nonferrous alloy

Crossbar 1" brass, bronze and stainless steel tubing. **

Hand Non-handed

Dogging Standard Allen key dogging

Strike 649 Strike

Model: Sargent 9898, 9898-32D, 9898-10B, 989832D, 989810B,

Sargent 9898 Rim Exit Device - 44"

SKU: 9898

In Stock
Picture for manufacturer Sargent
icon Chat

$1,602.90

Finish *

32D - Satin Stainless - Steel
32D - Satin Stainless - Steel
10B - Oil Rubbed Bronze [+$252.72]
10B - Oil Rubbed Bronze [+$252.72]

About this item

The 9898 Reversible Rim Exit Device can be used with one of four functions determined by the trim, which is sold separately. Cross bars can easily be cut to length in the field. There are available trim designs which are non-handed.

Resources

Sargent 9898 Rim Exit Device - 44"

The 9898 Multi-fuction Rim Exit Device is the perfect stocking device

  • Trim is non-handed

  • Device is field reversible

  • Cross bars can easily be cut to length in the field

For Doors Wood or metal. 1-3/4" (44.5mm) thick standard. 2-1/4" (57mm) thick on order. Other door thickness, consult factory. 4-1/8" (105mm) minimum stile

Mounting Supplied standard with wood and machine screws.

Chassis Cover Brass, bronze or stainless steel

Chassis Nonferrous alloy

Crossbar 1" brass, bronze and stainless steel tubing. **

Hand Non-handed

Dogging Standard Allen key dogging

Strike 649 Strike

Model: Sargent 9898, 9898-32D, 9898-10B, 989832D, 989810B,
