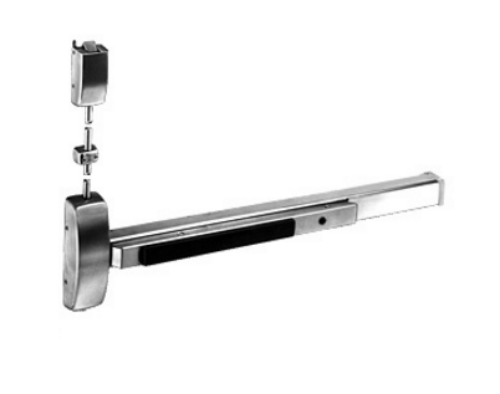

Sargent NB-8710G-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 48" - Satin Stainless Steel
Product Details

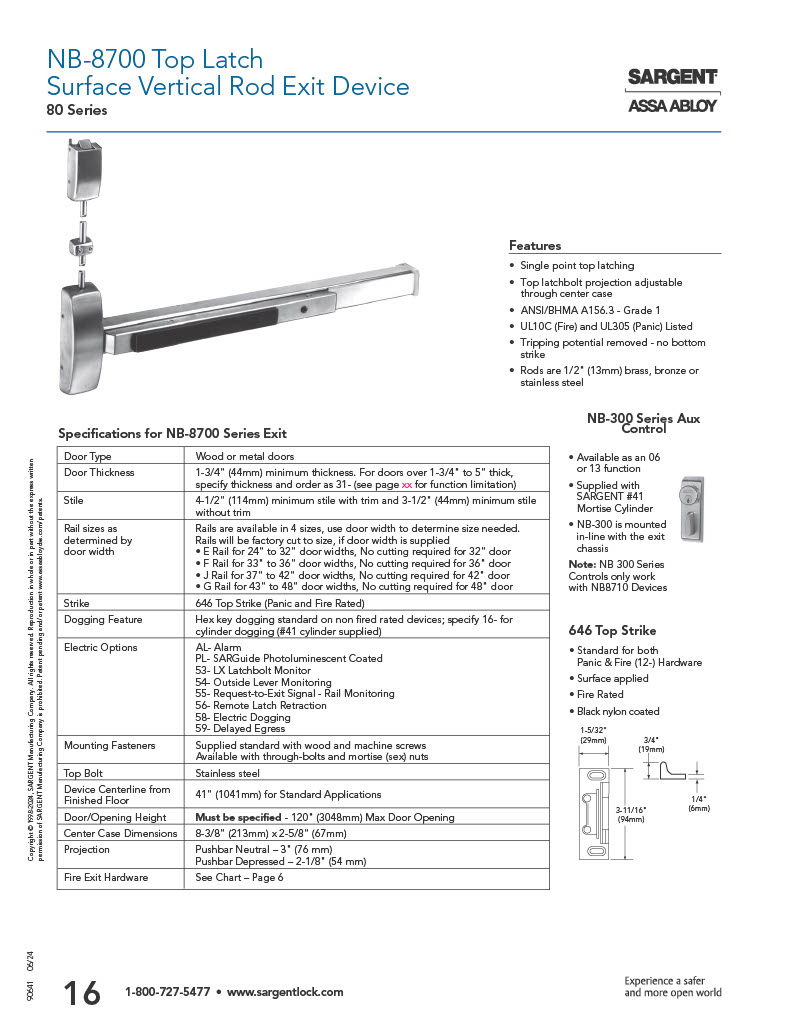

Sargent NB-8710G-32D Top Latch Surface Vertical Rod Exit Device - Exit Only - 48" -Satin Stainless Steel
Door Width: for 43" to48" door widths, No cutting required for 32" door
Single point top latching Top latchbolt projection adjustable through center case Devices are ANSI A156.3 - Grade 1 UL Fire and Panic listedTripping potential removed - no bottom strike Rods are 1/2" (13mm) brass, bronze or stainless steelDoor TypesWood or metal 1 3/4" (44mm) minimum thickness
Strike646 Top Strike (Panic and Fire Rated)
Dogging FeatureHex key dogging standard on non fired rated devices; specify 16- for cylinder dogging (#41 cylinder supplied)
Mounting FastenersSupplied standard with wood and machine screws Available with through-bolts and mortise (sex) nuts
Top BoltStainless steel
Device Centerline from Finished Floor 41" (1041 mm) for Standard Applications
Center Case Dimensions8-3/8" (213mm) x 2-5/8" (67mm)
ProjectionPushbar Neutral – 3" (76mm) Pushbar Depressed – 2-1/8" (54mm)
Model:Sargent NB-8710-G, NB8710G, NB8710G-32D, NB-8710-G-32D,
