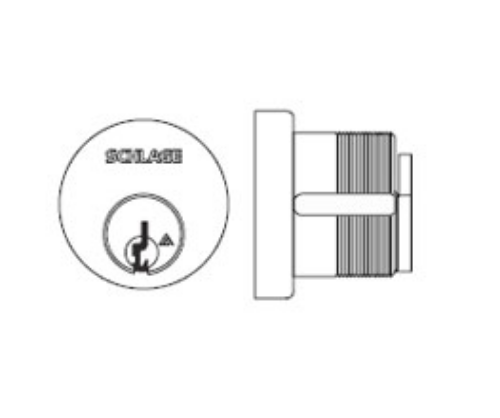

Schlage 30-001C 134 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/4"

About this item

Schlage 30-001C 134 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/4"

cylinder with compression ring & spring

C - Keyway

Certification BHMA certified to ANSI A156.5, 2001, Grade 1 Operational

Standard Cylinder Solid Brass 6 pin plugs and shells. Mortise cylinders utilize a two piece Stainless Steel sintered housing secured by 2 Torx® screws.

Furnished Keyed Different (KD) with two 6 pin nickel silver keys

For all Schlage mortise series lock functions except L9060p Outside and L9485, L9486 Hotel Functions

Model:  30001C-134-626,  30001C134626, 30001C134-626

Resources

• Schlage Cylinder Catalog
