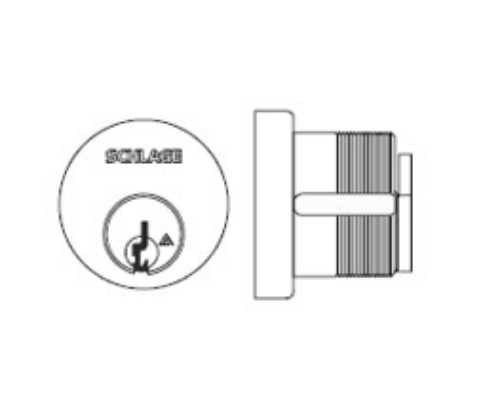

Schlage 30-001C 138 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/8"

About this item

Schlage 30-001C 138 Mortise Cylinder For Schlage L Series Mortise Locks W/ Rose Trim - 1-3/8"

cylinder with compression ring & spring

C - Keyway

Certification BHMA certified to ANSI A156.5, 2001, Grade 1 Operational

Standard Cylinder Solid Brass 6 pin plugs and shells. Mortise cylinders utilize a two piece Stainless Steel sintered housing secured by 2 Torx® screws.

Furnished Keyed Different (KD) with two 6 pin nickel silver keys

For all Schlage mortise series lock functions except L9060p Outside and L9485, L9486 Hotel Functions

Model: 30001C-118-613, 30001C-118-605, 30001C-118-606, 30001C-118-612,  30001C-118-625, 30001C-118-626, 30001C-118-630, 30001C118-613, 30001C-605, 30001C118606, 30001C118612, 30001C-625, 30001C118626, 30001C118-630,

Resources

• Schlage Cylinder Catalog
