Schlage A25D Levon (LEV) Grade 2 Backplate Exit Cylindrical Lock

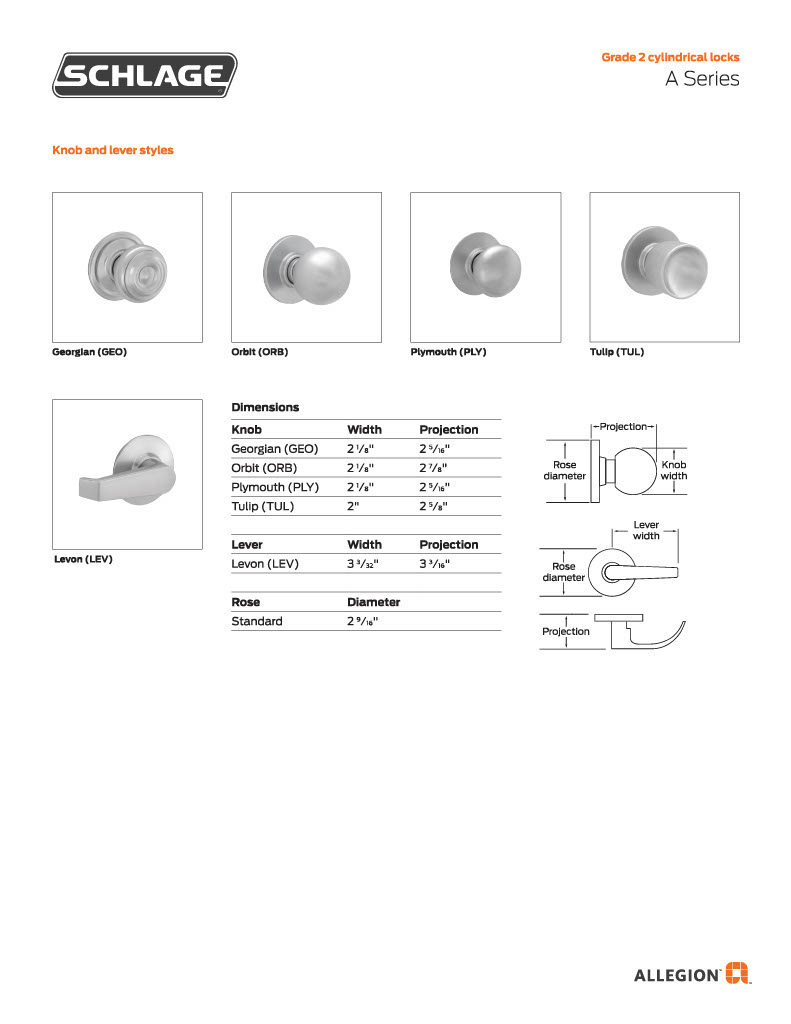

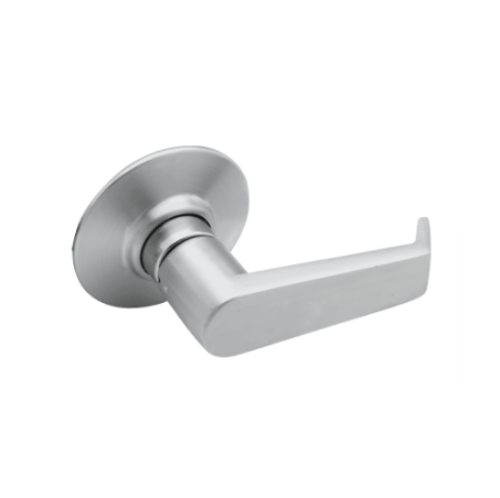

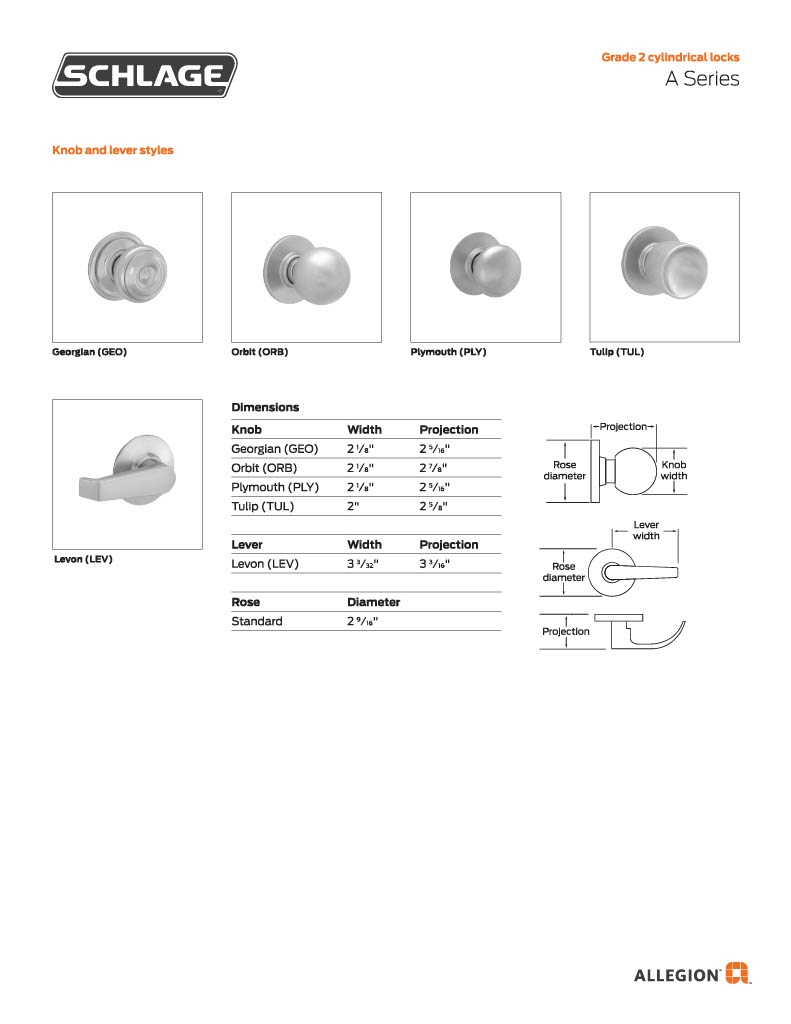

Schlage A25D Levon (LEV) Exit Lock

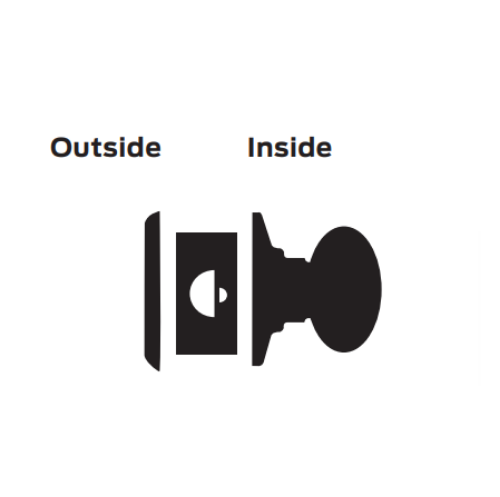

Blank plate outside. Inside knob always unlocked.Inside knob is always free for immediate egress.

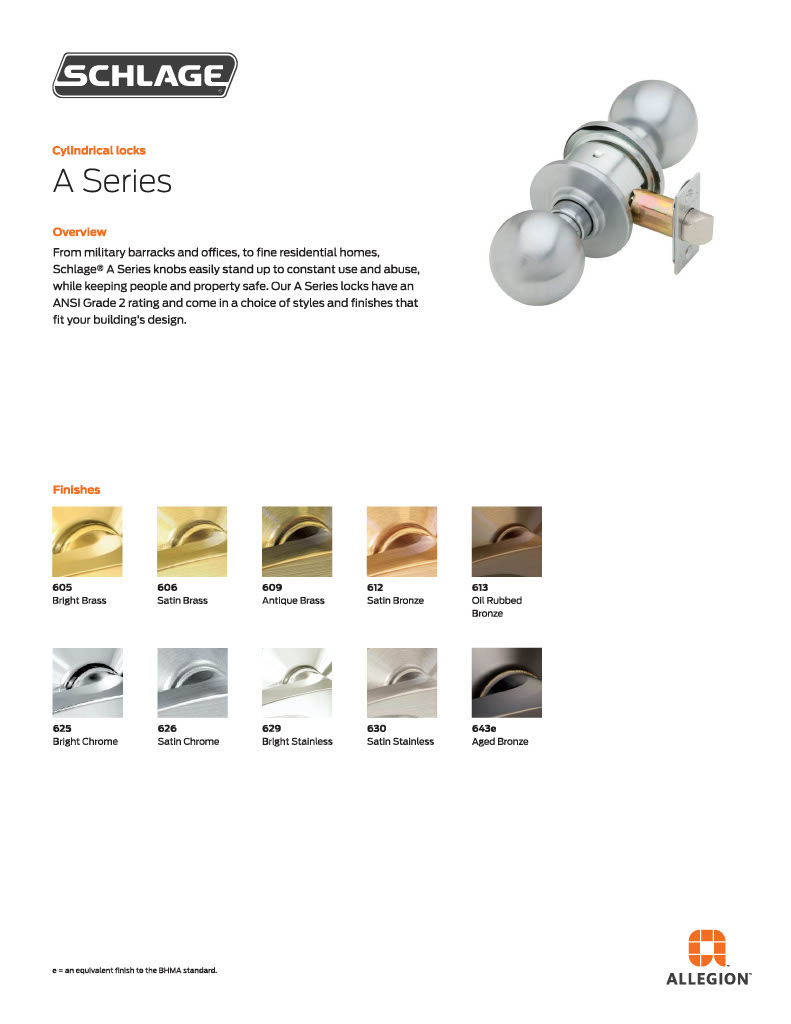

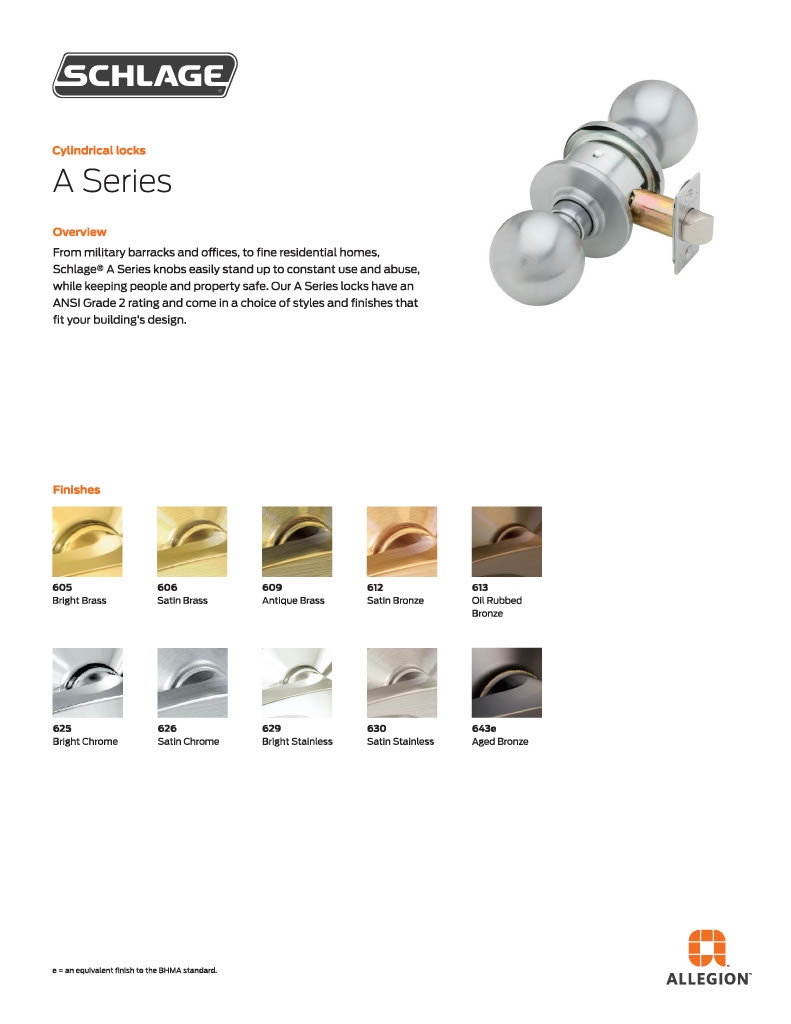

Finishes:626 - Satin Chrome, 613 - oil Rubbed Bronze Applications: Heavy duty residential, light and medium duty commercial.

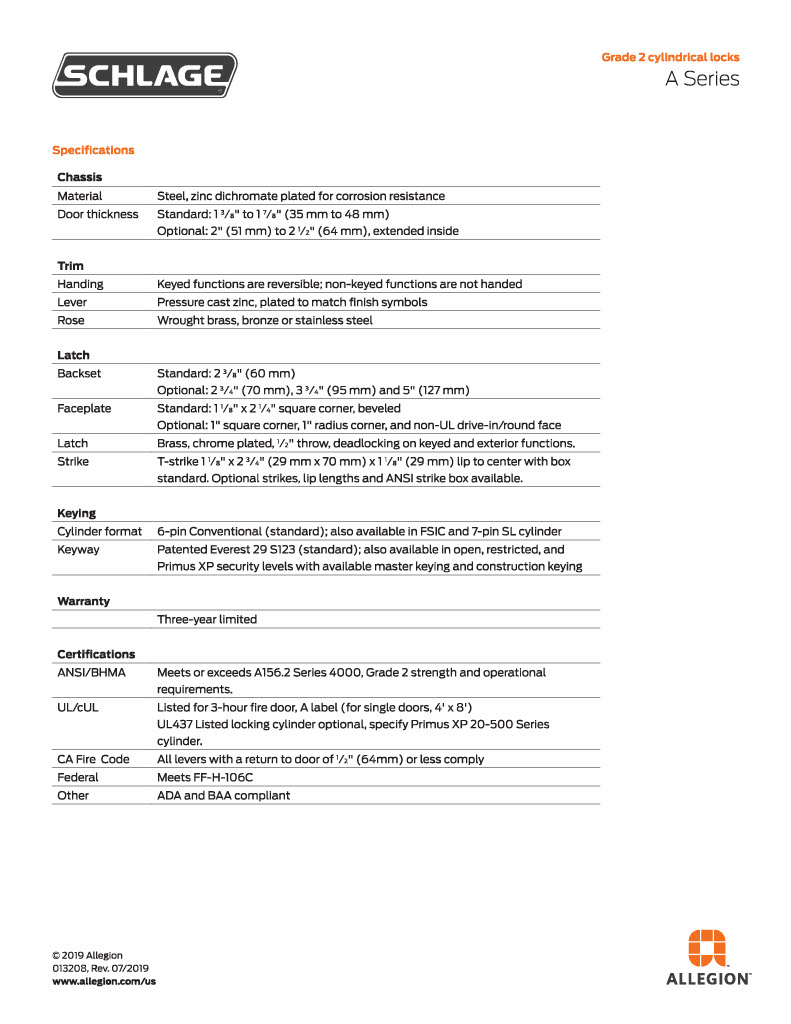

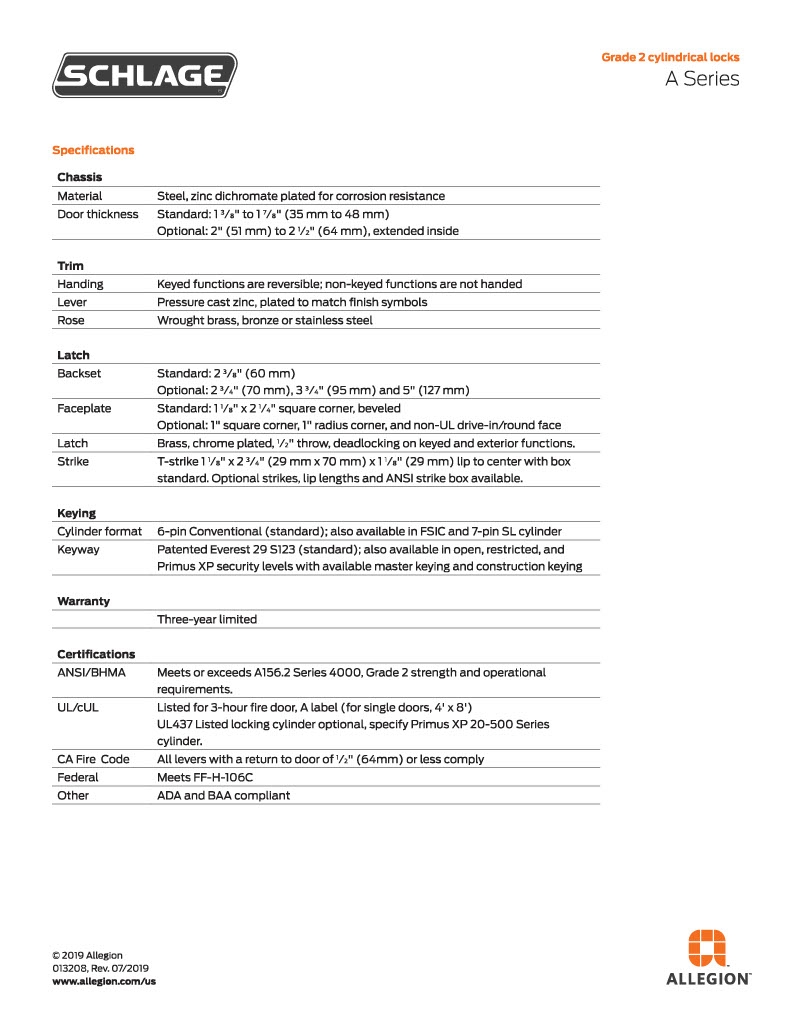

Certifications:ANSI 156.2, 1996, Series 4000, Grade 2. UL Listed for all functions up to 3 hours.

Door Range:1-3/8" -1-7/8" (35 mm-48 mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) standard.

Latches:1" x 2-1/4" (25 mm x 57 mm), 1/2" (13 mm) throw standard.

Strikes:Square corner. 1-1/8" x 2-3/4" with 1-1/8" lip T-strike, furnished with dust box, standard.

Warranty:Commercial: three-year limited.Residential: Full mechanical lifetime.

Model:Schlage A25, A25D, A25DLEV,  A25DLEV613, A25DLEV626

Exposed Trim:Wrought brass, bronze, or stainless steel. Lever is zinc based, plated to match BHMA symbols.

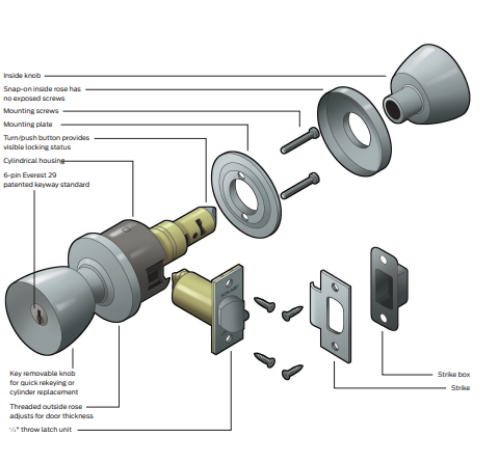

Cylindrical lock housing. Cold rolled steel, corrosion treated for normal atmospheric conditions

Key removable outside knobs for easy cylinder replacement

Solid brass 6-pin cylinders

No exposed mounting screws

Meets or exceeds 400,000 cycle ANSI Grade 2 requirements
