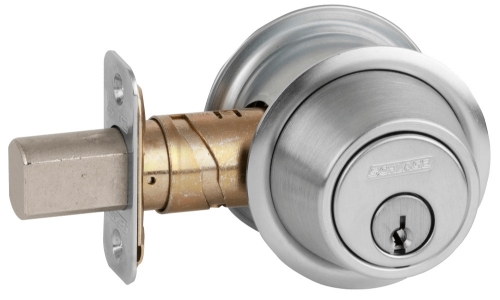

Schlage B560 Grade 2 Single Cylinder Deadbolt, Keyed Outside/Thumbturn Inside

Schlage B560 Single Cylinder Deadbolt ANSI: E0152

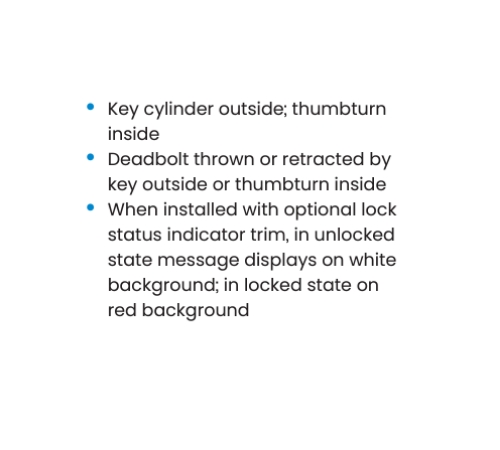

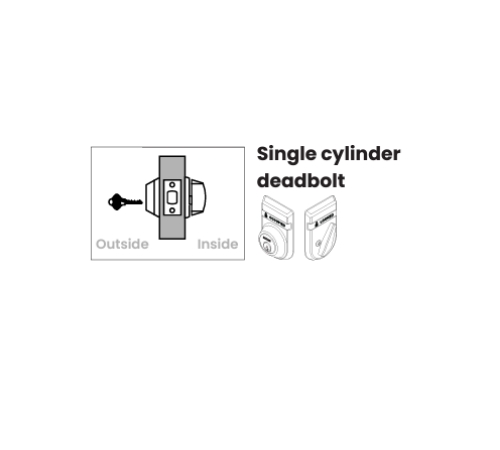

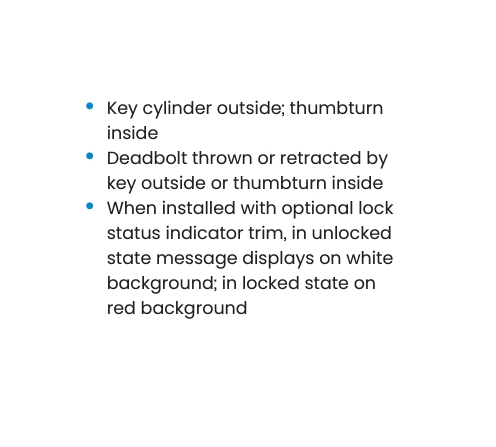

Deadbolt thrown or retracted by key outside or thumbturn inside.

Applications: Auxiliary and primary locking for commercial and residential buildings

Handing: Locksets are non-handed.

Door range: 1-3/8to 1-3/4thick (35 mm to 44**mm) standard.

Backset: 2-3/8" (60 mm) or 2-3/4" (70 mm) adjustable backset standard.

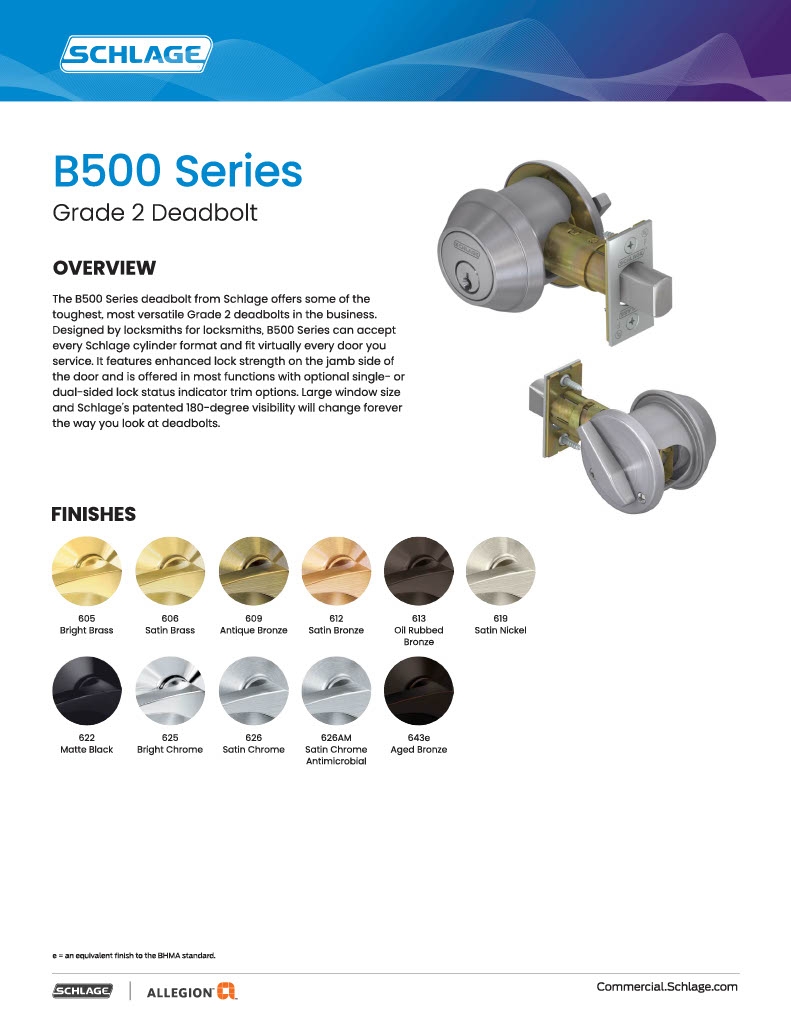

Deadbolts and Strikes:B500 Series deadbolts and strikes have brass bronze or steel faceplates, furnished in compatible lock trim finishes.

Deadbolts: 1x 2-1/4" (25 mm x 57 mm) square corner. 1" (25 mm) throw standard. Circular drive-in, round corner, 1-1/8square corner, and Triple Option deadbolts also available.

Strikes: Square corner 1-1/8x 2-3/4" (29 mm x 70 mm) strike, no lip, furnished with metal dust box standard. ANSI 1-1/4x 4-7/8with 1-3/16" (30 mm) lip, drive-in and full lip strikes also available.

Exposed Trim: Wrought brass or bronze, reinforced with steel security insert.

Cylinder & Keys: 6-pin tumbler standard with two keys per lock. Stock locks are keyed 5- or 6-pin. Other keying options for B500 Series available from the factory include master keying, grand master keying and construction keying.

Model: B560, B560P, B560BD, B560P626

Certifications:ANSI A156.5, 2001, Grade 2. Available UL Listed for three-hour fire door.

**Door Frame Reinforcer

**All B500 Series deadbolt locks are furnished standard with the metal dust box reinforcer. This unit significantly strengthens a wood jamb against kick-in attack and greatly increases the security effectiveness of the lock. The reinforcer is concealed under the strike and is deeply anchored to the jamb with three 3 (76 mm) long screws.
