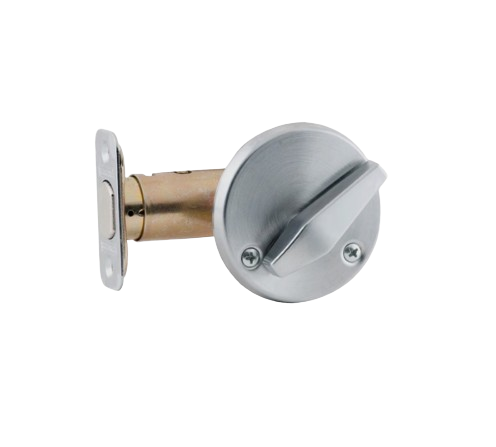

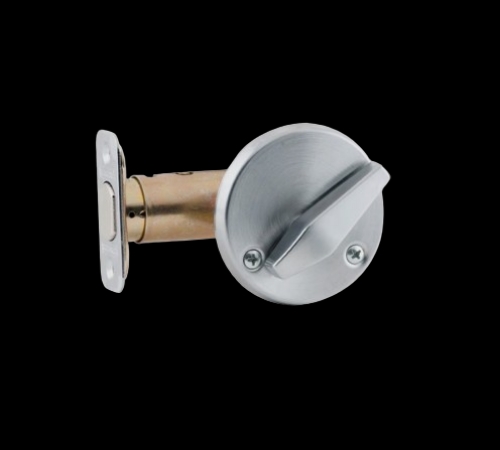

Schlage B680 Thumbturn Only Deadbolt

Thumbturn*Only DeadboltANSI:E2191*

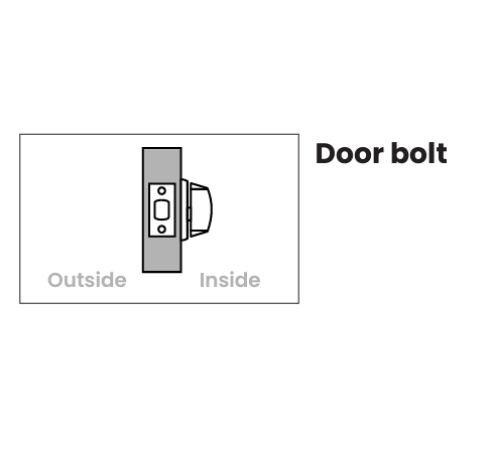

Deadbolt thrown or retracted by thumbturn inside. No outside trim.

Handing:Locksets are non-handed.

Door Thickness: B600 Series: 1-3/4"to 2" (44mm to 51mm) standard.

*Backset:*B600Series: 2-3/4"(70mm) standard, 2-3/8"(60mm)optional.

*Front:*Brass, bronze or stainless steel. 1-1/8"x 2-1/4"(29 mm x 57mm) square corner, beveled.

Dead Bolt:1" (25 mm) throw with saw-resistant hardened steel insert.

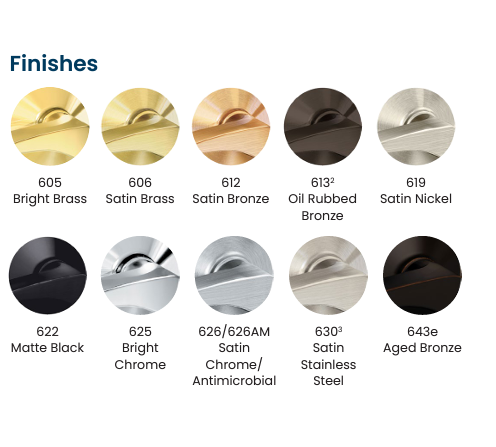

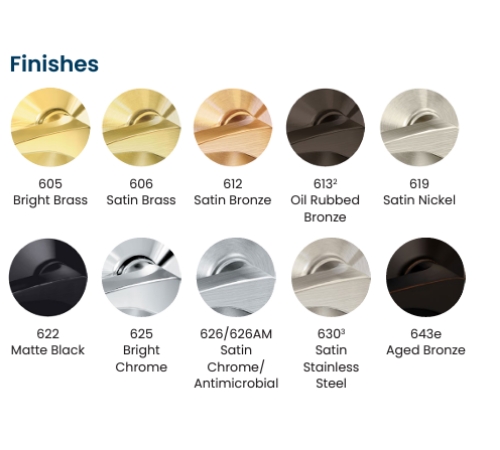

*Exposed Trim:*Wrought brass, bronze or stainless steel. Thumbturn: Pressure cast zinc, plated to match finish symbols.

*Strike:*1-1/4"x 2-3/4"(32mm x 70mm) with steel reinforcer and two 3screws to resist kick-in attacks standard.

*Warranty: *Three-year limited.

*ANSI:*B600 Series meets or exceeds A156.5 Grade 1 strength and operational requirements.

*UL / cUL:B600 Series locks are UL10B listedauxiliary locks*for A label single doors, 4 x 8.
