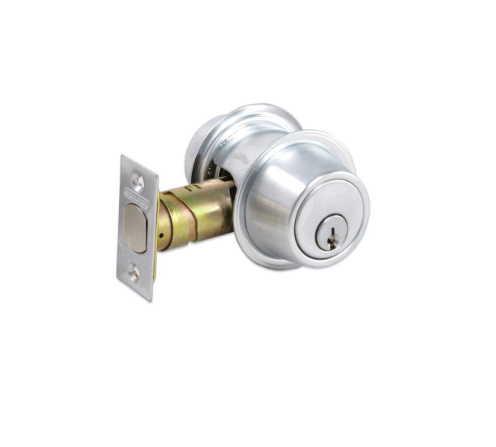

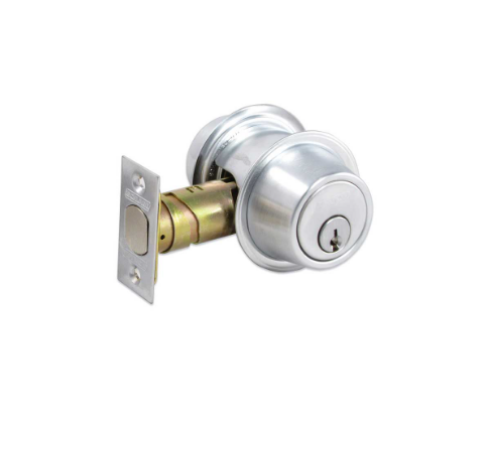

Schlage B562 Double Cylinder Deadbolt

Single Cylinder DeadboltANSI: E0142

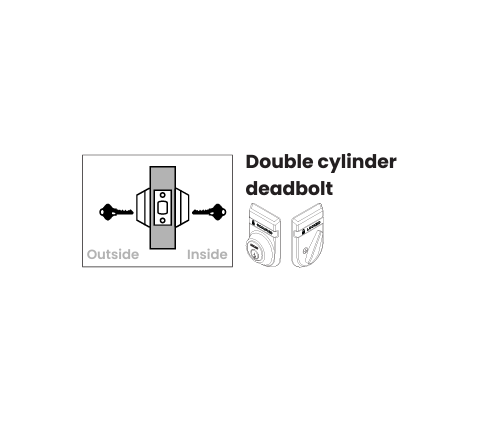

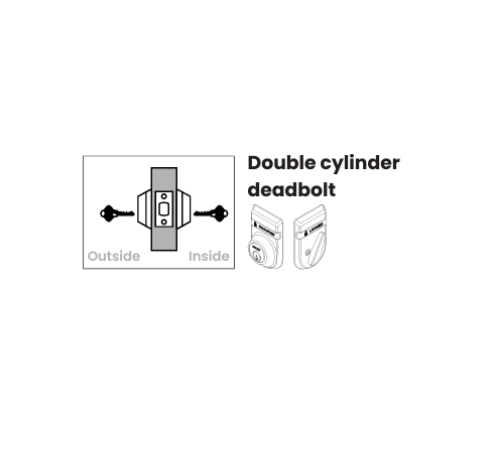

Deadbolt thrown or retracted by key either side.

*Applications:*Auxiliary and primary locking for commercial and residential buildings

Handing:Locksets are non-handed.

Door range:1-3/8" to 1-3/4" thick (35 mm to 44**mm) standard.

Backset:2-3/8" (60 mm) or 2-3/4" (70 mm) adjustable backset standard.

Deadbolts and Strikes:B500 Series deadbolts and strikes have brass bronze or steel faceplates, furnished in compatible lock trim finishes.

Deadbolts:1x 2-1/4" (25 mm x 57 mm) square corner. 1" (25 mm) throw standard. Circular drive-in, round corner, 1-1/8square corner, and Triple Option deadbolts also available.

Strikes:Square corner 1-1/8x 2-3/4" (29 mm x 70 mm) strike, no lip, furnished with metal dust box standard. ANSI 1-1/4x 4-7/8with 1-3/16" (30 mm) lip, drive-in and full lip strikes also available.

Exposed Trim:Wrought brass or bronze, reinforced with steel security insert.

*Cylinder & Keys:*6-pin tumbler standard with two keys per lock. Stock locks are keyed 5- or 6-pin. Other keying options for B500 Series available from the factory include master keying, grand master keying and construction keying.

Certifications:ANSI A156.5, 2001, Grade 2. Available UL Listed for three-hour fire door.

**Door Frame Reinforcer

**All B500 Series deadbolt locks are furnished standard with the metal dust box reinforcer. This unit significantly strengthens a wood jamb against 'kick-in' attack and greatly increases the security effectiveness of the lock. The reinforcer is concealed under the strike and is deeply anchored to the jamb with three 3" (76 mm) long screws.
