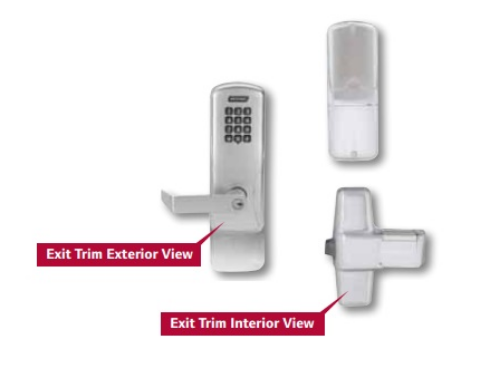

Schlage CO-100-993-Electronic Keypad Exit Trim

CO-100-9933

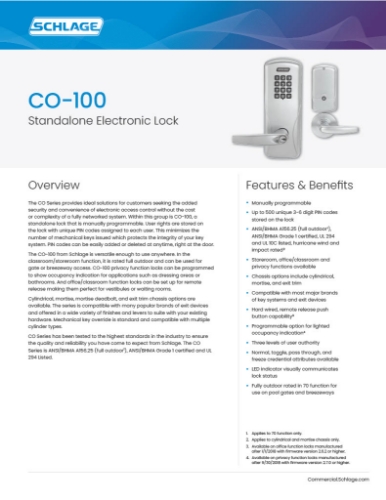

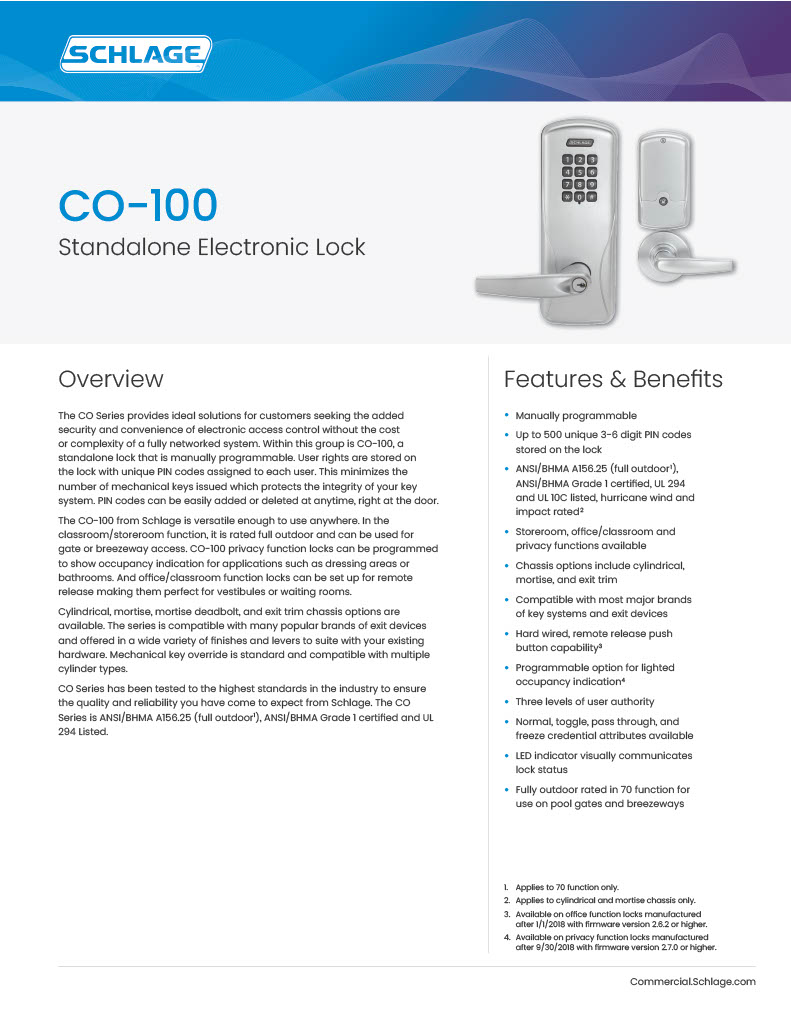

1-Page1-CO-100

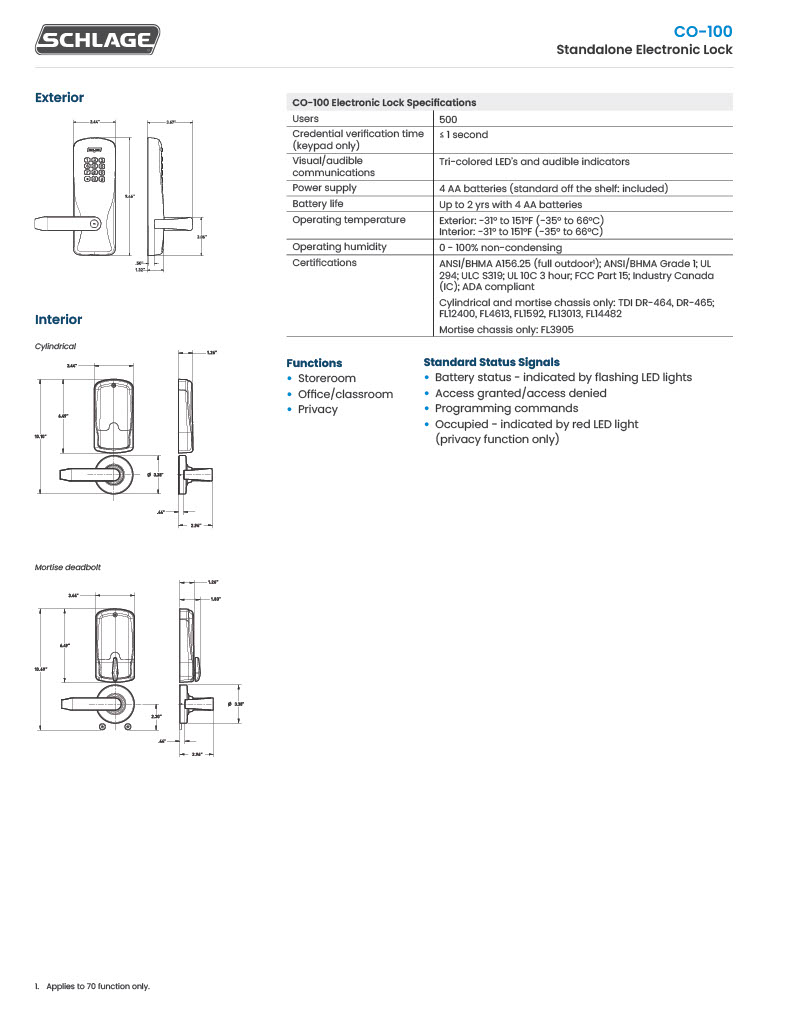

1-Page2-CO-100

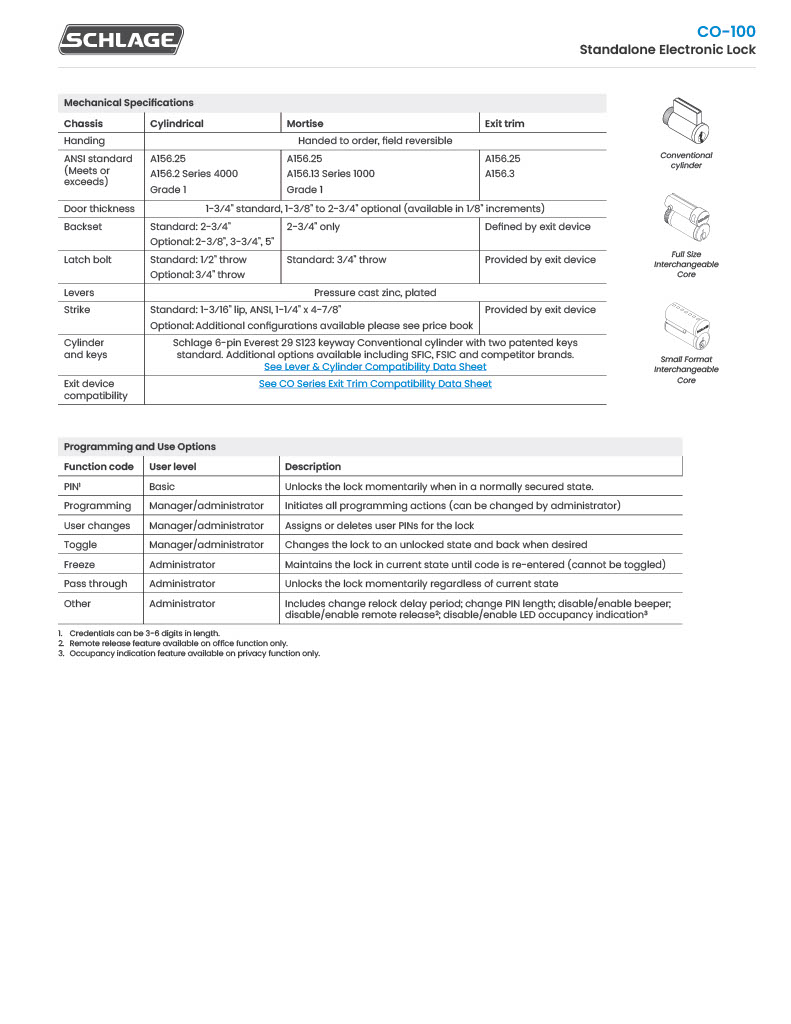

1-Page3-CO-100

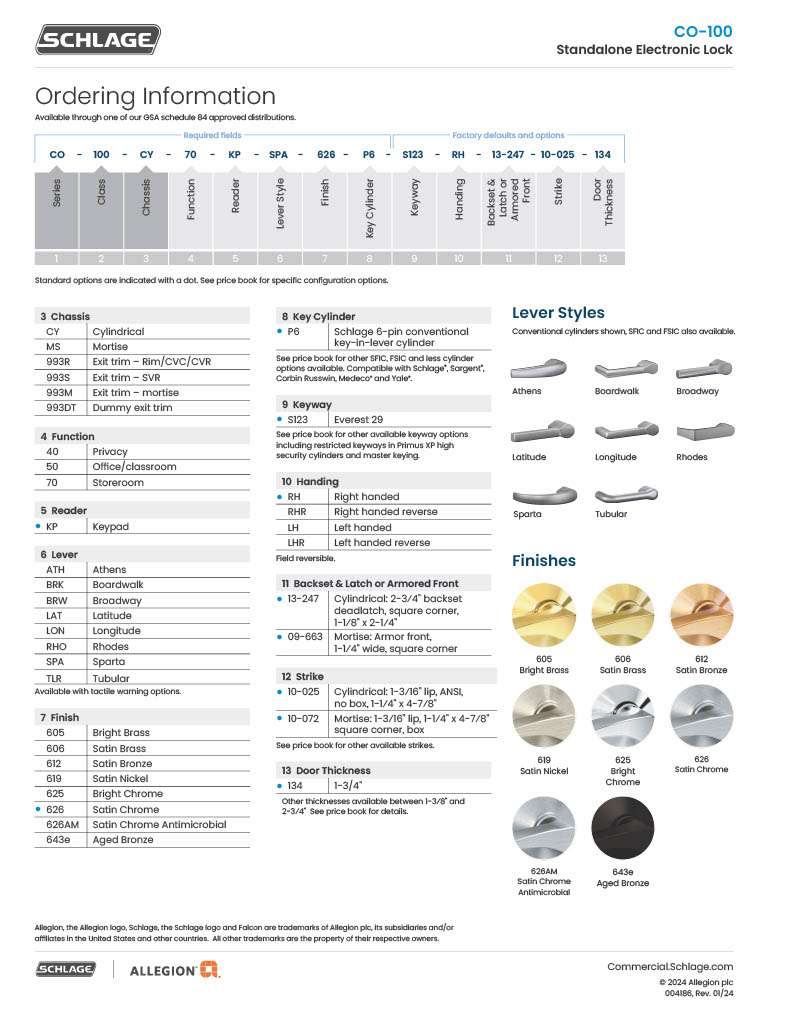

1-Page4-CO-100
CO-100-9933
1-Page1-CO-100
1-Page2-CO-100
1-Page3-CO-100
1-Page4-CO-100
naxt
prev

Product Details

Schlage CO-100-993 - Electronic Keypad Exit Trim(Panic Device Sold Separately)

Lever Styles:

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.*Unique PIN codes can be assigned to each user.*This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

**12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock**

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151 Degree F (-35* Degreeto 66 Degree C) - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery*

* Operating Humidity: 0 - 100% non-condensing*

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed

**

Model:Schlage CO100993M70KP, CO100993R70KP, CO100993S70KP, CO100993M70KPRHO626PD, CO100993R70KPPRHO626PD, CO100993S70KPPRHO626PD, CO100993M70KPRHO626BD, CO100993R70KPPRHO626BD, CO100993S70KPPRHO626BD

Schlage CO-100-993-Electronic Keypad Exit Trim

SKU: CO100993

In Stock
icon Chat
Picture for manufacturer Schlage

Lever *

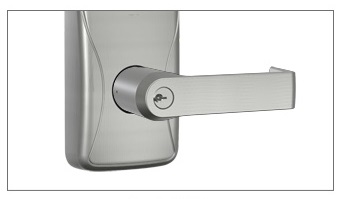

RHO - Rhodes Lever
RHO - Rhodes Lever

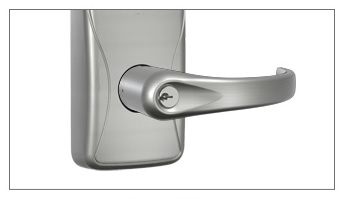

SPA - Sparta Lever
SPA - Sparta Lever

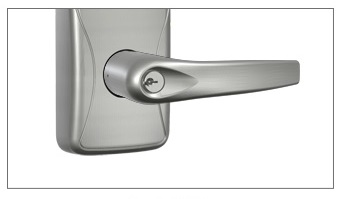

ATH - Athens Lever
ATH - Athens Lever

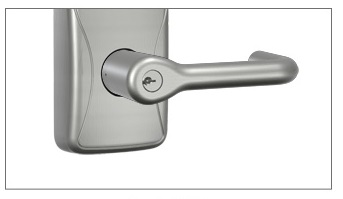

TLR - Tubular Lever
TLR - Tubular Lever

Type *

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$76.20]
605 - Bright Brass [+$76.20]
606 - Satin Brass [+$76.20]
606 - Satin Brass [+$76.20]
612 - Satin Bronze [+$76.20]
612 - Satin Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
643E - Aged Bronze [+$76.20]
625 - Bright Chrome [+$76.20]
625 - Bright Chrome [+$76.20]

Cylinder *

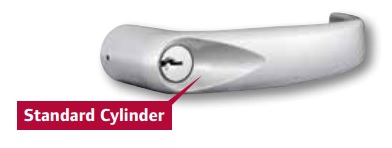

PD - Standard Cylinder
PD - Standard Cylinder

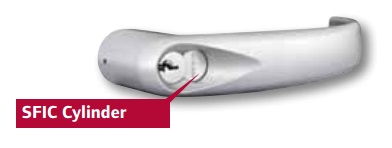

BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core

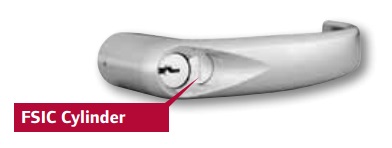

JD - Accepts Large format IC core - less core [-$19.20]
JD - Accepts Large format IC core - less core [-$19.20]

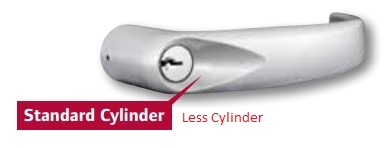

LD - Accepts Standard Cylinder - less Cylinder [-$34.80]
LD - Accepts Standard Cylinder - less Cylinder [-$34.80]

$673.81

$1,567.00

You saved $893.19

About this item

CO-Series: Standalone Electronic Locks. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency.

Resources

Schlage CO-100-993 - Electronic Keypad Exit Trim(Panic Device Sold Separately)

Lever Styles:

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.*Unique PIN codes can be assigned to each user.*This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

**12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock**

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151 Degree F (-35* Degreeto 66 Degree C) - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery*

* Operating Humidity: 0 - 100% non-condensing*

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed

**

Model:Schlage CO100993M70KP, CO100993R70KP, CO100993S70KP, CO100993M70KPRHO626PD, CO100993R70KPPRHO626PD, CO100993S70KPPRHO626PD, CO100993M70KPRHO626BD, CO100993R70KPPRHO626BD, CO100993S70KPPRHO626BD

CO-100-9933
Schlage CO-100-993-Electronic Keypad Exit Trim

Product code: CO100993

In Stock

$1,567.00

$673.81

Users: 500

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 Degree  to 151 DegreeF (-35 Degree to 66 Degree C)

Operating Temperature - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and security

CO-100-9933
Schlage CO-100-993-Electronic Keypad Exit Trim

Product code: CO100993

In Stock

$1,567.00

$673.81
