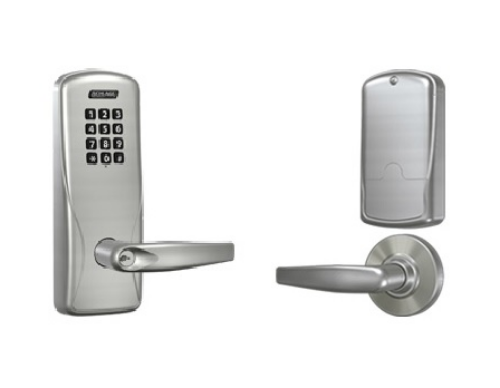

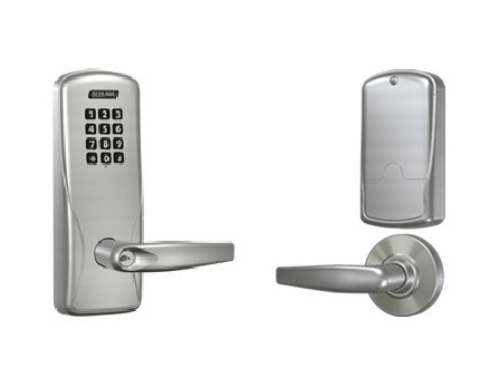

Schlage CO-100-CY-70-KP Cylindrical Keypad Electronic Lock - Classroom / Storeroom Function

CO-100-CY-70-KP

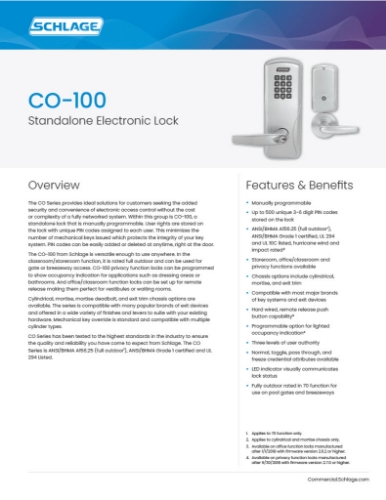

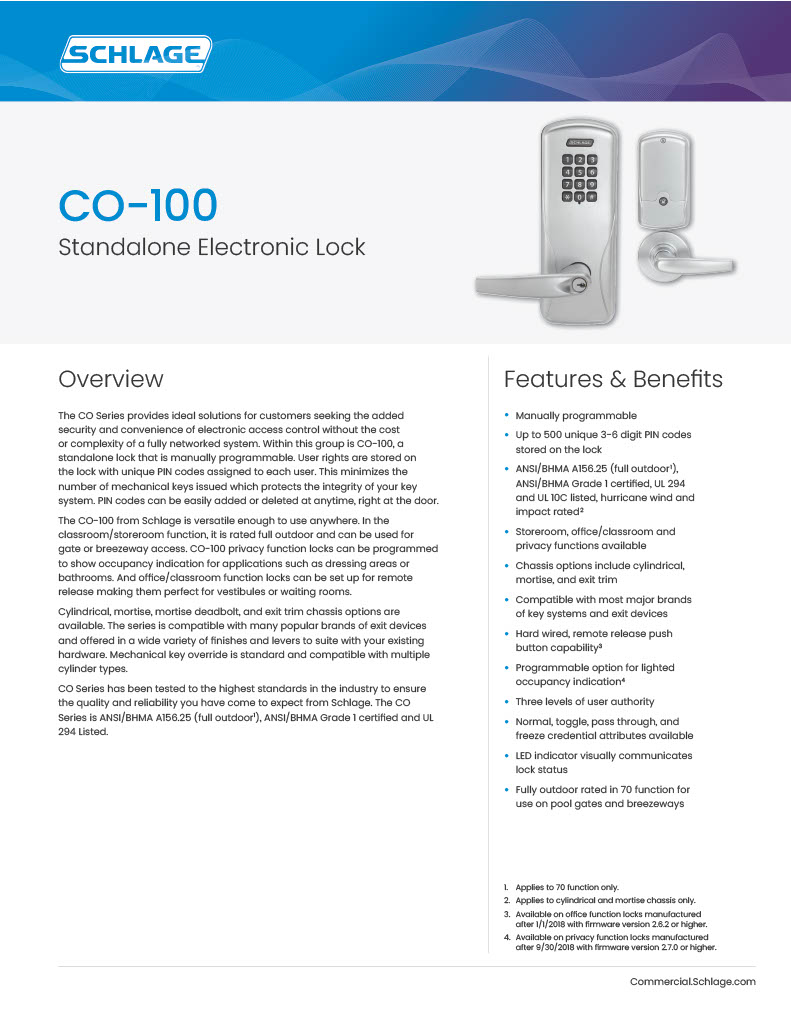

1-Page1-CO-100

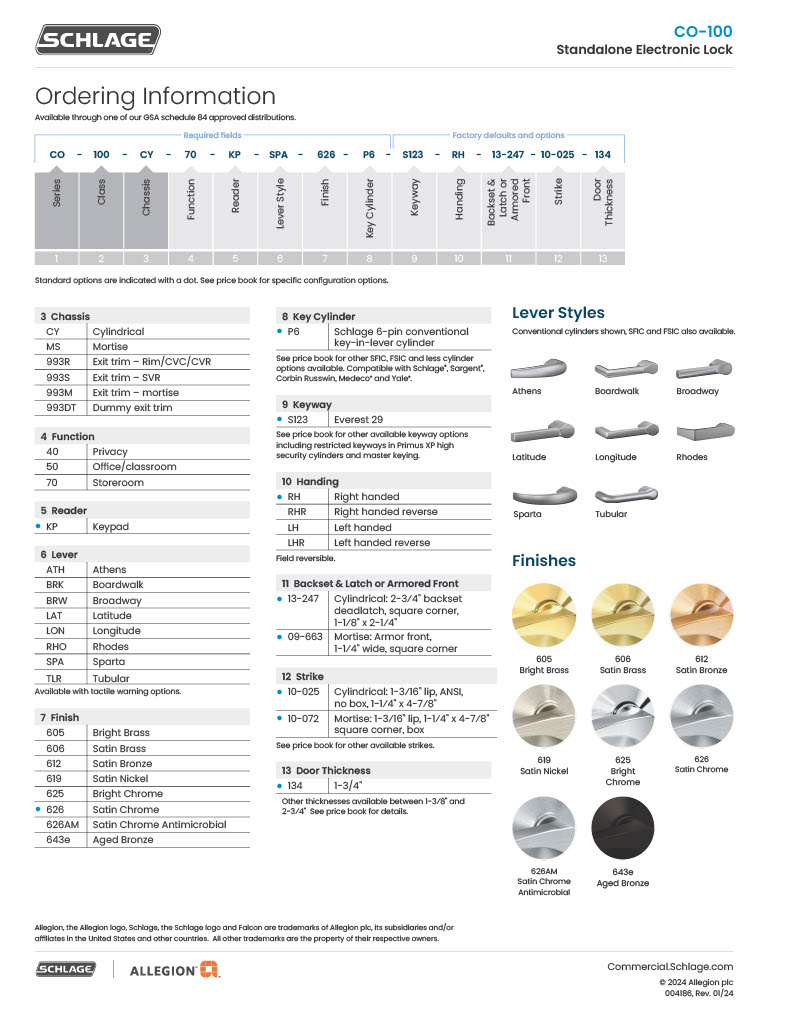

1-Page2-CO-100

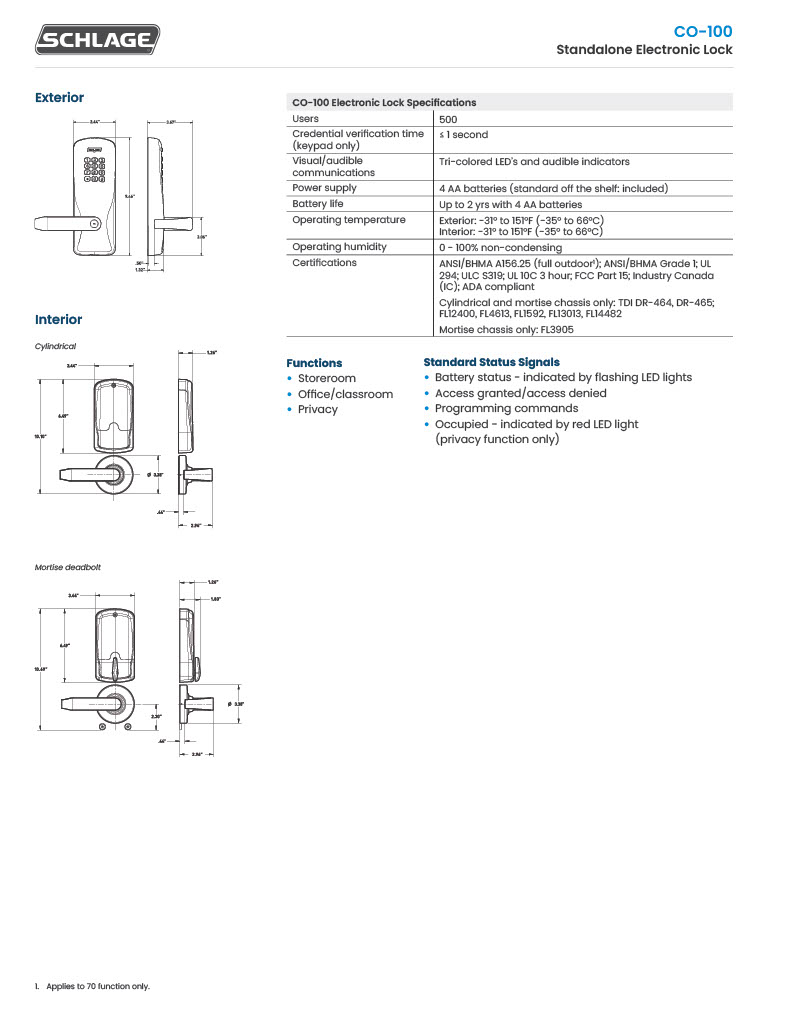

1-Page3-CO-100

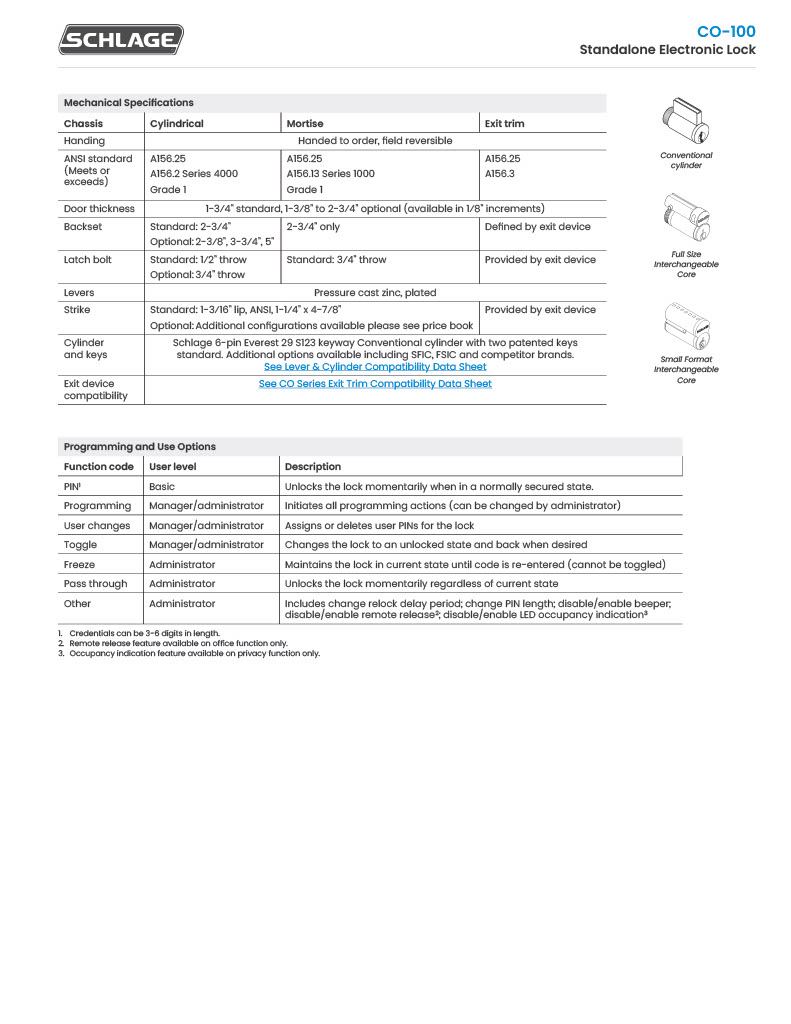

1-Page4-CO-100
CO-100-CY-70-KP
1-Page1-CO-100
1-Page2-CO-100
1-Page3-CO-100
1-Page4-CO-100
naxt
prev

Product Details

Schlage CO-100-CY-70-KP Cylindrical Keypad Electronic LockLever Styles:

Classroom /Storeroom Function (70)

In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.

Unique PIN codes can be assigned to each user.

This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31* Degree to 151 Degree F (-35 Degree to 66 Degree C) - Interior 32 Degree to 120 Degree F (0to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed

Door Thickness: 1-3/4" standard, 1-3/8" to 2-3/4" optional (available in 1/8 increments)

Backset: 2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional

Latch Bolt: 1/2˝ throw security latch standard 3/4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available

Schlage CO-100-CY-70-KP Cylindrical Keypad Electronic Lock - Classroom / Storeroom Function

SKU: CO100CY70KP

In Stock
Picture for manufacturer Schlage
icon Chat

$488.48

Lever *

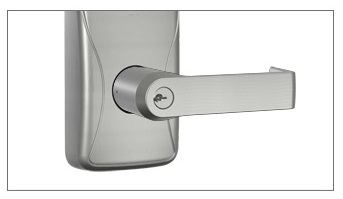

RHO - Rhodes Lever
RHO - Rhodes Lever

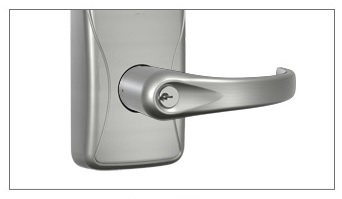

SPA - Sparta Lever
SPA - Sparta Lever

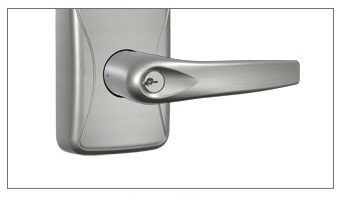

ATH - Athens Lever
ATH - Athens Lever

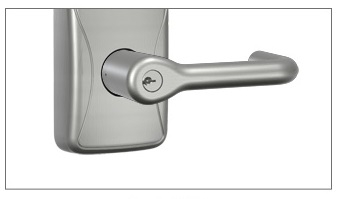

TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$73.66]
605 - Bright Brass [+$73.66]
606 - Satin Brass [+$73.66]
606 - Satin Brass [+$73.66]
612 - Satin Bronze [+$73.66]
612 - Satin Bronze [+$73.66]
643E - Aged Bronze [+$73.66]
643E - Aged Bronze [+$73.66]
625 - Bright Chrome [+$73.66]
625 - Bright Chrome [+$73.66]

Cylinder *

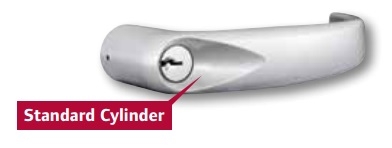

PD - Standard Cylinder
PD - Standard Cylinder

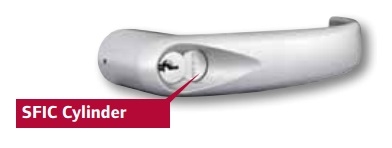

BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core

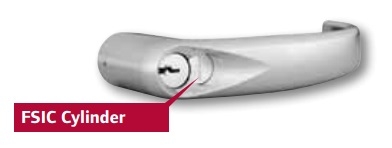

JD - Accepts Large format IC core - less core [-$18.56]
JD - Accepts Large format IC core - less core [-$18.56]

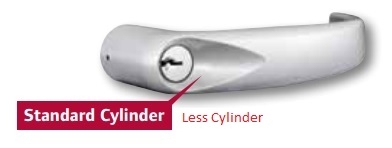

LD - Accepts Standard Cylinder - less Cylinder [-$33.64]
LD - Accepts Standard Cylinder - less Cylinder [-$33.64]

About this item

CO-Series: Standalone Electronic Locks. The CO-Series from Schlage makes it easy to upgrade from traditional mechanical solutions to electronic access control. Electronic access control provides added security, convenience and efficiency.

Resources

Schlage CO-100-CY-70-KP Cylindrical Keypad Electronic LockLever Styles:

Classroom /Storeroom Function (70)

In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically

The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock.

Unique PIN codes can be assigned to each user.

This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime right at the door.

Manually Programmable

12 button keypad

Up to 500 unique 3-6 digit PIN codes stored on the lock

Normal, toggle, pass through, and freeze credential attributes available

Mechanical key override is standard and compatible with multiple cylinder types

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31* Degree to 151 Degree F (-35 Degree to 66 Degree C) - Interior 32 Degree to 120 Degree F (0to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed

Door Thickness: 1-3/4" standard, 1-3/8" to 2-3/4" optional (available in 1/8 increments)

Backset: 2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional

Latch Bolt: 1/2˝ throw security latch standard 3/4" throw optional

Levers: Pressure cast zinc, plated to match finish symbols

Strike: ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available

CO-100-CY-70-KP
Schlage CO-100-CY-70-KP Cylindrical Keypad Electronic Lock - Classroom / Storeroom Function

Product code: CO100CY70KP

In Stock

$1,136.00

$488.48

Users: 500

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 Degree to 151 Degree F (-35 Degree to 66 Degree C)

Operating Temperature - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
