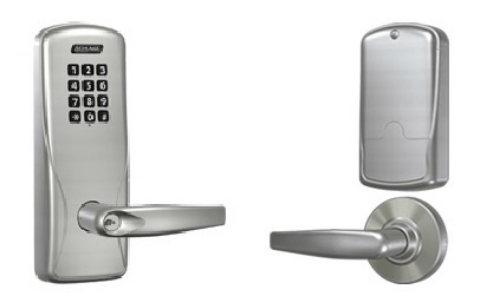

Schlage CO-200-CY-70-KP Cylindrical Keypad Lock - Computer Programmable W/ Audit Trail - Classroom / Storeroom

CO-200-70-KP

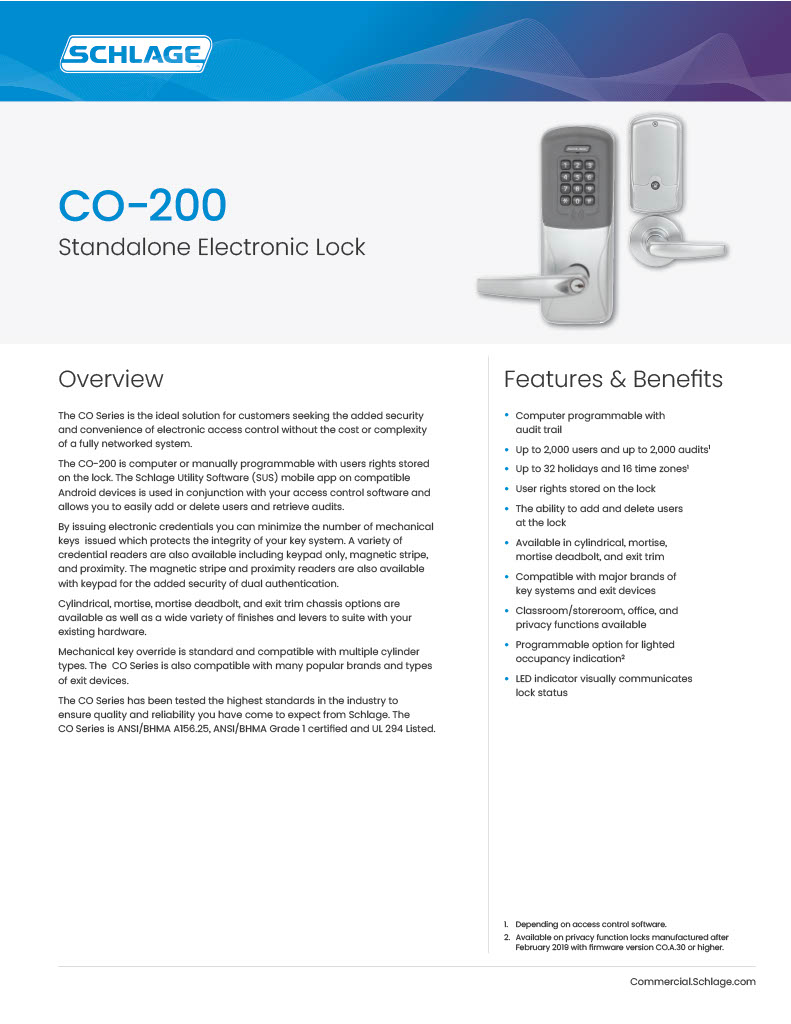

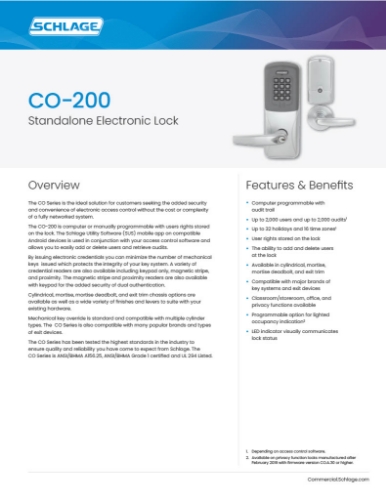

1-Page1-CO-200

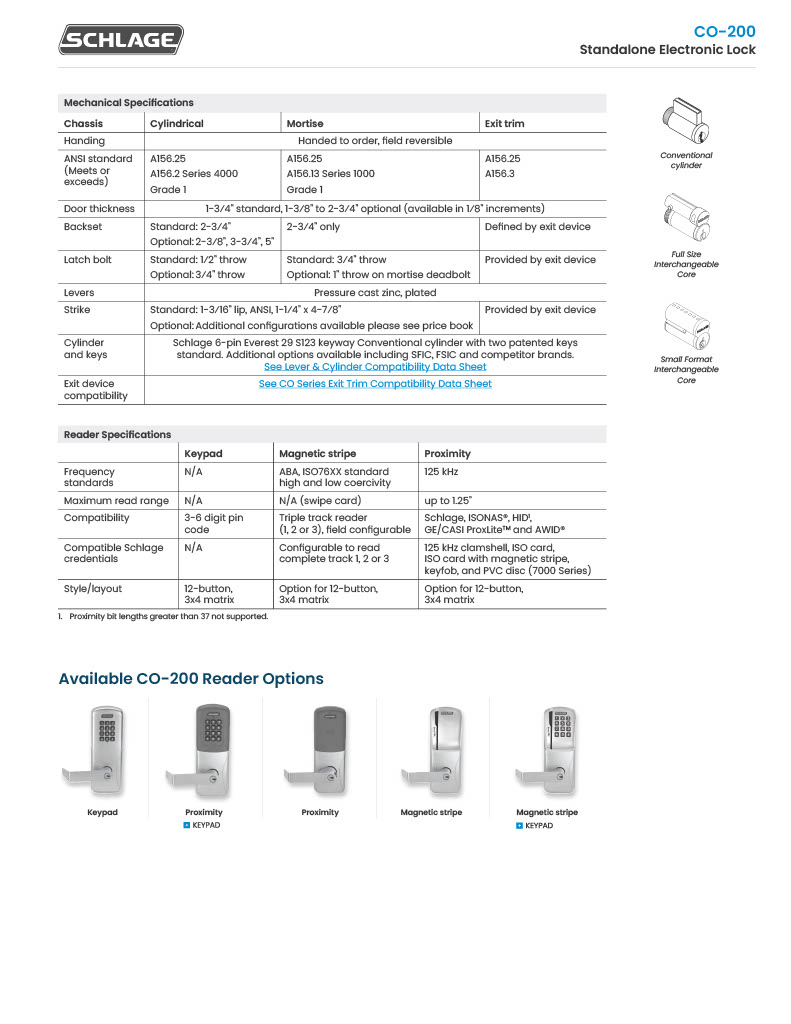

1-Page2-CO-200

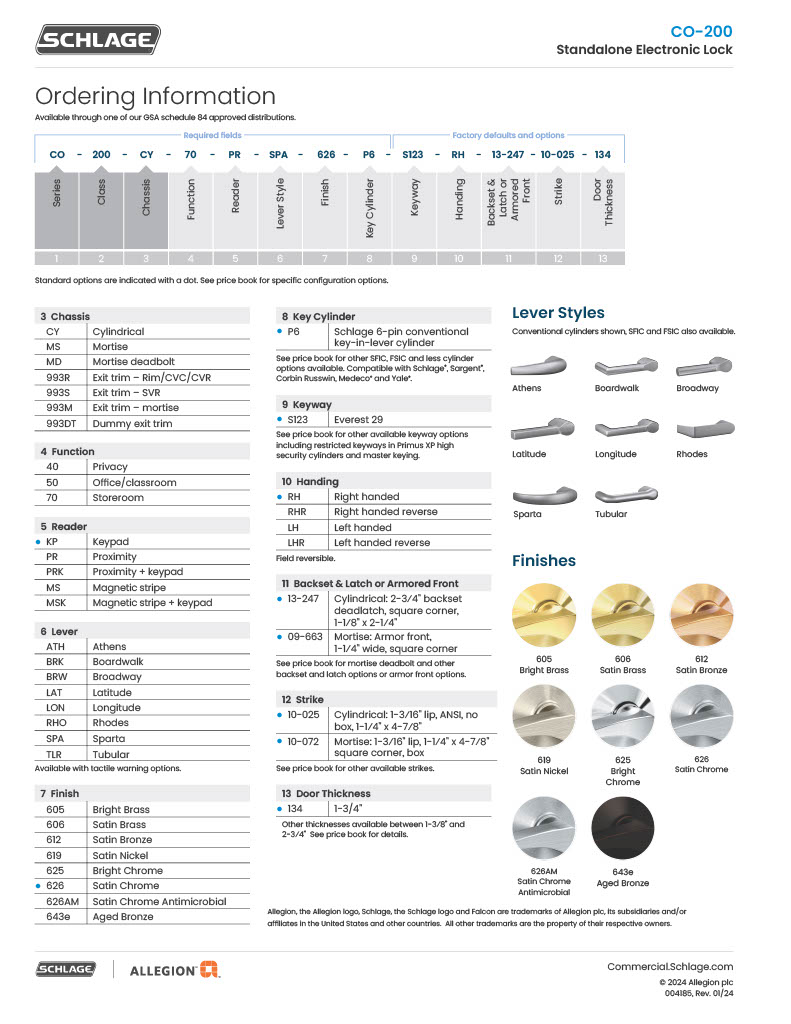

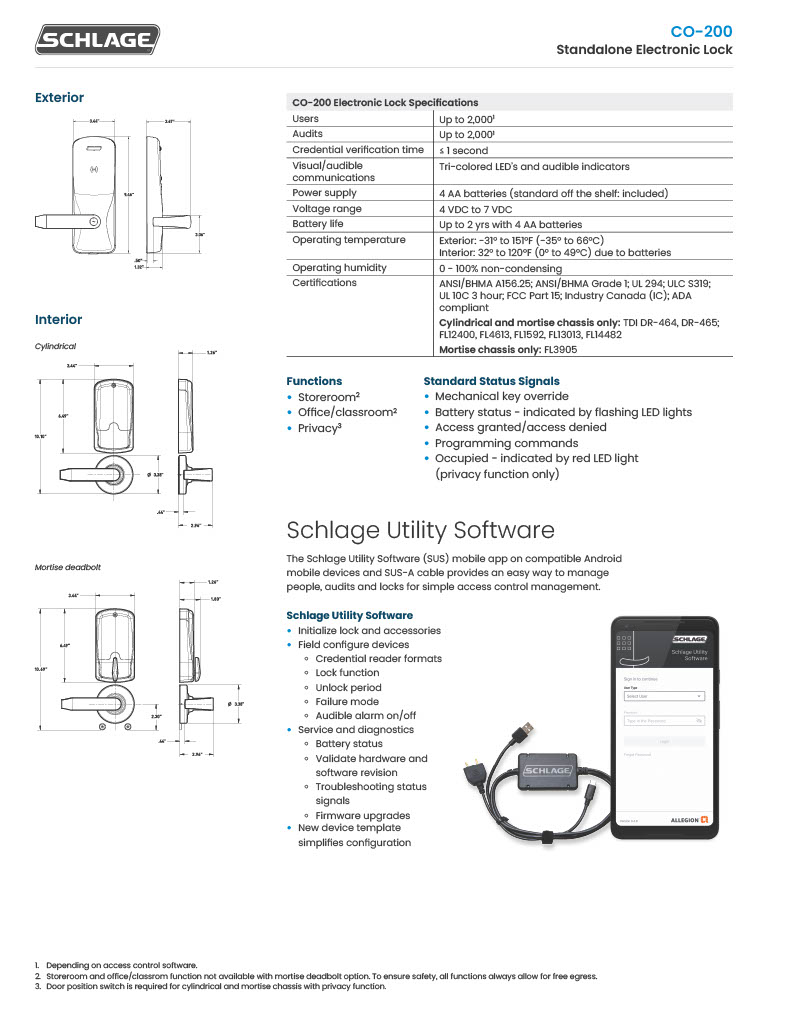

1-Page3-CO-200
1-Page4-CO-200
CO-200-70-KP
1-Page1-CO-200
1-Page2-CO-200
1-Page3-CO-200
1-Page4-CO-200
naxt
prev

Product Details

Schlage CO-200-CY-70-KP Cylindrical Keypad Lock - Computer Programmable with Audit Trail - Classroom / Storeroom Function    The CO-200 is computer or manually programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

Lever Styles:

**

**

**



*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically** **

**12 button keypad  - 3x4 Matrix

**Up to 2000 users & up to 2000 audits 3-6 digit PIN codes stored on the lock (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31to 151F (-35to 66C) - Interior 32to 120F (0to 49C) due to battery

Operating Humidity: 0 - 100% non-condensing**

ANSI/BHMA A156.25, ANSI/BHMA Grade 1 certified and UL 294 listed**

*Door Thickness:1-3/4" standard, 1-3/8" to 2-3/4' optional (available in 1/8" increments)*

*Backset:2-3/4˝ standard, 2-3/8˝, 3-3/4˝ and 5˝ optional*

*Latch Bolt:1/2˝ throw security latch standard 3/4" throw optional*

*Levers:Pressure cast zinc, plated to match finish symbols*

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

Model:Schlage CO200CY70KPRHO605PD, CO200CY70KPRHO606PD, CO200CY70KPRHO612PD, CO200CY70KPRHO625PD, CO200CY70KPRHO626PD, CO200CY70KPRHO643EPD, CO200CY70KPRHO605BD, CO200CY70KPRHO606BD, CO200CY70KPRHO612BD, CO200CY70KPRHO625BD, CO200CY70KPRHO626BD, CO200CY70KPRHO643EBD, CO200CY70KPRHO605JD, CO200CY70KPRHO606JD, CO200CY70KPRHO612JD, CO200CY70KPRHO625JD, CO200CY70KPRHO626JD, CO200CY70KPRHO643EJD

Schlage CO200CY70KPSPA605PD, CO200CY70KPSPA606PD, CO200CY70KPSPA612PD, CO200CY70KPSPA625PD, CO200CY70KPSPA626PD, CO200CY70KPSPA643EPD, CO200CY70KPSPA605BD, CO200CY70KPSPA606BD, CO200CY70KPSPA612BD, CO200CY70KPSPA625BD, CO200CY70KPSPA626BD, CO200CY70KPSPA643EBD, CO200CY70KPSPA605JD, CO200CY70KPSPA606JD, CO200CY70KPSPA612JD, CO200CY70KPSPA625JD, CO200CY70KPSPA626JD, CO200CY70KPSPA643EJD

Schlage CO200CY70KPATH605PD, CO200CY70KPATH606PD, CO200CY70KPATH612PD, CO200CY70KPATH625PD, CO200CY70KPATH626PD, CO200CY70KPATH643EPD, CO200CY70KPATH605BD, CO200CY70KPATH606BD, CO200CY70KPATH612BD, CO200CY70KPATH625BD, CO200CY70KPATH626BD, CO200CY70KPATH643EBD, CO200CY70KPATH605JD, CO200CY70KPATH606JD, CO200CY70KPATH612JD, CO200CY70KPATH625JD, CO200CY70KPATH626JD, CO200CY70KPATH643EJD

Schlage CO200CY70KPTLR605PD, CO200CY70KPTLR606PD, CO200CY70KPTLR612PD, CO200CY70KPTLR625PD, CO200CY70KPTLR626PD, CO200CY70KPTLR643EPD, CO200CY70KPTLR605BD, CO200CY70KPTLR606BD, CO200CY70KPTLR612BD, CO200CY70KPTLR625BD, CO200CY70KPTLR626BD, CO200CY70KPTLR643EBD, CO200CY70KPTLR605JD, CO200CY70KPTLR606JD, CO200CY70KPTLR612JD, CO200CY70KPTLR625JD, CO200CY70KPTLR626JD, CO200CY70KPTLR643EJD

Schlage CO-200-CY-70-KP Cylindrical Keypad Lock - Computer Programmable W/ Audit Trail - Classroom / Storeroom

SKU: CO200CY70KP

In Stock
Picture for manufacturer Schlage
icon Chat

$1,141.40

Lever *

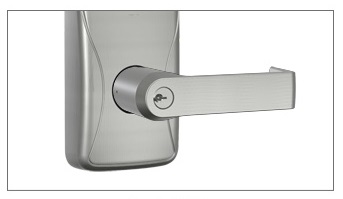

RHO - Rhodes Lever
RHO - Rhodes Lever

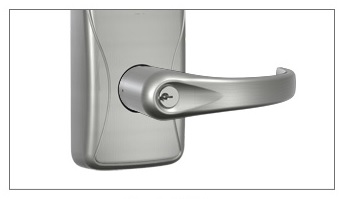

SPA - Sparta Lever
SPA - Sparta Lever

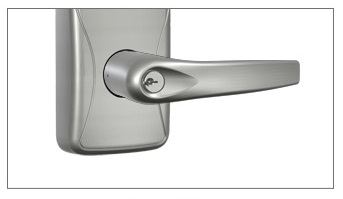

ATH - Athens Lever
ATH - Athens Lever

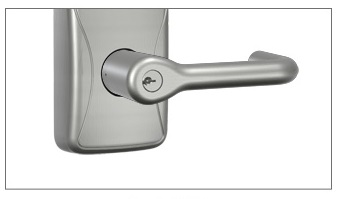

TLR - Tubular Lever
TLR - Tubular Lever

Finish *

626 - Satin Chrome
626 - Satin Chrome
605 - Bright Brass [+$72.39]
605 - Bright Brass [+$72.39]
606 - Satin Brass [+$72.39]
606 - Satin Brass [+$72.39]
612 - Satin Bronze [+$72.39]
612 - Satin Bronze [+$72.39]
643E - Aged Bronze [+$72.39]
643E - Aged Bronze [+$72.39]
625 - Bright Chrome [+$72.39]
625 - Bright Chrome [+$72.39]

Cylinder *

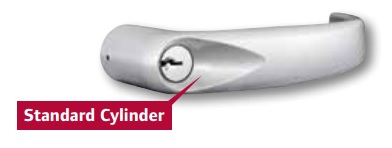

PD - Standard Cylinder
PD - Standard Cylinder

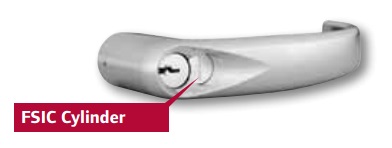

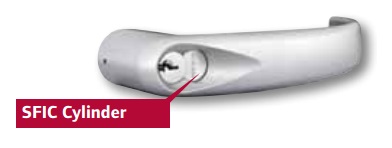

BD - Accepts Small format IC core - less core
BD - Accepts Small format IC core - less core
JD - Accepts Large format IC core - less core [-$18.24]
JD - Accepts Large format IC core - less core [-$18.24]

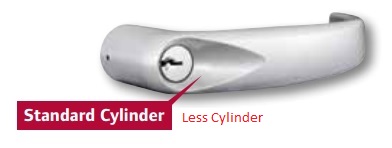

LD - Accepts Standard Cylinder - less Cylinder [-$33.06]
LD - Accepts Standard Cylinder - less Cylinder [-$33.06]

About this item

The Schlage CO-200-CY-70-KP is a standalone commercial keypad lock from Schlage's CO Series  cylindrical chassis, classroom/storeroom function, keypad-only credential reader, computer programmable, ANSI/BHMA A156.25 Grade 1, UL 294 Listed, up to 2,000 users and 2,000 audit events, and 4 AA battery powered for up to two years of operation. American Locksets stocks the CO-200-CY-70-KP.



What the CO-200-CY-70-KP Model Number Means



Every segment of the model number tells you the configuration. "CO" is the CO Series platform. "200" means computer programmable with audit trail; the CO-100 is manually programmable only, without audit capability. "CY" is the cylindrical chassis. "70" is the classroom/storeroom function code. "KP" is a keypad-only credential reader. Knowing this lets you order the right variant without ambiguity. If your application needs proximity card access in addition to PIN, the CO-200-CY-70-PRK adds that reader. If you need just a storeroom without classroom toggle capability, the function is still 70  classrooms and storerooms share the same function code on the CO Series.



How the Classroom/Storeroom Function Works



In classroom mode, a valid toggle credential on the outside keypad switches the lock between secured and passage states. Push the PIN and the lock enters passage  the door can be opened freely from outside without repeating the credential. Push the PIN again and the lock returns to secure. Inside lever always provides free egress regardless of the locked state.

In storeroom mode, the lock is always secured from outside. A valid credential on the keypad grants a momentary release; the outside lever retracts the latch for the access event, then the lock re-secures automatically. Inside lever is always free.

Both modes are governed by the same credential: the 3 to 6-digit PIN entered on the 12-button keypad.



Programming the CO-200: How It Works



The CO-200 can be programmed two ways. Manual programming handles basic user add/delete operations at the lock itself using the keypad. Computer programming via Schlage Utility Software (SUS) on a compatible Android device  connected to the lock through the SUS-A cable  handles bulk user management, audit retrieval, and schedule-based access configuration. Schlage Express software or select PACS alliance member access control systems manage the CO-200 for larger multi-door deployments.

The Handheld Device (HHD) is the field tool: plug it into the lock to add or remove users, pull audit records, or push updated programming from the host software  all at the door, no network connection required. All user rights are stored on the lock itself, not in the cloud or on a server.

On the CO Series keypad, programming sequences use the 12-button layout. The button combination 0 4 7 8 B D is referenced in CO-200 programming procedures  specifically during factory default and master code entry steps.



CO-200-CY-70-KP Specifications



Model: CO-200-CY-70-KP

Series: Schlage CO Series

Chassis: Cylindrical (CY)

Function: 70  Classroom/Storeroom. Inside the lever there is always free egress.

Reader: KP  Keypad, 12-button 3x4 matrix, 3-6 digit PIN

Users: Up to 2,000

Audit Events: Up to 2,000 (access control software dependent)

Programming: Computer programmable via SUS + SUS-A cable. Schlage Express or PACS software. Manual programming available.

Battery: 4 AA alkaline, up to 2-year life, low battery warning

Cylinder: Ships less cylinder. Standard Schlage 6-pin C keyway. Also available less cylinders for Sargent, Corbin Russwin, Medeco, Yale, Falcon.

Door Thickness: 1-3/4" standard; 1-3/8" to 2-3/4" optional in 1/8" increments

Backset: 2-3/4" standard; 2-3/8", 3-3/4", 5" optional

Latchbolt: 1/2" throw deadlocking standard; 3/4" optional

Standard Latch: 1-1/8" x 2-1/4" deadlatch, square corner

Strike: 1-3/16" lip, ANSI, 1-1/4" x 4-7/8", no box

Handing: Handed to order, field reversible

Mechanical Key Override: Standard

System Compatibility: Works in same offline system as Schlage AD-200 and CT5000

Certifications: ANSI/BHMA A156.25, ANSI/BHMA A156.2 Series 4000 Grade 1. UL 294 Listed.

Warranty: 2-year limited



American Locksets has stocked Schlage CO Series electronic access hardware since 2001.
