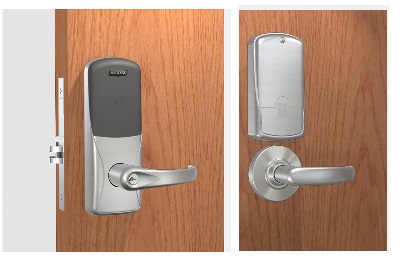

Schlage CO-200-MS-70-PR Mortise Proximity Reader - with Audit Trail - Classroom / Storeroom Function

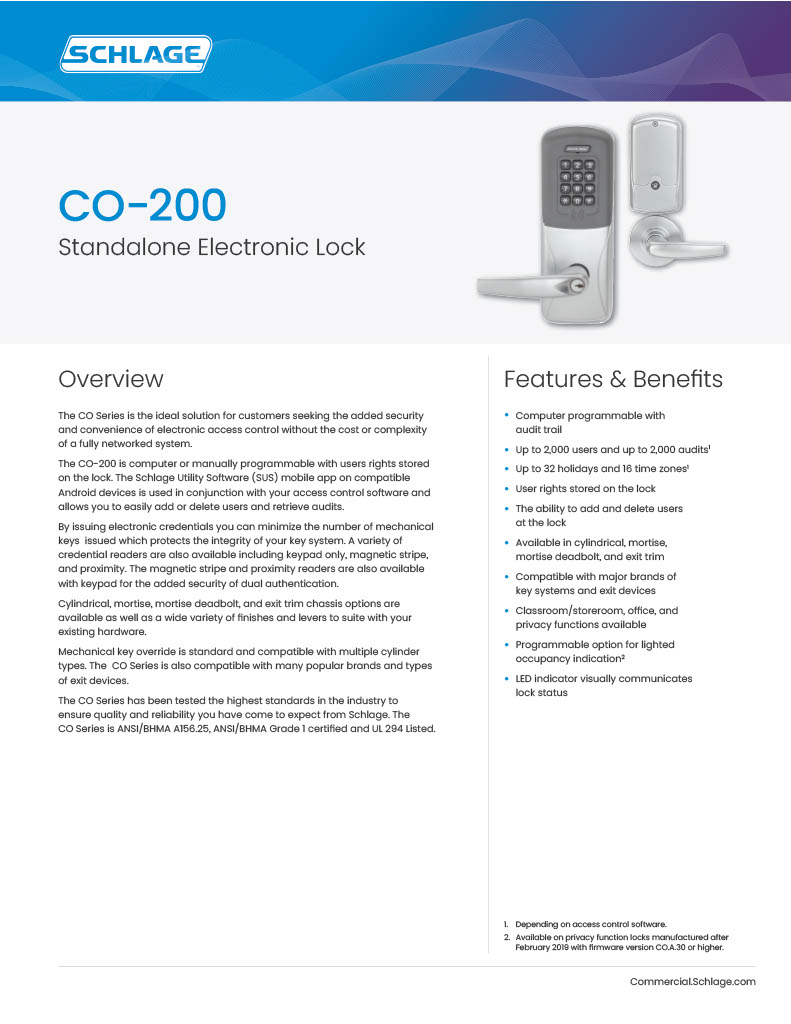

Schlage CO-200-MS-70-PR Mortise Proximity Reader - with Audit Trail - Classroom / Storeroom Function    The CO-200 is computer programmable with users rights stored on the lock.

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control software and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the previous SUS solution using a Handheld Device(HHD).  (sold  separately, Click Hare)

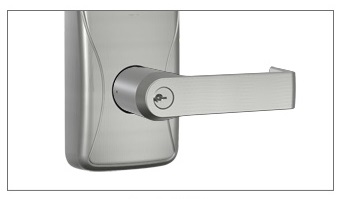

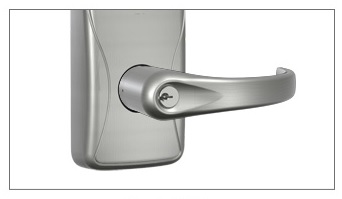

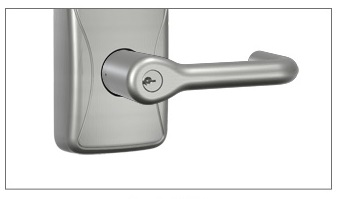

Lever Styles:

**

**

**

*Classroom /Storeroom Function (70)*

**In a classroom application a toggle credential can be used to put the lock into alockedorunlockedstate

The state of the lock cannot be changed from the interior

In a storeroom application the lock unlocks when a credential is presented and relocks automatically**

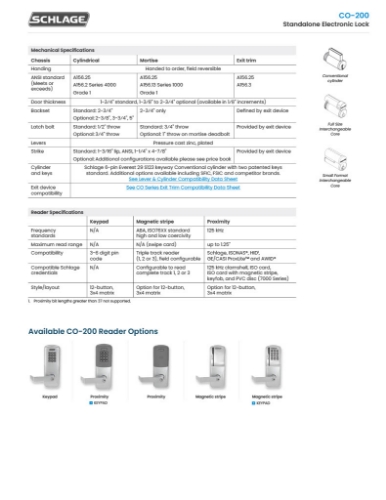

Proximity Reader specifications:  Frequency standards: 125 kHz.*Maximum read range: up to 1.25". *Compatibility: Schlage, XceedID, HID, GE/CASI ProxLiteTM and AWID

Compatible XceedID/ Schlage credentials: 125 kHz clamshell, ISO card, ISO card with magnetic stripe, keyfob, and PVC disk (7000 Series)* *

Up to 2000 users & up to 2000 audits (Depending on access control software.)

Up to 32 holidays & 16 time zones (Depending on access control software.)

User rights stored on the lock

The ability to add and delete users at the lock

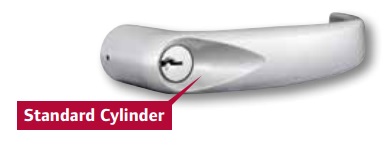

Mechanical key override is standard and compatible with multiple cylinder types

**Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries

Operating Temperature: Exterior -31 Degree to 151 Degree F (-35 Degree to 66 Degree C) - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery**

* Operating Humidity: 0 - 100% non-condensing***

*Meets or exceeds A156.25 and A156.13 Series 1000, Grade 1 operational and  security*

*Door Thickness: 1-3/4 standard, 1-3/8 to 2-3/4 optional (available in 1/8 increments)*

*Backset: 2-3/4˝*

*Latch Bolt: 3⁄4" throw with anti-friction tongue standard*

**Levers:Pressure cast zinc, plated to match finish symbols

*Strike:ANSI curved lip strike 1-1/4˝ x 4-7/8˝ x 1-3/16˝ lip  to center standard, optional strikes, lip lengths and  ANSI strike box available*

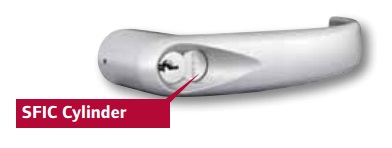

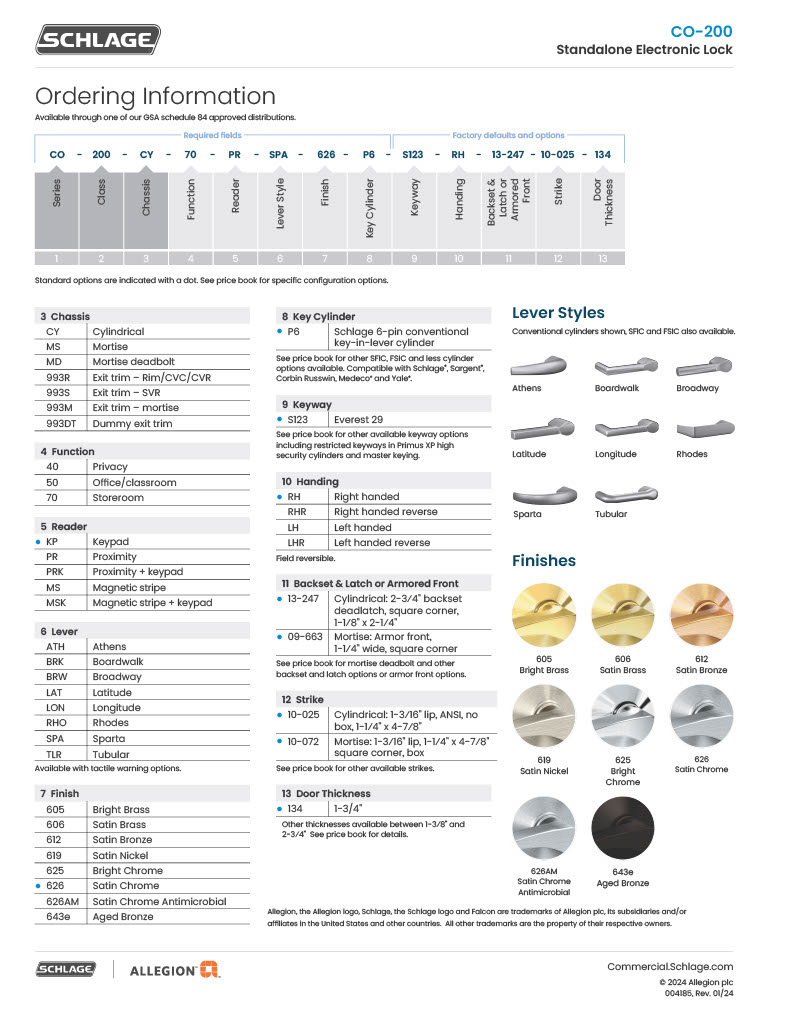

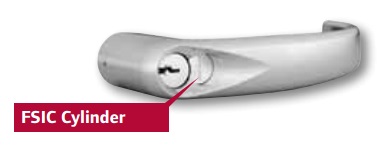

Model:Schlage CO200MS70PRRHO626PD, CO200MS70PRRHO626BD, CO200MS70PRRHO626JD

Schlage CO200MS70PRSPA626PD, CO200MS70PRSPA626BD, CO200MS70PRSPA626JD

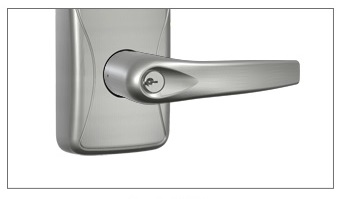

Schlage CO200MS70PRATH626PD, CO200MS70PRATH626BD, CO200MS70PRATH626JD

Schlage CO200MS70PRTLR626PD, CO200MS70PRTLR626BD, CO200MS70PRTLR626JD

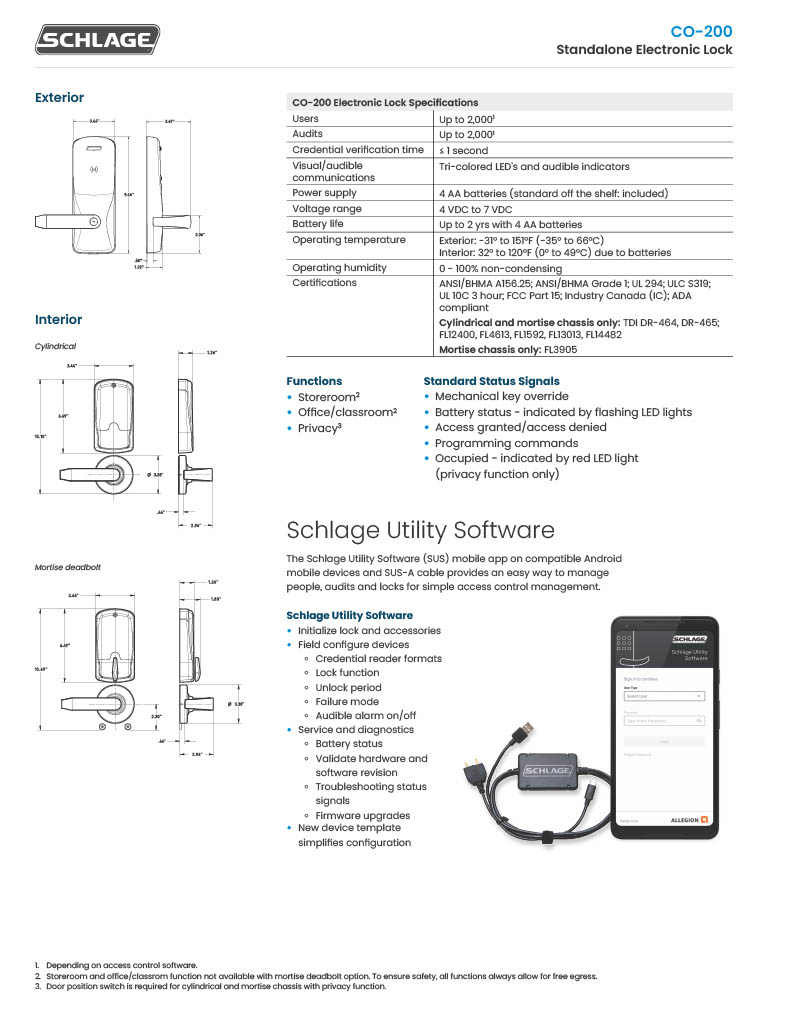

Users: 2000

Credential Verification Time: ≤ 1 second

Visual/Audible Communications Tri-colored LEDs & audible indicators

Power Supply: 4 AA batteries (standard off the shelf: included)

Battery Life: Up to 2 yrs with 4 AA batteries, Battery Status - indicated by blinking lights

Operating Temperature - Exterior -31 Degree to 151 Degree F (-35 Degree to 66 Degree C)

Operating Temperature - Interior 32 Degree to 120 Degree F (0 Degree to 49 Degree C) due to battery

Operating Humidity: 0 - 100% non-condensing

Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10 C, FCC Part 15, ADA and RoHS
