Schlage Electronic 47282796 SUS- A KIT Schlage Utility Software Programming Cable

Schlage Electronic SUS-A KIT Schlage Utility Software Programming Cable

Features and benefits:

Intuitive, free SUS mobile app  for Android devices.

 Single cable for Schlage AD and CO Series locks and select legacy devices.

 Facilitates initialization of locks and accessories.

Configures and tests devices.

Simplifies firmware updates.

Import/Export Device Configuration feature simplifies configuration process.

Ability to reclass Schlage AD  Series locks.

Manager and Operator user modes.

SUS mobile app and SUS-A cable are compatible with the following Schlage devices: AD-400/401/402 locks AD-300/301/302 locks AD-200/201/250 locks CO-200/220/250 locks AD Series readers PIM400, WPR400, WPR401, PIB300, WRI400 BE367/FE210 (SPED) locks CT5000 controller   If you require SUS functionality with other legacy Schlage electronic locks such as CM, CL, and KC2 please continue to use your existing HHD with SUS solution.

Overview:

The Schlage Utility Software (SUS) mobile app for Android devices is designed specifically for use with the SUS-A cable to set up and act as the link between access control so!ware and select Schlage electronic locks and accessories. This new SUS mobile app and cable replaces the legacy SUS and HHD solution.

The SUS and SUS-A cable are used with networked and o"ine locks to initialize and configure devices, test operational status, perform ongoing system maintenance and update device firmware.

In addition, for o"ine devices, the SUS solution is utilized to transfer access control data from the Schlage Express access control so!ware (such as authorized user lists) via the mobile device and cable to the locks or accessories. SUS is also utilized to download audit trail information from locks to the mobile device and then transfer that data to Schlage Express for analysis and storage.

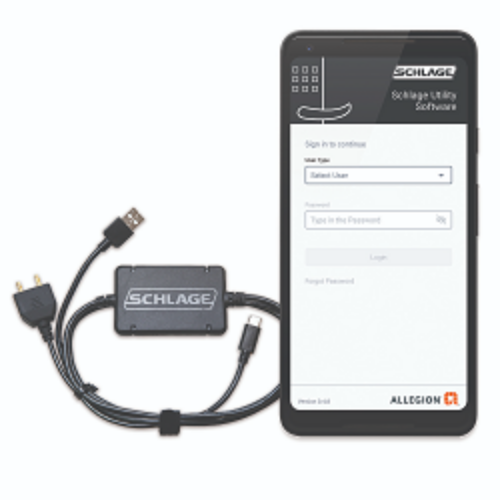

The intuitive screen layout of the free SUS mobile app provides easy navigation during use. The SUS-A cable is an all-in-one solution with separate connectors  USB-A for our USB enabled devices and a 2-pin serial connection for our serial enabled devices  to connect the mobile device to the locks.

**

Model:Schlage HHDKIT, HHD KIT, HHD-KIT

**

Android Device Compatibility and Recommendations:

For optimum performance, the SUS mobile app has been tested with flagship Android devices from major manufacturers using Android Pie 9.0 or newer (minimum SDK 28) including:- Google Pixel 3 or newer - Moto G6 or newer - Samsung S8 or newer NOTE:- Mobile phones are not available for purchase from Allegion - Apple devices are not compatible with the SUS and SUS-A cable solution

Lock/Device Required Minimum FirmwareDevice firmware needs to be at a minimum version to function correctly with the SUS mobile app and SUS-A cable.- AD Series: AD.A.130 - CO Series: CO.A.30 - SPED: V1.30

Capabilities - Initialize lock and accessories - Field configure devices - Credential reader formats - Lock function - Unlock period - Failure mode - Audible alarm on/off

• Offline devices
• Manage up to 100 unique door files

• Retrieve audit trails from up to 100 devices

• Networked devices

• Communication settings

• Validate status monitor

• Service and diagnostics

• Battery status
• Validate hardware and software revision  Troubleshooting status signals  - Firmware upgrades
