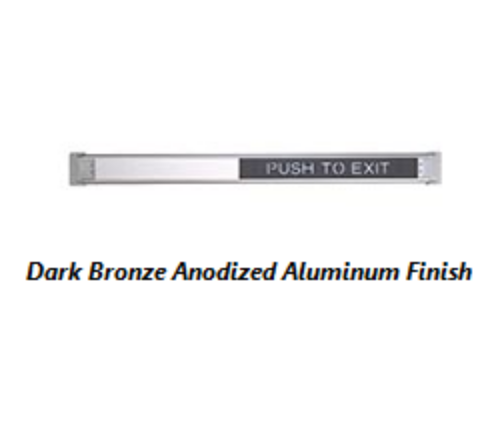

Schlage Electronics 692 36 313RD SmartBar Request-to-Exit Device, Narrow Stile Pushpad, Low Profile, 36", Red Lettering, Dark Bronze

Schlage Electronics 692 36 313RD SmartBar Request-to-Exit Device, Narrow Stile Pushpad, Low Profile, 36", Red Lettering,  Dark Bronze

The 692 SmartBar is an electronic switching device with no moving parts, which serves as a non-latching request-to-exit device. It allows one motion egress at doors equipped with an electronic locking device, most commonly an electromagnetic lock, with no prior knowledge required by the user. Touching the SmartBar at any point on the bar activates internal circuitry which controls power to the locking device. No moving parts results in low maintenance and long life.

The 692 SmartBar provides two directionally opposed infrared detection circuits to sense an exit request. As a person touches the bar, the light beam is broken. The patentpending redundant system provides a high level of life safety and peace of mind to the end user.

An audible alarm is standard. This feature provides a security alarm to alert when there is a prolonged unlocked condition caused by a continued break in the light beam. This feature is desirable in applications requiring monitoring of security conditions or delayed egress.

Dual Infrared detection circuits, patent-pendingNo moving parts - one motion egressAudible alarm standard, alerts prolonged unlock conditionStandard Double Pole, Double Throw switch utilized**Features and benefits:

**

Patent-pending infrared detection along bar releases locking device when light beam is brokenOne motion egress when installed with electromagnetic or electrified locksLarge "PUSH TO EXIT" lettering provides obvious exit indication with glow-in-thedark optionLow profile provides ample clearance through the doorAudible alarm is standardLeft- or right-hand reverse (field reversible)Field sized or orderable for 36", 42" or 48" doorsFor aluminum, hollow metal and wood doorsNo moving parts for low maintenance and long lifeHeavy-duty aluminum extrusion with cast metal end caps for maximum durabilityQuick installation brackets/universal mounting system692 TouchBar electrical specifications:

Input voltage:  12 or 24 VDC maximum current draw .5 amps

Switch:  DPDT contacts rated 4 amps @ 30 VDC

Wiring:  8 conductor cable - 20 AWG (standard)

Door size:36"
