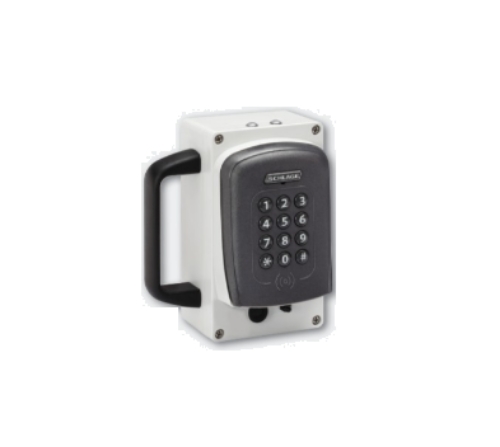

Schlage Electronics WPR400-DT AD Series Signal Tester, Portable

Schlage Electronics WPR400-DT AD Series Signal Tester, Portable

Features and benefits

• Fully compatible with Schlage AD Series credential reader modules & Panel Interface Modules.

• Reader options include multi-technology (reads both 13.56 MHz smart card and  125 kHz proximity), iClass compatible, magnetic stripe and keypad.

- Card reader options available with keypad  for multi-factor authentication.

• Cache mode option for o"ine applications.

• Field configurable to work as a wireless portable signal tester.

• Configured with the SUS Android mobile app and SUS-A Cable.

• LED indicators communicate valid (green) and invalid (red) credential status.

• Communicates to access control system via PIM400.

• FCC Part 15, Industry Canada (IC), RoHS.

• Comes with 8 AA off-the-shelf batteries.

Wireless portable reader specifications

Modulation / encryption:900 MHz spread spectrum, direct sequence, 10 channels AES-128 bit key.

Frequency range:902-928 MHz.

Credential verification time:1< 1 second.

Communication range:Up to 200 ! with obstructions (normal building);  up to 1000 ! clear line of sight.

RF interference avoidance:Configurable dynamic channel switching.

Data rate:40 kbps.

Operating temperature:0 C (32 F) to 49 C (120 F).

Humidity:0% to 100% non-condensing.

Battery type:8AA alkaline batteries.

Battery life:Up to 2 years at 40,000 card reads or PIN codes per year.

Dimensions (H x W x D, less reader):3.375" x 5.0"  x 6.25"  (8.57 cm x 12.7 cm 15.88 cm).

Weight:  (less reader)1.5 lb (0.68 kg).

Certifications:FCC Part 15, Industry Canada (IC), RoHS.

Additional accessories:Panel Interface Module (PIM400), SUS-A Cable used with SUS mobile app on compatible Android devices.
