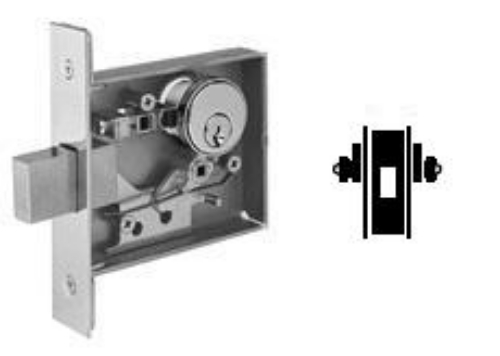

Schlage L462 Double Cylinder Lock

Double Cylinder Lock -ANSI:*E06061*

Deadbolt operated by key from either side

Applications:For commercial and institutional buildings: offices, schools, hospitals, and hotels where the finest in auxiliary mortise deadbolt locks are required.

Certifications:ANSI 156.5, 1992, Grade 1. UL Listed.

Keying:6-Pin tumbler with two nickel silver keys per lock. Keying options available are master keying, construction keying, and interchangeable. Spacing: Center line turn-piece to center line cylinder. 19/64" (29 mm)

Door Range:1-3/4" (44 mm) standard. 1 3/8" to 3-1/2" (35 mm - 89 mm) regular parts assembled to order. Specify door thickness.

Case Size:4 7/16" x 3 5/8" x 1" (113 mm x 92 mm x 25 mm)

Armored Front:1-1/4" x 5 19/32" x 7/32" (32 mm x 142 mm x 6 mm) standard.

Strikes:1 1/8" x 3 5/8" (29 mm x 92 mm), no lip furnished with dust box , standard. 1-1/4" x 4 7/8" (32 mm x 124 mm), no lip, available.

Backset:2-3/4" (70 mm) only.

Deadbolt:1" (25 mm) throw stainless steel.

Exceptional strength and durability.

?Steel lock case provides additional protection from physical attack.

?1"(25mm) throw stainless steel deadbolt provides addedresistance to kick-in attacks.

?Cylinder retainer adds strength and durability to resist cylinderattack.

?U.L. listed code applicable which is a recognition of quality.

Non-handed lock case.

Simplified installation providing a more flexible application.

Certifications:

ANSI 156.5-1992, Grade 1.Underwriter Laboratories, Inc.:Meets all requirements for U.L. listed door ratings.
