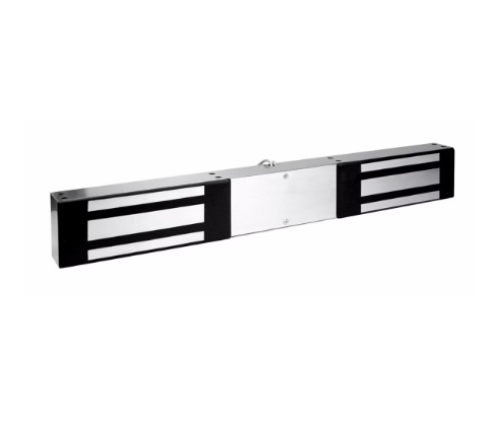

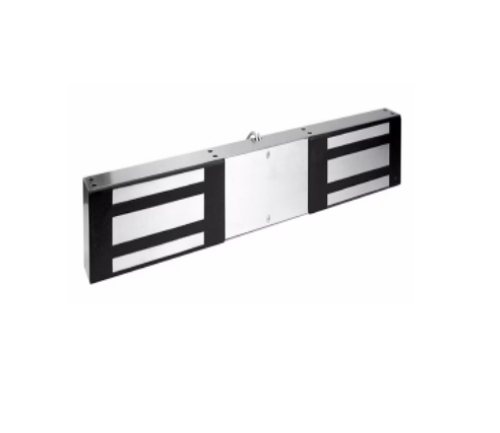

Securitron DM62BD Double Magnalock - Magnetic Bond Sensor (MBS) - Door Position Switch (DPS) - 1200 lbs

Securitron DM62BD Double Magnalock - Magnetic Bond Sensor (MBS) - Door Position Switch (DPS) - 1200 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Both locks can be controlled as one or individually Surface mounts easily with minimal tools Fully sealed electronics - tamper proof and weatherproof Noise suppression - no interference with sensitive electronics Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated for durability and rust resistance Eighteen inches [45.7cm] of jacketed, stranded conductor for each lock Automatic dual voltage - no field adjustment required MagnaCare Lifetime Replacement No Fault Warranty Efficent low power usage

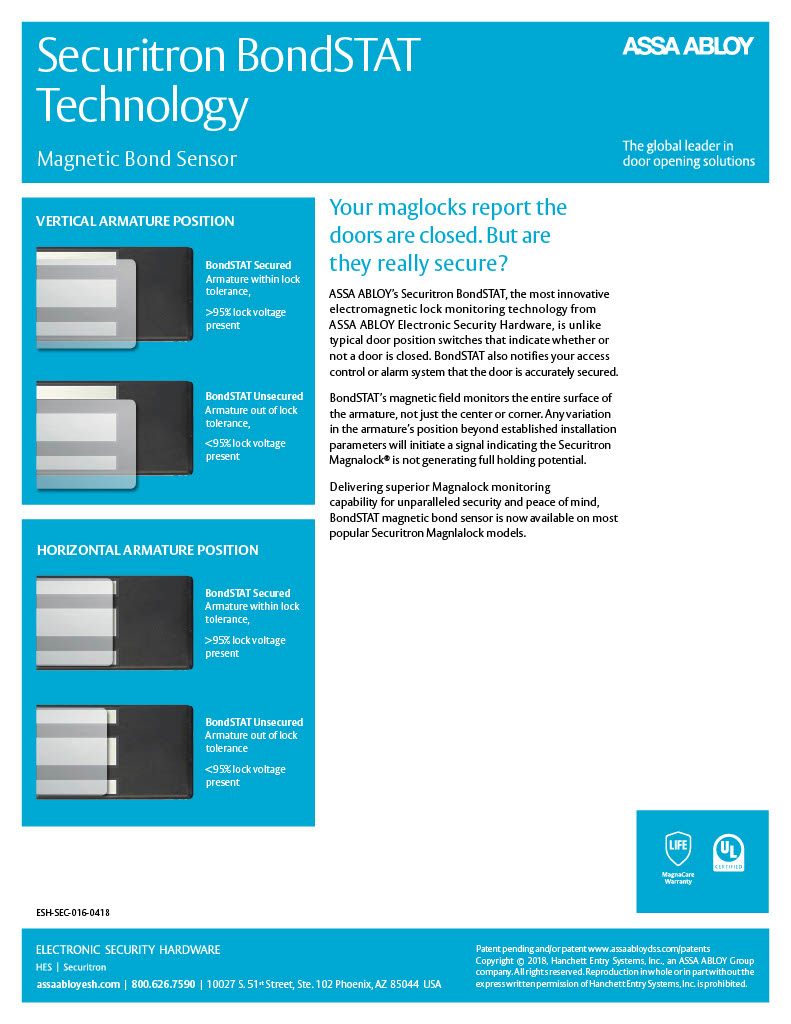

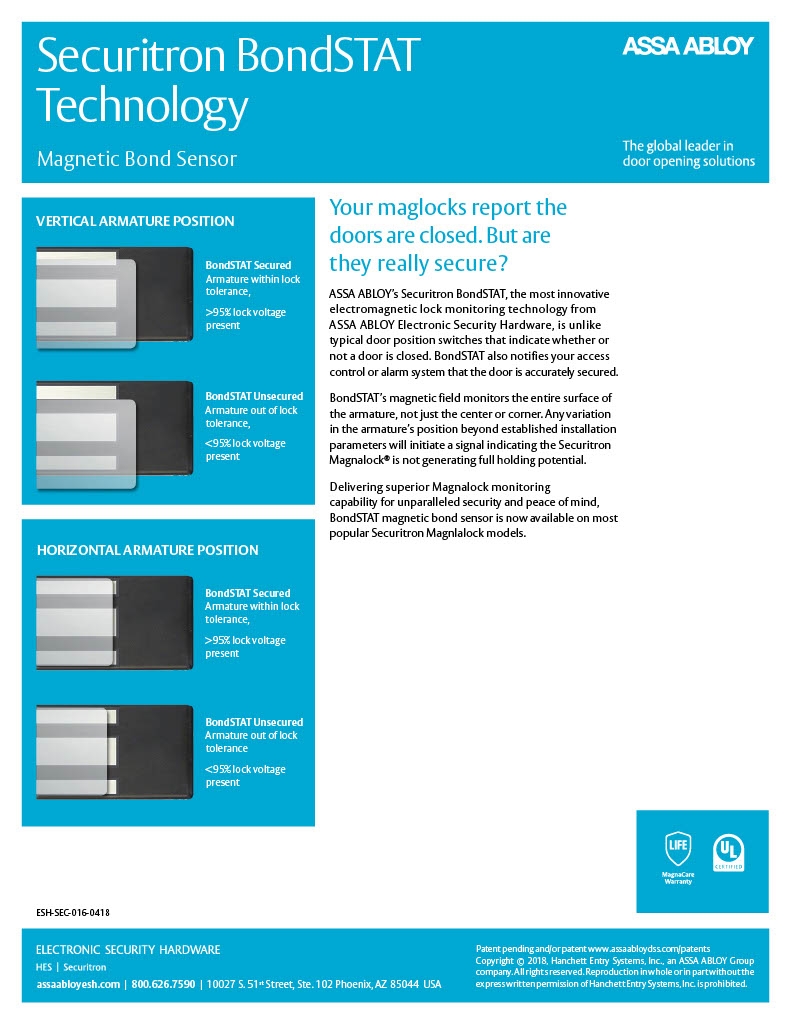

Description: Magnetic Bond Sensor (MBS): Magnetic Bond Sensor (MBS) delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

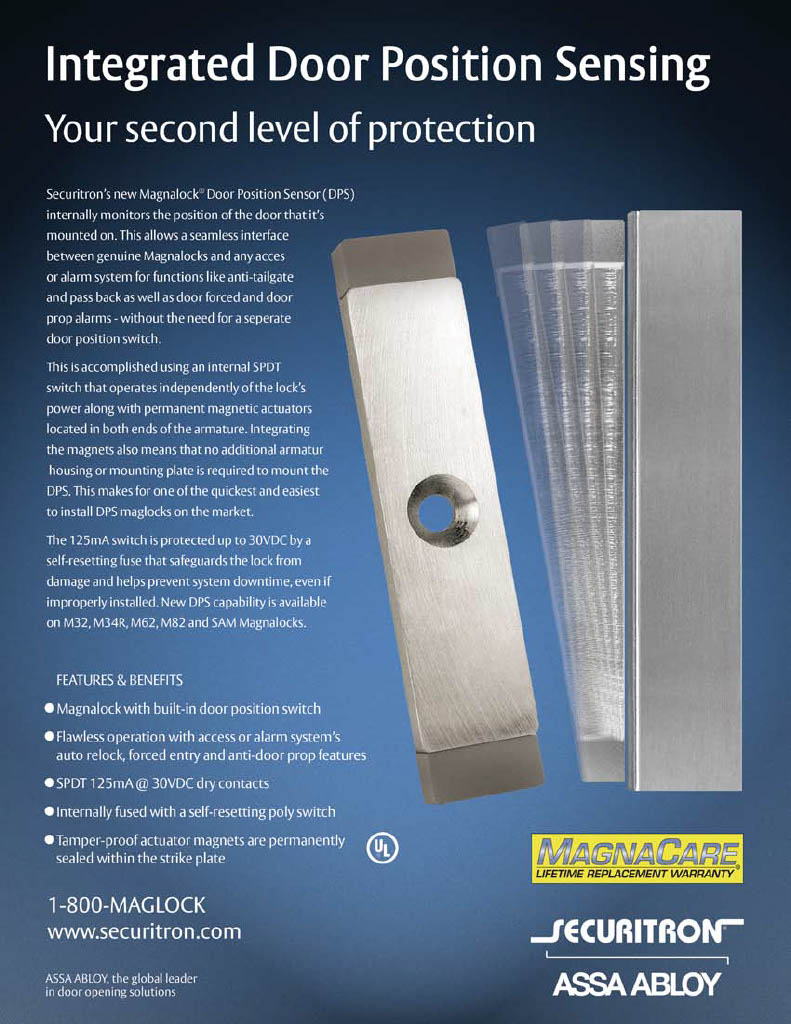

Door Position Switch (DPS): The Door Position Switch (DPS) provides a signal to an access control system indicating whether the door is open or closed.

Holding Force:1200 lbs. [544 kg] per lock

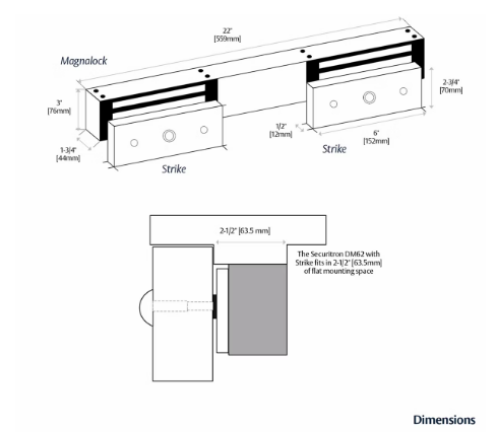

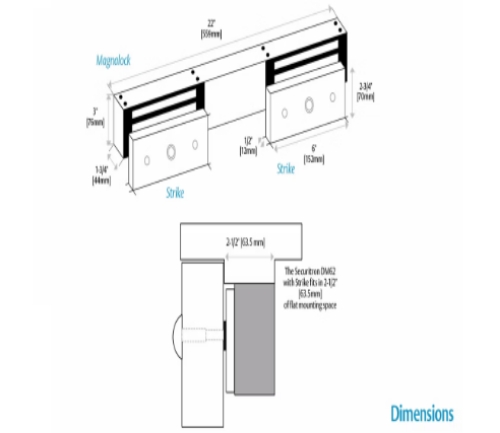

Dimensions: Magnalock: 22"L x 1-3/4"D x 3"H Strike: 6"L x 1/2"D x 2-3/4"H each

Current Draw and Voltage:250mA at 12VDC; 150mA at 24VDC per lock

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:16 lbs.

Finishes:US32D/630 - Satin Stainless Steel Finish

Model:DM62BD

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/BHMA 156.23, Grade 1; E08511-1000 NFPA 101 CSFM - California State Fire Marshal Approved NEMA: 4X IEC: IP66
