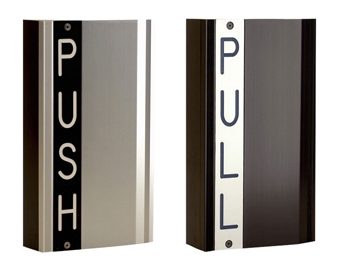

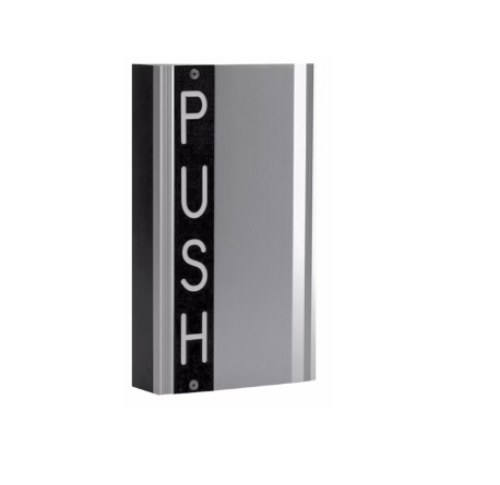

Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

Product Details

Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

Features:

For use on any push, pull or swing-through doorActivates a DPST 2 Amp rated relay when touched (no mechanical movement) which allows free egressBackup push button16ft. [4.8m] 22AWG 6 conductor cable and armored door cord includedOperates on either 12 or 24VDCAvailable ElectroLynx™ readyUL Listed

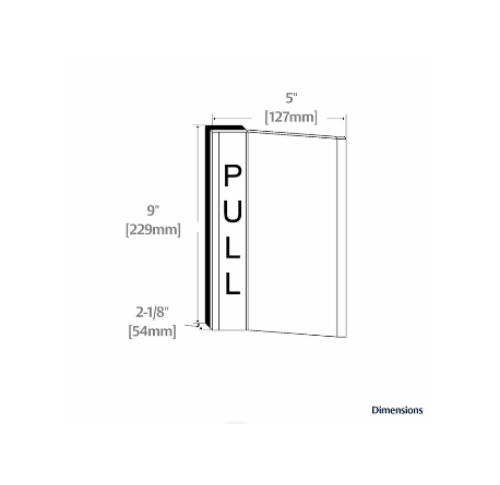

Dimensions: 5"Lx2-1/8"Dx9"H

Current Draw and Voltage: 40mA at rest; 25mA releasing

Voltage: 12 or 24VDC

Operating Temperature: +32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight: 3 lbs.

Finishes: CL - Clear Anodized

Model:TSHCL

Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

SKU: TSHCL

In Stock

$409.68

$569.00

You saved $159.32

About this item

The TSH is used for standard pulls on aluminum doors. It is employed to open inswinging doors or as an alternate push-open device for inswinging and outswinging doors, providing a different look on aluminum frame glass doors. Sized to cover up existing mounting holes. For indoor use only.

Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

Features:

For use on any push, pull or swing-through doorActivates a DPST 2 Amp rated relay when touched (no mechanical movement) which allows free egressBackup push button16ft. [4.8m] 22AWG 6 conductor cable and armored door cord includedOperates on either 12 or 24VDCAvailable ElectroLynx™ readyUL Listed

Dimensions: 5"Lx2-1/8"Dx9"H

Current Draw and Voltage: 40mA at rest; 25mA releasing

Voltage: 12 or 24VDC

Operating Temperature: +32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight: 3 lbs.

Finishes: CL - Clear Anodized

Model:TSHCL

Securitron TSH-CL
Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

Product code: TSHCL

In Stock

$569.00

$409.68

ANSI/UL 294 ListedCSA - C22.2 No.205 ListedCSFM - California State Fire Marshal ApprovedMEA - City of New York ApprovedCE:EN50091-1, EN 61000-6-2 Approved

Securitron TSH-CL
Securitron TSH-CL - Touch Sense Handle - Push/Pull - Clear Anodized

Product code: TSHCL

In Stock

$569.00

$409.68
