DSB - Dependable Touch and Mechanical Release for Superior Safety and Redundancy

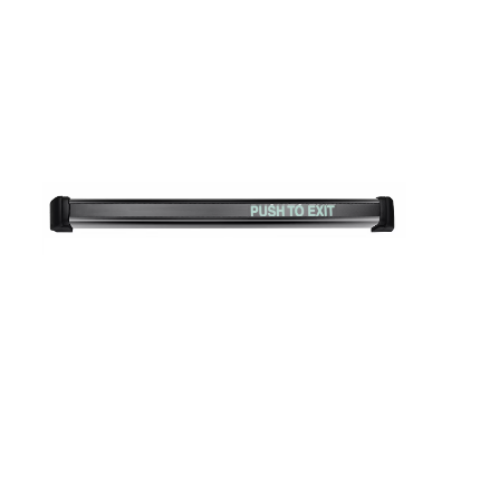

Securitron DSBBKI - Dual Sense Bar - Illuminated Sign - Black Anodized - 36"

Securitron DSBBKI - Dual Sense Bar - Illuminated Sign - Black Anodized - 36"

Product Details

Securitron DSBBKI - Dual Sense Bar - Illuminated - Black Anodized - 36"

illuminated "Push To Exit" via internal fiber optic strip

Features:

The most dependable exit device available for magnetically locked openingsLess than 1/8" mechanical movement and ultra-reliable touch sense technology working together in a single exit barStandard length: 36"Touch sensing and redundant movement-activated switches complies with current fire and life safety egress codesResistant to interference from radio frequency or electromagnetic frequency and external impact/ bounce attemptsCan be field cut to fit non-standard door widthsCircuit board is immune to electrostatic discharge - switching power supplies, proximity and garment readers and neon signsAll metal construction will stand up to rugged interior environments16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord includedAvailable ElectroLynx readyOperates on either 12 or 24VDCTested to 27,000 volts electrostatic dischargeMagnaCare Lifetime Replacement No Fault WarrantyUL Listed

Current Draw and Voltage: Dual Sense Bar Only - 24mA Dual Sense Bar with Illumination - 44mA

Voltage: 12 or 24VDC

Operating Temperature: +32 to +120F [0 to +49C] Recommended for indoor use

Shipping Weight: 6 to 8 lbs. depending on length

Finishes: BK - Black anodized

Model:DSBBKI

Securitron DSBBKI - Dual Sense Bar - Illuminated Sign - Black Anodized - 36"

Name: Securitron DSBBKI - Dual Sense Bar - Illuminated Sign - Black Anodized - 36"
SKU: DSBBKI
Price: 578.48 USD
Availability: InStock

SKU: DSBBKI

In Stock

Chat

$578.48

About this item

The Dual Sense Bar (DSB) is for use on magnetically locked, non-fire-rated doors. Specifically designed to address the most current building and life safety codes, the DSB features two independent switch circuits to release the lock. Simply touching the bar or engaging its mechanical movement will allow free egress. For indoor use only, the DSB can be installed on metal, aluminum or wood doors of all types. Meets "no special tools or knowledge" requirements.
