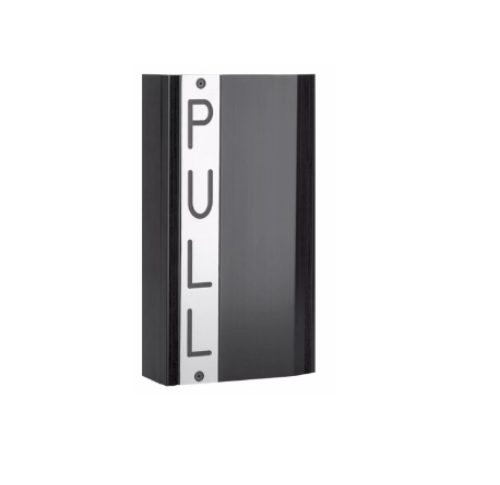

Securitron TSH-BK - Touch Sense Handle - Push/Pull - Black Anodized

Securitron TSH-BK - Touch Sense Handle - Push/Pull - Black Anodized

Features:

For use on any push, pull or swing-through doorActivates a DPST 2 Amp rated relay when touched (no mechanical movement) which allows free egressBackup push button16ft. [4.8m] 22AWG 6 conductor cable and armored door cord includedOperates on either 12 or 24VDCAvailable ElectroLynx™ readyMagnaCare Lifetime Replacement No Fault WarrantyUL Listed

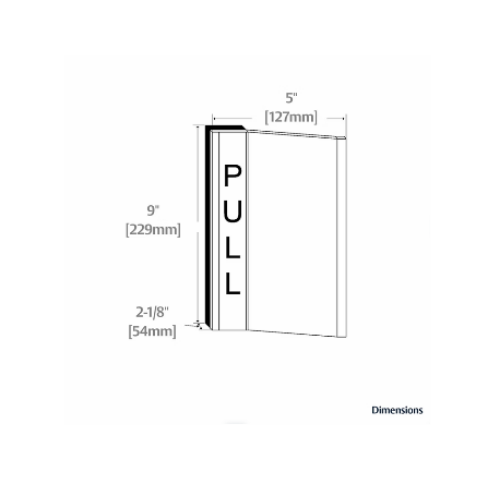

Dimensions: 5"Lx2-1/8"Dx9"H

Current Draw and Voltage: 40mA at rest; 25mA releasing

Voltage: 12 or 24VDC

Operating Temperature: +32 to +110F [0 to +43C] Recommended for indoor use

Shipping Weight: 3 lbs.

Finishes: BK - Black Anodized

Model:TSHBK

ANSI/UL 294 ListedCSA - C22.2 No.205 ListedCSFM - California State Fire Marshal ApprovedMEA - City of New York ApprovedCE:EN50091-1, EN 61000-6-2 Approved
