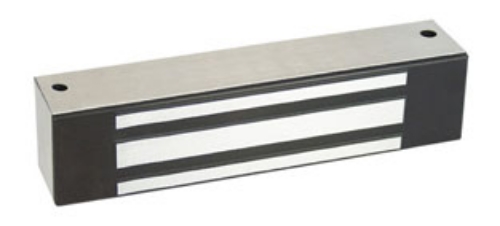

Securitron M32D Magnalock - Door Position Switch (DPS) - 600 lbs

The Securitron M32D Magnalock is a 600 lb direct-mount electromagnetic lock with a factory-installed Door Position Switch. It sends a clean dry contact signal to your access control panel the moment the door opens or closes, so you're not wiring a separate recessed contact later. Model M32D runs on automatic 12/24VDC, ships with Securitron's MagnaCare Lifetime No-Fault Warranty, and carries Grade 1 ANSI/BHMA certification along with UL 10C and UL 294 listings. It's in stock today at American Locksets and ready for same-day shipping.

What Is the Securitron M32D Magnalock

The M32D is part of Securitron's M32 Magnalock series, a direct-mount maglock family built for high-traffic interior openings inside a secured perimeter. You get 600 lbs of pull-apart holding force packed into a slim 8-inch housing. The "D" in the part number stands for Door Position Switch, which is wired independently from the main 12/24VDC power leads on the jacketed 10-foot cable. The unit mounts directly to the door frame using steel machine screws threaded into blind finishing nuts, so there's no bracket kit required for a standard inswing opening.

Securitron M32D Specifications

• Holding force: 600 lbs (272 kg)

• Voltage: automatic dual 12/24VDC, no jumpers or field adjustment

• Current draw: 300mA at 12VDC, 150mA at 24VDC

• Operating temperature: -40°F to +140°F (-40°C to +60°C)

• Magnalock dimensions: 8"L x 1-5/8"D x 1-7/8"H

• Strike plate: 6-1/4"L x 1/2"D x 1-5/8"H

• Cable: 10 ft jacketed, stranded, fully sealed conductor

• Finish: US32D/630 Satin Stainless Steel

• Ratings: UL 10C, ANSI/UL 294, ANSI/BHMA A156.23 Grade 1, CSFM, NYC MEA, NEMA 4X, IEC IP66, CE

How the M32D Door Position Switch Works

The DPS on the M32D is a dry contact reed switch that changes state based on whether the armature is seated against the magnet face. When the door closes and the armature makes full contact, the switch reports secure. When the door opens, the contact breaks and your access control panel logs the event. You wire the DPS leads back to a monitoring zone on the panel as a standard contact closure. Because the sensor is integrated into the maglock housing, you skip the labor of drilling and wiring a separate recessed door contact, and you eliminate one more point of failure on the opening.

Best Applications for the Securitron M32 Maglock

The M32 series is designed for traffic control inside a secured perimeter. Think interior corridors, stockrooms, IT closets, back-of-house retail doors, monitored school hallways, clinic passageways, and municipal building checkpoints. It's not rated for perimeter entry doors facing a forced-entry threat. For outdoor gates or higher-assault environments, step up to the Securitron M62 or M82B. Where the M32D earns its reputation is high-cycle openings that need rock-solid monitoring and near-zero maintenance for the life of the building.

Why Buy the Securitron M32D from American Locksets

We've stocked Securitron magnetic locks since 2001, and the M32D ships the same day. At $366.96, this order qualifies for free shipping on all orders over $300, so the unit ships to you at no extra cost. You can add matching M32 accessories from the same page, including DC-32 dress covers, ZA-32 adjustable Z-brackets for inswing doors, ASB-32 aluminum shim brackets, and CWB-32 concrete or wood frame brackets. Every M32D comes with the Securitron MagnaCare Lifetime No-Fault Replacement Warranty.
