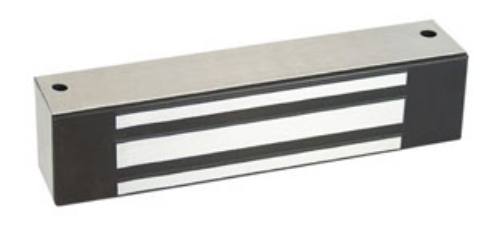

Securitron M32F Magnalock - Face Drilled - 600 lbs

Securitron M32F Magnalock - Face Drilled - 600 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Fully sealed and conformal coated for weatherproof operations Sealed 10 ft [3.05m] jacketed, stranded conductor cable Patented instant release circuit - no residual magnetism Noise Suppression - no interference with sensitive electronics Surface mounts easily with mounting bracket using minimal tools Internal wire access chamber Mounted using steel machine screws into blind finishing nuts Efficent, low power usage All ferrous metal surfaces plated to MIL specification Automatic dual voltage - no field adjustment required Dress Covers available MagnaCare Lifetime Replacement No Fault Warranty UL Listed

Description: Face Drilled: Face Drilled provide the holes for the mounting bolts through the face of the magnet in a front-to-back orientation rather than through the magnet bottom-to-top.

Holding Force:600 lbs [272kg]

Dimensions: Magnalock: 8"L x 1-5/8"D x 1-7/8"H Strike: 6-1/4"L x 1/2"D x 1-5/8"H

Current Draw and Voltage:300mA at 12VDC; 150mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:6 lbs.

Finishes:US32D/630 - Satin Stainless Steel , CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M32F

? UL 10C Listed ? CAN4-S104, CAN/ULC - S533 Listed ? ANSI/UL 294 Listed ? CSA - C22.2 No 205 Listed ? ANSI/BHMA 156.23, Grade 1; E08501-500 ? NFPA 101 ? CSFM - California State Fire Marshal Approved ? MEA - City of New York Approved ? CE:EN50091-1, EN 61000-6-2 Approved ? NEMA: 4X ? IEC: IP66
