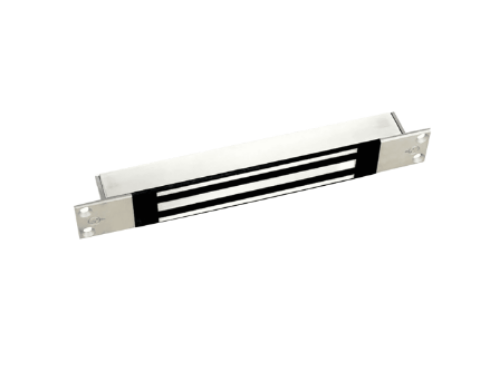

Securitron M34RB Magnalock - Recessed - Magnetic Bond Sensor (MBS) - 500 lbs

Securitron M34RB Magnalock - Recessed - Magnetic Bond Sensor (MBS) - 500 lbs

Features: Patented instant release circuit - no residual magnetism Recessed for aesthetically appealing finish Fully sealed electronics - tamper proof and weatherproof All ferrous metal surfaces plated to MIL specification Ten feet [3.05m] of jacketed, stranded conductor Noise suppression - no interference with sensitive electronics Automatic dual voltage - no field adjustment required Efficient low power usage MagnaCare Lifetime Replacement No Fault Warranty UL Listed

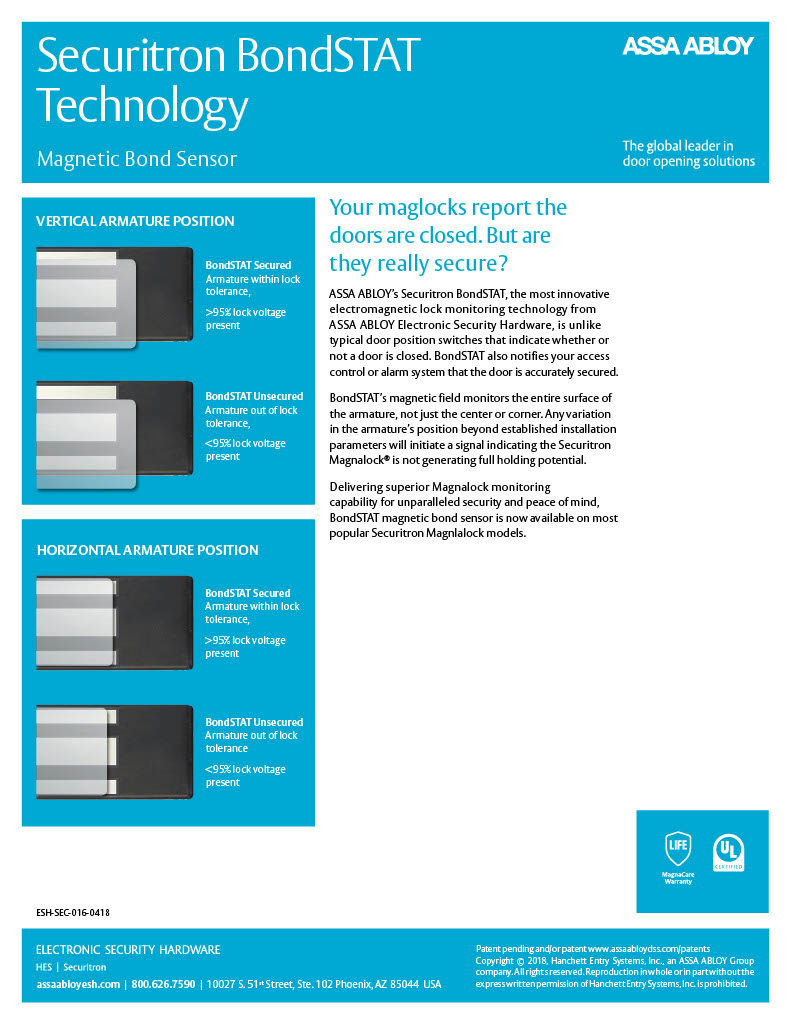

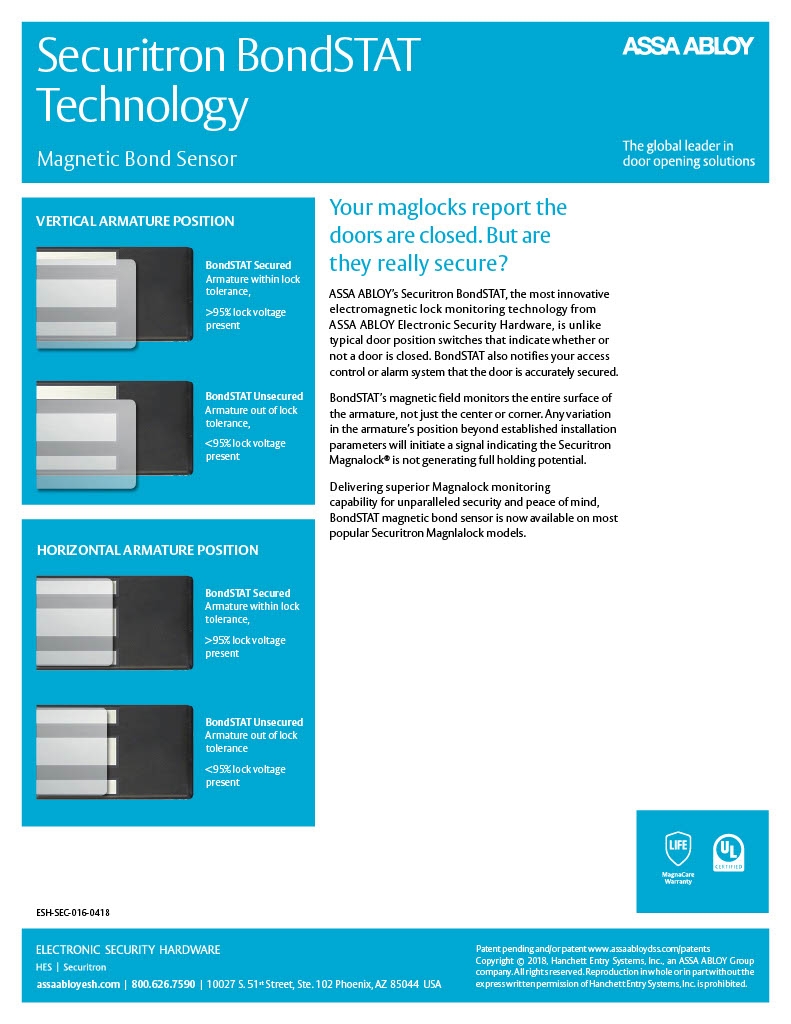

Description: Magnetic Bond Sensor (MBS): Magnetic Bond Sensor (MBS) delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

Holding Force:500 lbs. [227 kg]

Dimensions: Magnalock: 10-1/2"L x 1-1/8"D x 1-1/2"H Strike: 6-3/8"L x 1/2"D x 1-7/16"H

Current Draw and Voltage:320mA at 12VDC; 170mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:5 lbs

Finishes:US32D/630 - Satin Stainless Steel

Model:M34RB

? UL 10C Listed ? CAN4-S104, CAN/ULC - S533 Listed ? CSFM - California State Fire Marshal Approved ? CE:EN 50091-1, EN 61000-6-2 Approved ? NEMA:4X ? IEC:IP66
