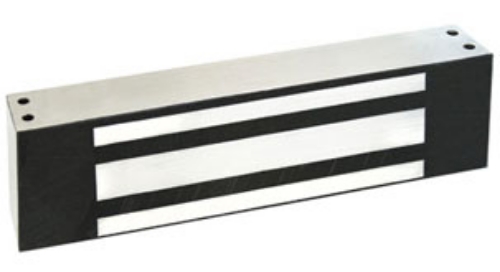

Securitron M82FB Magnalock - Face Mount - Magnetic Bond Sensor (MBS) - 1800 lbs

Securitron M82FB Magnalock - Face Mount - Magnetic Bond Sensor (MBS) - 1800 lbs

Features: Ultra-secure Direct Mount to the door frame for strength and reliability Patented instant release circuit - no residual magnetism Both locks can be controlled as one or individually Surface mounts easily with minimal tools Fully sealed electronics - tamper proof and weatherproof Noise suppression - no interference with sensitive electronics Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated for durability and rust resistance Sealed 10ft [3.05m] jacketed, stranded conductor for each lock Automatic dual voltage - no field adjustment required MagnaCare Lifetime Replacement No Fault Warranty Universal threaded conduit fitting is 1/2" female - 3/4" male Efficent low power usage

Description: Face Mount: Face Mount provide the holes for the mounting bolts through the face of the magnet in a front-to-back orientation rather than through the magnet bottom-to-top.

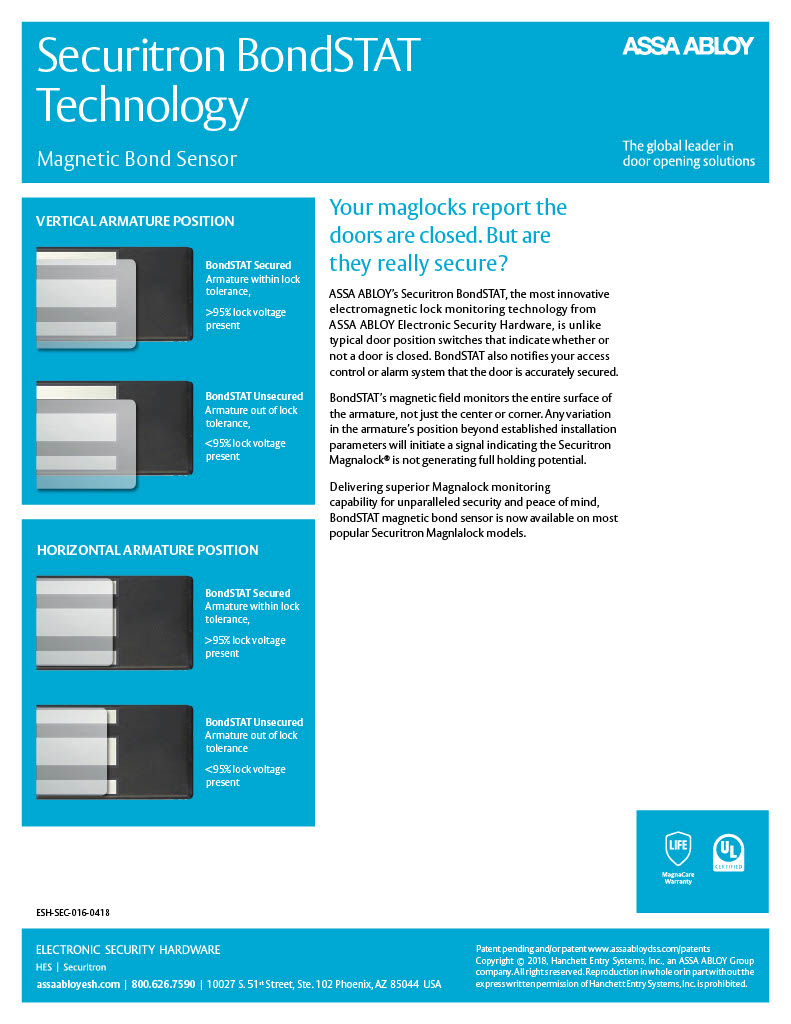

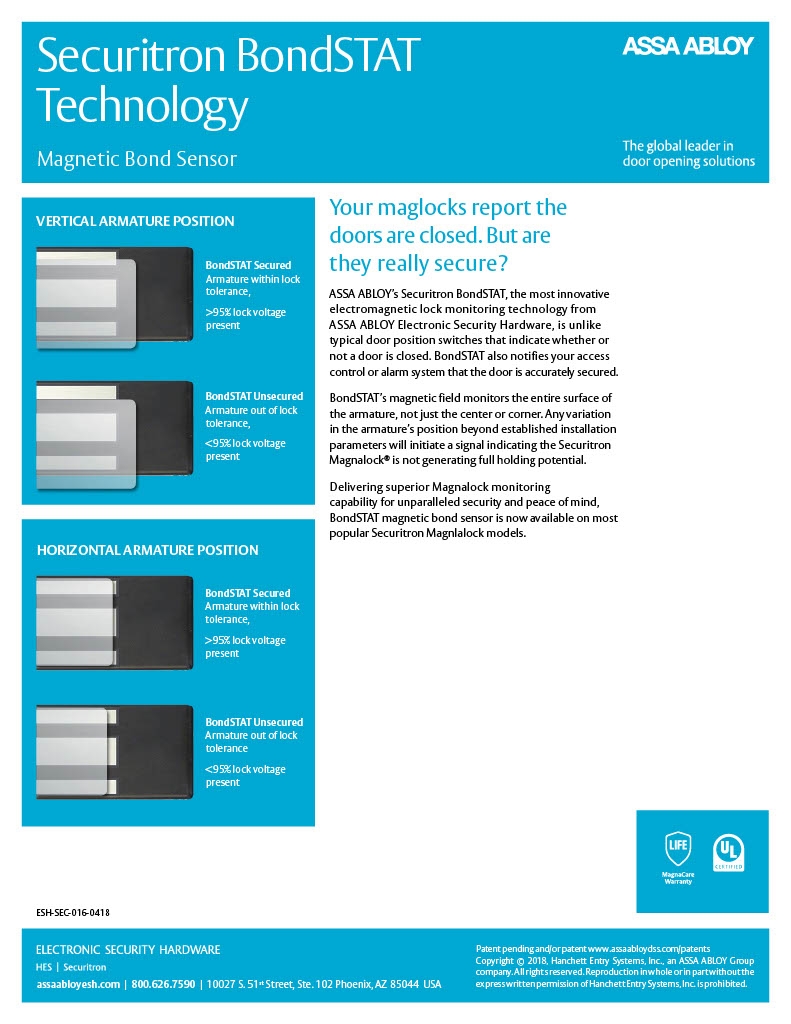

Magnetic Bond Sensor (MBS): Magnetic Bond Sensor (MBS) delivers unparalleled peace of mind by detecting an armature plate and notifying access control and/or alarm systems that a door is properly secured.

Holding Force:1800 lbs [816kg]

Dimensions: Magnalock: 12"L x 1-3/4"D x 3"H Strike: 9"L x 1/2"D x 2-3/4"H

Current Draw and Voltage:350mA at 12VDC; 200mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:16 lbs.

Finishes:US32D/630 - Satin Stainless Steel, CL - Clear (Dress Cover), BK - Black (Dress Cover), US32/629 - Polished Stainless (Dress Cover), US03/605 - Polished Brass (Dress Cover)

Model:M82FB

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed ANSI/BHMA 156.23, Grade 1; E08501-1500 NFPA 101 CSFM - California State Fire Marshal Approved CE:EN 50091-1, EN61000-6-2 NEMA: 4X IEC: IP66
