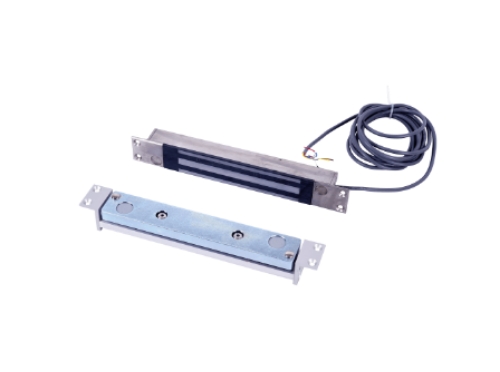

Securitron SAM Shear Magnalock - Self Aligning - Hidden Strength at Any Angle for Any Application - 1200 lbs

Securitron SAM Shear Magnalock - Self Aligning - Hidden Strength at Any Angle for Any Application - 1200 lbs

Features: Secure mounted to door frame for strength and reliability Patented instant release circuit - no residual magnetism Both locks can be controlled as one or individually Surface mounts easily with minimal tools Fully sealed electronics - tamper proof and weatherproof Noise suppression - no interference with sensitive electronics Mounted using steel machine screws into blind finishing nuts All ferrous metal surfaces plated for durability and rust resistance Sealed 10ft [3.05m] jacketed, stranded conductor for each lock Automatic dual voltage - no field adjustment required MagnaCare Lifetime Replacement No Fault Warranty Efficent low power usage

Holding Force:1200 lbs. [544 kg]

Dimensions: Magnalock: 10-7/8"L x 1-3/16"D x 1-1/2"H Strike: 10-7/8"L x 1-7/16"D x 1-1/2"H

Current Draw and Voltage:320mA at 12VDC; 170mA at 24VDC

Operating Temperature:-40 to +140F [-40 to +60C]

Shipping Weight:6 lbs.

Finishes:US32D/630 - Satin Stainless Steel finish

Model:SAM

 UL 10C Listed CAN4-S104, CAN/ULC - S533 Listed ANSI/UL 294 Listed ANSI/BHMA 156.23, Grade 1; E08561-1000, E08571-1000, E08581-1000, E08591-1000 CSFM - California State Fire Marshal Approved CE:EN 50091-1, EN61000-6-2 NEMA: 4X IEC: IP66 Patent Numbers: 6,007,119; 6,135,515; 1,021,633; 741,880; ZL98809925X
