Precision FL2303 Apex Fire Rated Mortise Exit Device, Key Retracts Latchbolt

Precision FL2303 Apex Fire Rated Mortise Exit Device, Key Retracts Latchbolt

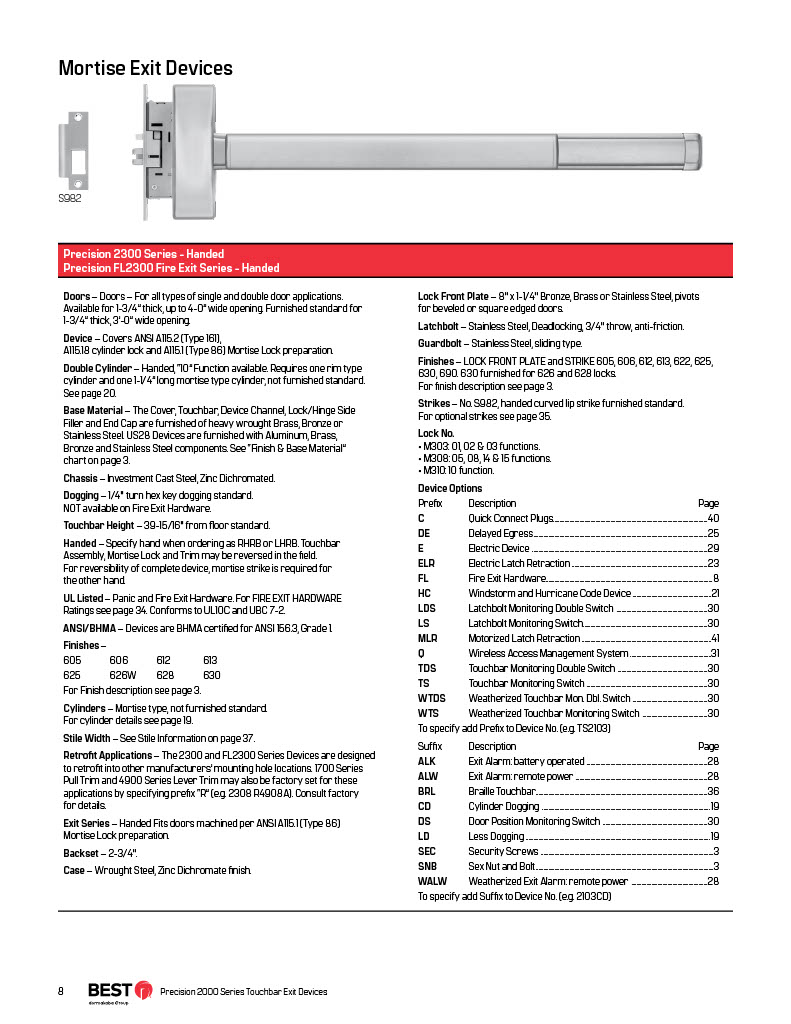

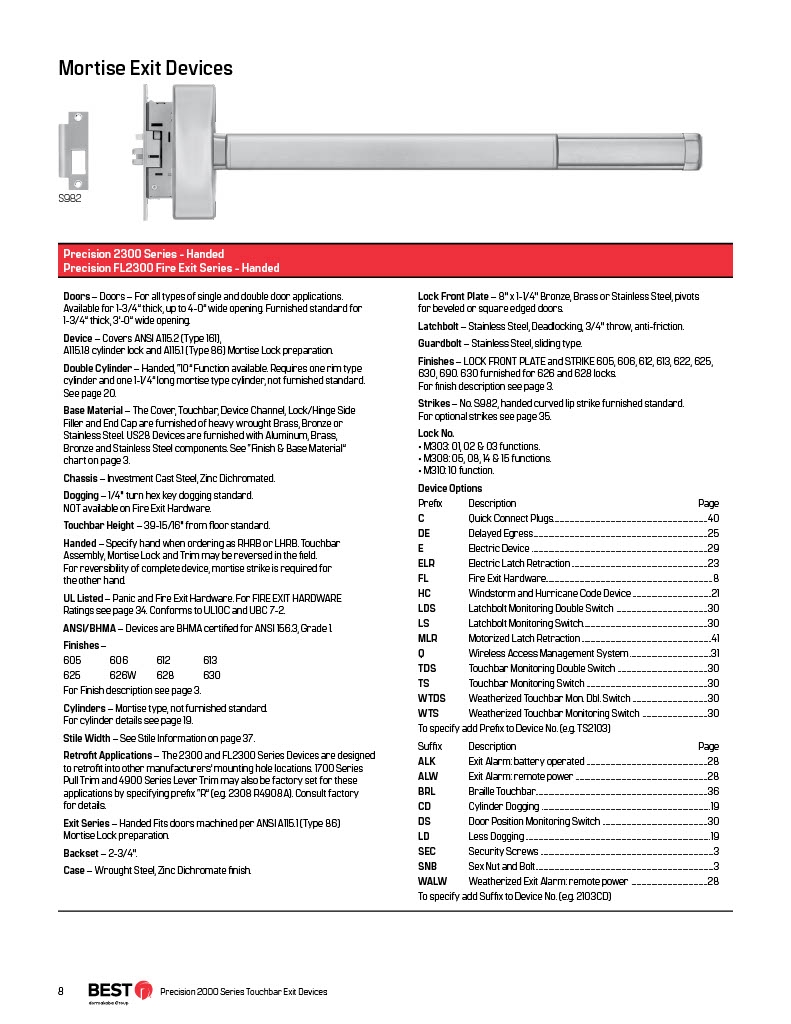

1-Page8-PHI-CATALOG

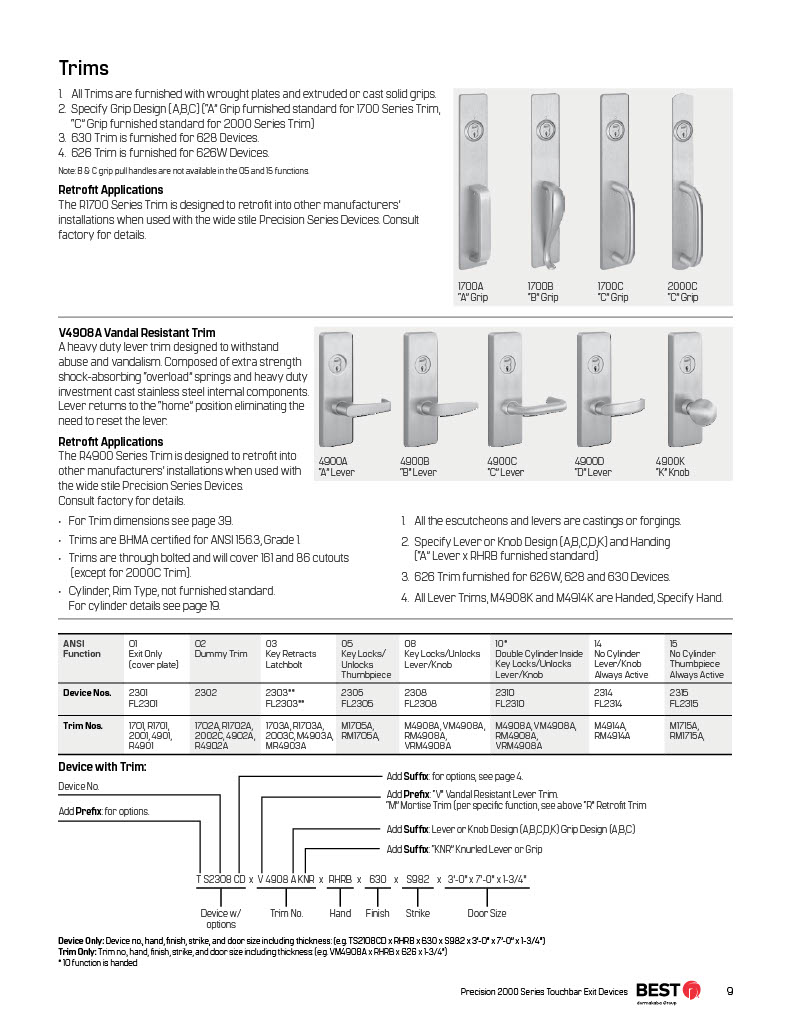

1-Page9-PHI-CATALOG

1-Page8-PHI-CATALOG

1-Page9-PHI-CATALOG

Product Details

Precision FL2303 Apex Fire Rated Mortise Exit Device - Key Retracts Latchbolt

Functions(models) 2301,2302,2303 are field selectable. The “03" function is furnished standard.

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.1 (Type 86) Mortise Lock preparation

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

UL Listed: Panic and Fire Exit Hardware.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Backset:2-3/4".

Case:Wrought Steel, Zinc Dichromate finish.

Lock front plate:8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt:Stainless Steel, sliding type.

Strikes:No. S982, handed curved lip strike furnished standard

Stile Width:See Catalog Page # 36

Model:Stanley-Precision FL2303-LHR-630-36, FL2303-LHR-606-48 , FL2301-LHR-630-36 , FL2302-LHR-630-36, FL2303-RHR-630-36, FL2303-RHR-606-48 , FL2301-RHR-630-36 , FL2302-RHR-630-36

Precision FL2303 Apex Fire Rated Mortise Exit Device, Key Retracts Latchbolt

SKU: FL2303

In Stock

$1,843.38

$3,234.00

You saved $1,390.62

About this item

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for it’s aesthetic design and efficient engineering.

Resources

No resources added to this product.

Precision FL2303 Apex Fire Rated Mortise Exit Device - Key Retracts Latchbolt

Functions(models) 2301,2302,2303 are field selectable. The “03" function is furnished standard.

Description and Features:

Door Sizes: 36" - 2'-7" to 3' Door Width ( If Required, cut to size in the field)

Device:Covers ANSI A115.1 (Type 86) Mortise Lock preparation

Base Material:The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.

Chassis:Investment Cast Steel, Zinc Dichromated.

UL Listed: Panic and Fire Exit Hardware.

ANSI/BHMA: Devices are BHMA certified for ANSI 156.3, Grade 1.

Fits doors machined per ANSI A115.1 (Type 86) Mortise Lock preparation.

Backset:2-3/4".

Case:Wrought Steel, Zinc Dichromate finish.

Lock front plate:8" x 1-1/4" Bronze, Brass or Stainless Steel, pivots for beveled or square edged doors.

Latchbolt:Stainless Steel, Deadlocking, 3/4" throw, anti-friction.

Guardbolt:Stainless Steel, sliding type.

Strikes:No. S982, handed curved lip strike furnished standard

Stile Width:See Catalog Page # 36

Model:Stanley-Precision FL2303-LHR-630-36, FL2303-LHR-606-48 , FL2301-LHR-630-36 , FL2302-LHR-630-36, FL2303-RHR-630-36, FL2303-RHR-606-48 , FL2301-RHR-630-36 , FL2302-RHR-630-36

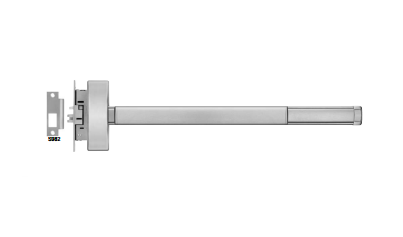

FL2301

Precision FL2303 Apex Fire Rated Mortise Exit Device, Key Retracts Latchbolt

Product code: FL2303

In Stock

$3,234.00

$1,843.38

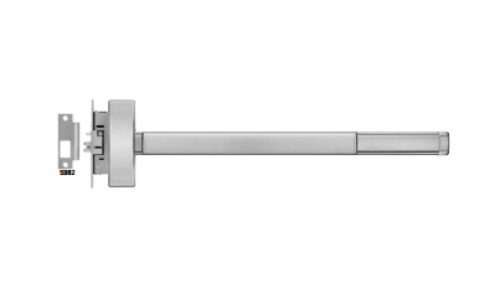

FL2301
