Stanley QDC212 Grade 1 Heavy Duty Door Closer - Fully Adjustable - Tri-Pack Arm with Hold-Open

Tell QDC212-F Grade 1 Heavy Duty Door Closer - Fully Adjustable - Tri-pack arm with Hold-Open (Non-handed) - Full Size Cover

Function:

QDC211: Tri-pack armwith Hold-Open (non-handed).

Slim, but heavy duty. Constructed with cast aluminum, the QDC200 series combines a slim design with exceptional durability, making it a great choice for high-traffic, full glass doors.

Easy to retrofit. There's no need to re-prep your door. The QDC200 has the same footprint as the Norton 8000 series, so it's a simple offand-on exchange.

Industry-leading warranty. Each QDC200 closer comes with a lifetime mechanical warranty and a three-year warranty on finish.

Exceeds certification standards. The QDC200 is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements.

Outstanding versatility. We engineered the QDC200 series to be fully adjustable and usable on both interior and exterior doors. All-weather fluid, a variety of feature options, and nonhanded and universal mount flexibility make it easy to stock and use the QDC200 in a wide variety of applications.

Premium performance standard. Get premium performance options like delayed action and a back check valve standard with the QDC200 series.

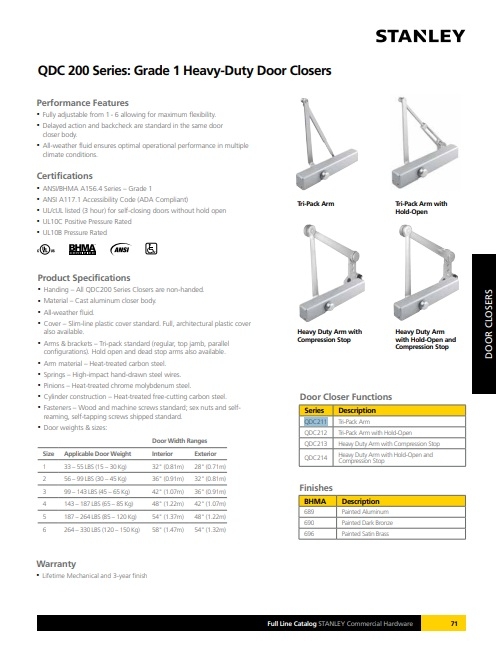

QDC200 Specifications:

Certifications: ANSI/BHMA A156.4 Series-Grade 1. ANSI A117.1 Accessibility Code (ADA Compliant). UL/cUL listed (3 hour) for self-closing doors without hold-open. UL10c positive pressure rated. UL10b pressure rated.

Body: Cast aluminum.

Covers: Full-size architectural plastic and slim-line plastic available.

Arms & brackets: Tri-pack standard; hold-open and dead stop arms optional.

Arms: Heat-treated carbon steel.

Springs: High-impact hand-drawn steel wire.

Pinions: Heat-treated chrome molybdenum steel.

Cylinders: Heat-treated free-cutting carbon steel.

Fasteners: Wood and machine screws standard; sex nuts and self-reaming, self-tapping screws standard.

Door Weights and Sizes: 1: 33-55 lbs (15-30 kg) weight; 32" (0.81 m)-28" (0.71 m) width. 2: 56-99 lbs (30-45 kg) weight; 36" (0.91 m)-32" (0.81 m) width. 3: 99-143 lbs (45-65 kg) weight; 42" (1.07 m)-36" (0.91 m) width. 4: 143-187 lbs (65-85 kg) weight; 48" (1.22 m)-42" (1.07 m) width. 5: 187-264 lbs (85-120 kg) weight; 54" (1.37 m)-48" (1.22 m) width. 6: 264-330 lbs (120-150 kg) weight; 58" (1.47 m)-54" (1.32 m) width.

Door Closer Functions: QDC211: Tri-pack arm (non-handed). QDC212: Tri-pack arm with hold-open (non-handed). QDC213: Heavy-duty arm with compression stop (non-handed). QDC214: Heavy-duty arm with hold-open and compression stop (non-handed).

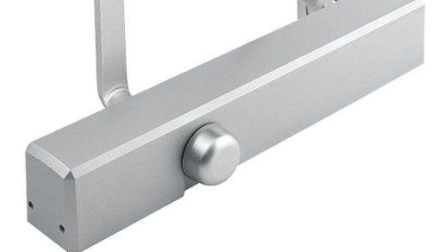

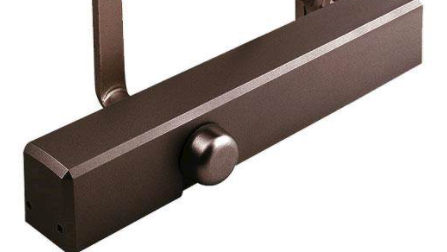

Finishes: 689: Painted Aluminum. 690: Painted Duranodic Bronze. 696: Painted Satin Brass.

Warranties: Lifetime mechanical. Three-year finish.
