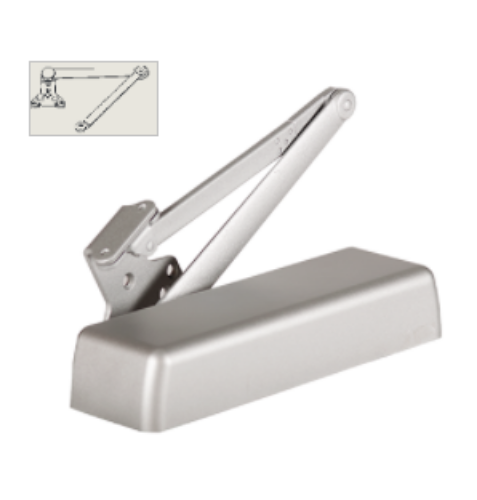

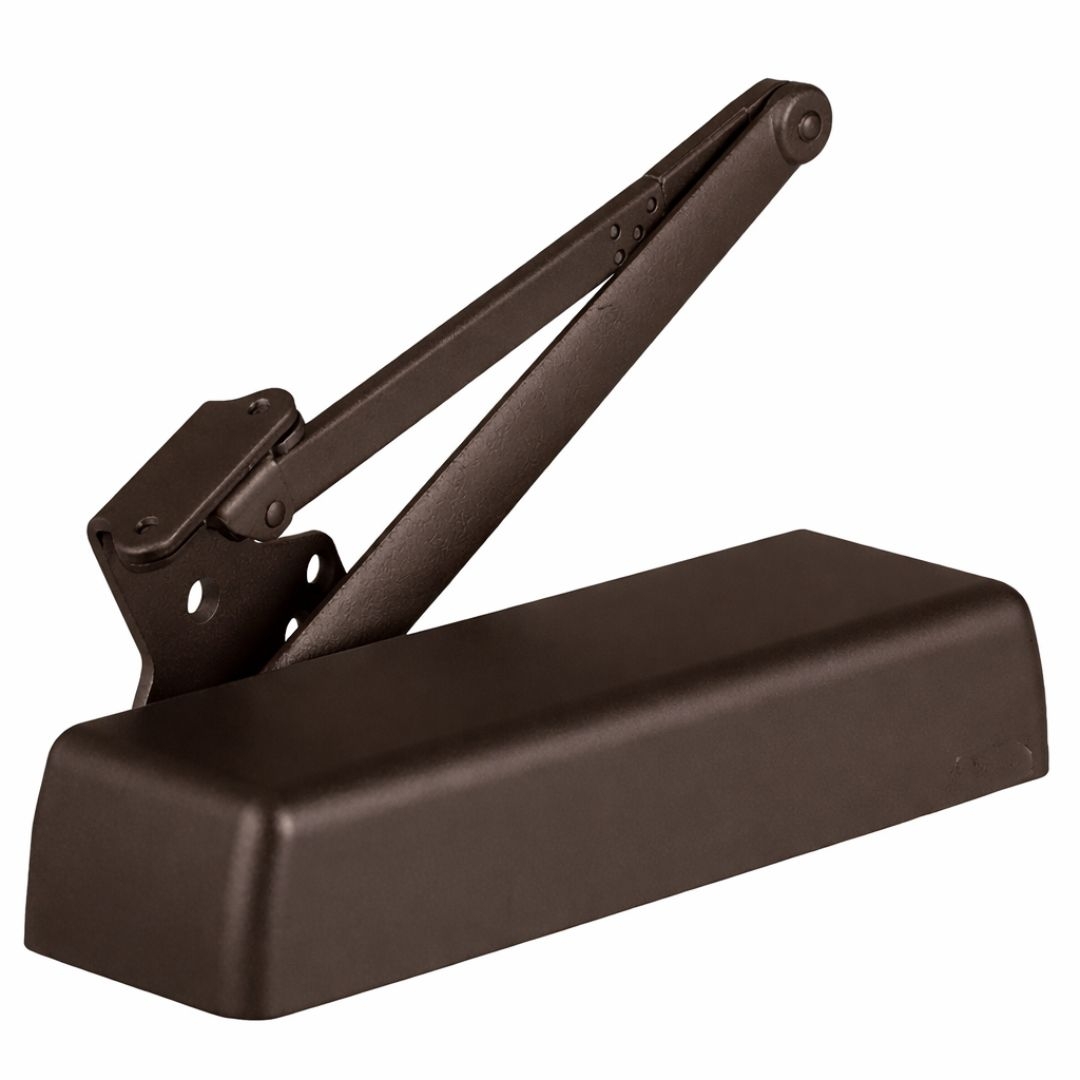

Stanley QDC117R Grade 1 Extra Heavy Duty Door Closer - Fully Adjustable - Cast Iron Body - Extra Duty Arm with Stop - Full Sized Rounded Plastic Cover

Stanley QDC117R Grade 1 Extra Heavy Duty Door Closer - Fully Adjustable - Cast Iron Body - Extra Duty Arm (non-handed) - Full Sized Rounded Plastic Cover

Door Closer Function:QDC113: Extra Duty Arm.(non-handed). Sex nuts and self tapping screws come standard with QDC100 series door closers. Premium performance standard: Get premium performance options like delayed action and a back check valve standard with the QDC100 series.

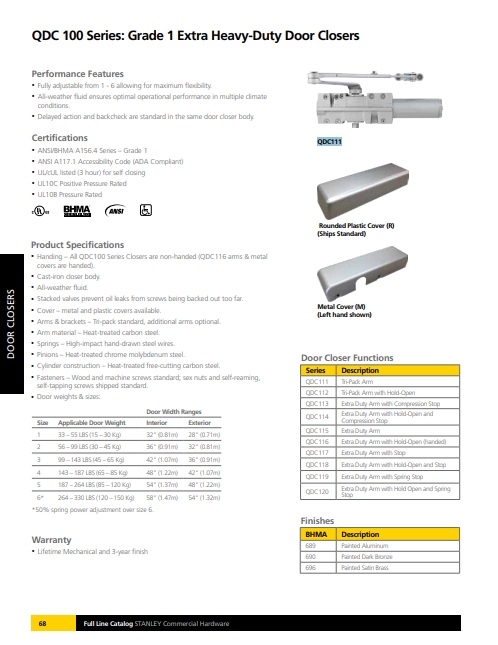

Specifications:

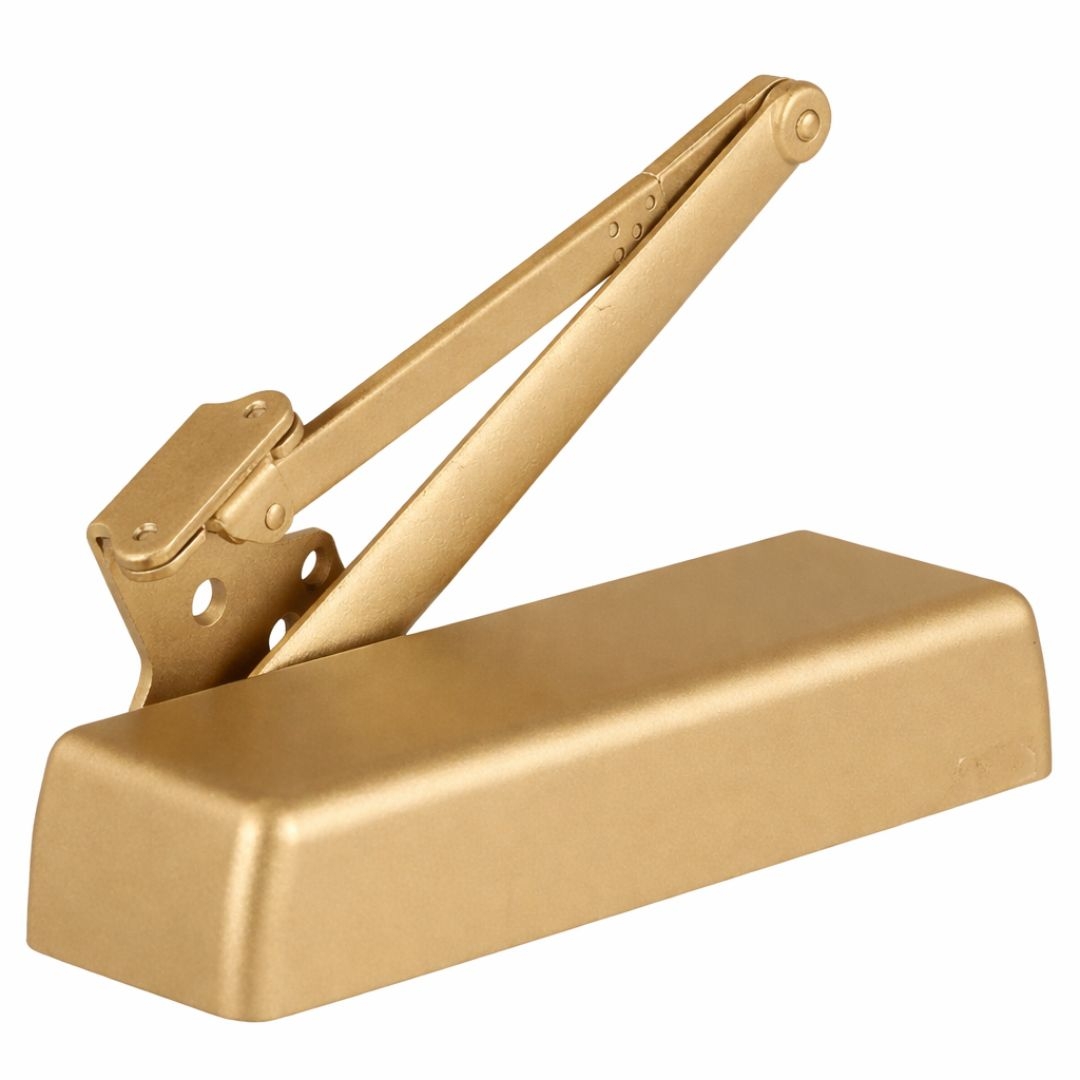

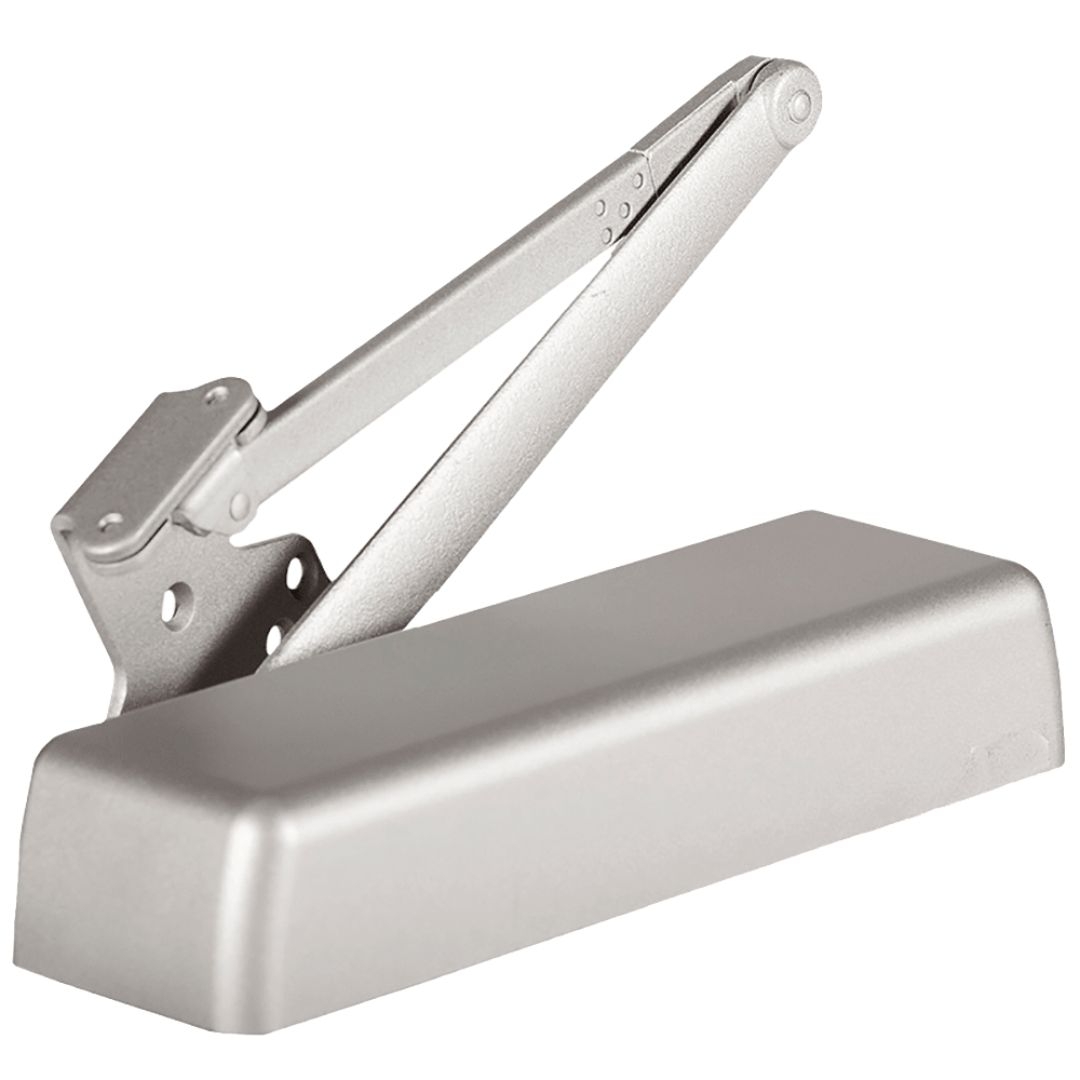

Certifications: ANSI/BHMA A156.4 Series Grade 1. ANSI A117.1 Accessibility Code (ADA Compliant). UL/cUL listed (3 hour) for self-closing. UL10c positive pressure rated. UL10b pressure rated. Body: Cast iron. Covers: Metal and plastic available. Arms & brackets: Tri-pack standard; additional heavy-duty arms optional. Arms: Heat-treated carbon steel. Springs: High-impact hand-drawn steel wire. Pinions: Heat-treated chrome molybdenum steel. Cylinders: Heat-treated free-cutting carbon steel. Fasteners: Wood and machine screws standard; sex nuts and self-reaming, self-tapping screws standard. Door Weights and Sizes: BF option required to meet ADA compliance for standard arm and top jamb applications. 1: 33-55 lbs (15-30 kg) weight; 32" (0.81 m)-28" (0.71 m) width. 2: 56-99 lbs (30-45 kg) weight; 36" (0.91 m)-32" (0.81 m) width. 3: 99-143 lbs (45-65 kg) weight; 42" (1.07 m)-36" (0.91 m) width. 4: 143-187 lbs (65-85 kg) weight; 48" (1.22 m)-42" (1.07 m) width. 5: 187-264 lbs (85-120 kg) weight; 54" (1.37 m)-48" (1.22 m) width. 6: 264-330 lbs (120-150 kg) weight; 58" (1.47 m)-54" (1.32 m) width. 50% spring power adjustment over size 6. Finishes: 689: Painted Aluminum. 690: Painted Duranodic Bronze. 696: Painted Satin Brass. Warranties: Lifetime mechanical. Three-year finish.

Stanley QDC. Stanley Closer, QDC100 Stanley, Stanley QDC100, QDC100, QDC117, QDC117R, Stanley QDC117R,  QDC117R Stanley, QDC117 Stanley, Stanley QDC117, QDC100Stanley, StanleyQDC100, QDC100, QDC117,QDC117R, StanleyQDC117R,  QDC117RStanley, QDC117Stanley, StanleyQDC117,

Ultimate durability: With cast iron body construction, cold-forged pinion shaft, and forged steel arms, the QDC100 stands up to heavy use over the long term. Easy to retrofit: There?s no need to re-prep your door. The QDC100 has the same footprint, bolt pattern, and rounded cover as the LCN4040 so it?s a simple off-and-on exchange. Industry-leading warranty: Each QDC100 closer comes with a lifetime mechanical warranty and a three-year warranty on finish. Exceeds certification standards: he QDC100 is BHMA/ANSI Grade 1 certified, and significantly exceeds performance requirements. These closers are fully adjustable, with a barrier-free option to meet ADA requirements. Outstanding versatility: We engineered the QDC100 series with all-weather fluid, a variety of arm types and stop options, and non-handed and universal mount design, to make it easy to stock and use in a wide variety of applications. Premium performance standard: Get premium performance options like delayed action and a back check valve standard with the QDC100 series. Proactive solutions: Innovative construction features like stacked valves prevent oil leaks from screws being accidentally backed out too far.
