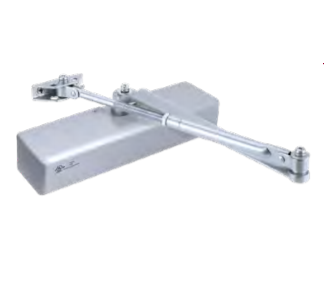

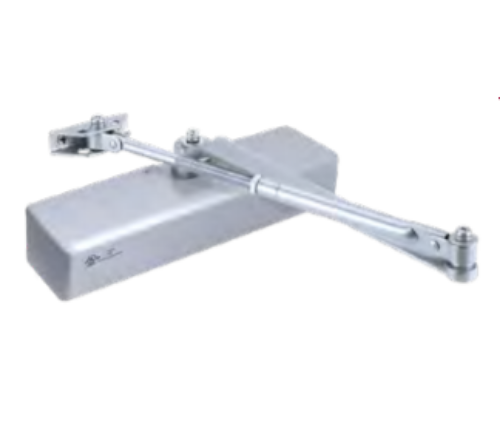

Tell DC100106 Heavy-Duty Commercial Grade 1 Closer - Parallel Arm Bracket - Adjustable 1-4 - Duro - Full Cover

Tell DC100106*Heavy-Duty Commercial Grade 1 Surface Applied Closers - Adjustable 1-4 - Duro - Full Cover*

- Parallel Arm Bracket. - Backcheck. - Meets ADA. - Full Cover. - Lifetime Warranty.

Standard Features

Finish: Doro. Performance: Complies with ANSI A156.4, Grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated. Chassis/Closer: Cast aluminum. Handing: Non-handed. Mounting: TRI-PACK - regular, top jamb and parallel arm applications. Main Arm:  Forged steel, accommodates reveals up to 3 1/4", adjustable extension arm. Spring Power:  Adjustable 1 - 4 and 3 - 6 sizes. Backcheck:  Adjustable, hydraulic - providing cushioning and preventing uncontrolled door openings. Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds. Fasteners:  Metal screws included for hollow metal and aluminum mounting applications. Wood screws included for wood door mounting applications. Thru-bolts optional. Door Range: Up to 180 degrees. Door Preparation:  9-1/16" horizontal and 3/4" vertical mounting hole locations (retrofits traditional closer). Warranty: 25 year limited.

Optional Features: * *Covers: High impact plastic and plated kit: cover, arm & bracket. Hold Open Arm:  Forged steel with hold open adjustable from 80 to 135 degrees. Sex Nuts:  For 1-3/8" or 1-3/4" thick doors.

Tell15641, 15641Tell, 15641 Tell, Tell 15641, 15641, DC100006, TellDC100018, Tell DC100006 Tell, DC100006, Tell DC100006, DC100006 Tell, TellDC100006
