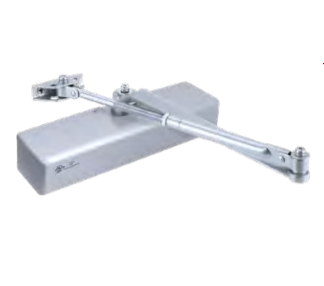

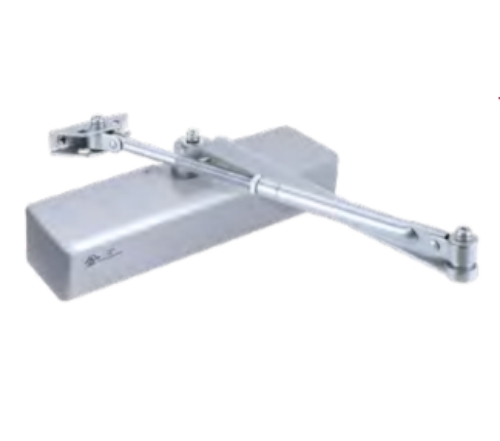

Tell DC100108 Heavy-Duty Commercial Grade 1 Closer - Parallel Arm Bracket - Adjustable 1-4 - Alum - Full Cover

Tell DC100108 Heavy-Duty Commercial Grade 1 Surface Applied Closers - Adjustable 1-4 - Alum - Full Cover

• Parallel Arm Bracket.
• Backcheck.
• Meets ADA.
• Full Cover.
• Lifetime Warranty.

Standard Features

Finish: ALUM.

Performance: Complies with ANSI A156.4, Grade 1, 2 million cycles, UL/ULC listed up to 3 hours fire rated.

Chassis/Closer: Cast aluminum.

Handing: Non-handed.

Mounting: TRI-PACK - regular, top jamb and parallel arm applications.

Main Arm:  Forged steel, accommodates reveals up to 3 1/4", adjustable extension arm.

Spring Power:  Adjustable 1 - 4 and 3 - 6 sizes.

Backcheck:  Adjustable, hydraulic - providing cushioning and preventing uncontrolled door openings.

Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds.

Fasteners:  Metal screws included for hollow metal and aluminum mounting applications. Wood screws included for wood door mounting applications. Thru-bolts optional.

Door Range: Up to 180 degrees.

Door Preparation:  9-1/16" horizontal and 3/4" vertical mounting hole locations (retrofits traditional closer).

Warranty: 25 year limited.

Optional Features:

Covers: High impact plastic and plated kit: cover, arm & bracket.

Hold Open Arm:  Forged steel with hold open adjustable from 80 to 135 degrees.

Sex Nuts:  For 1-3/8" or 1-3/4" thick doors.

Model: Tell12641, 12641Tell, 12641 Tell, Tell 12641, 12641, DC100018, TellDC100018, Tell DC100018 Tell, DC100045, Tell DC100045, DC100045 Tell, TellDC100045
