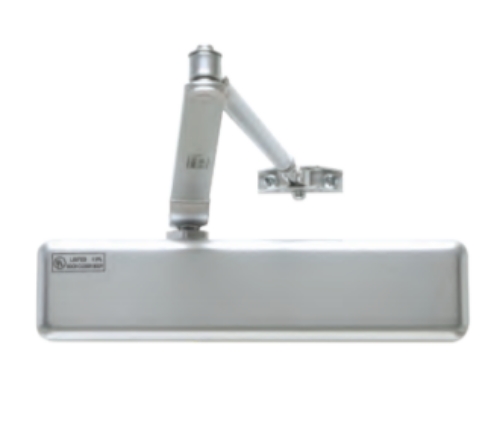

Tell DC100316 Heavy-Duty Commercial Grade 1 Closer - Parallel Arm Bracket - Adjustable 1-6 - Full Cover - Backcheck - Duro

Tell DC100316 Heavy-Duty Commercial Grade 1 Surface Applied Close - Duro - Full Cover - Backcheck

• Parallel Arm Bracket.
• Adjustable 1-6 Sizes.
• Sex Nuts.
• Backcheck.
• Meets ADA.
• Full Cover.
• Lifetime Warranty.

Standard Features:

Performance: Complies with ANSI A156.4, Grade 1, 2,000,000 cycles, UL/ULC listed up to 3 hours fire rated.

Chassis/Closer: Cast aluminum.

Handing: Non-handed.

Mounting: TRI-PACK - regular, top jamb and parallel arm applications.

Main Arm: Forged steel, accommodates reveals up to 3-1/4", adjustable extension arm.

Spring Power: Adjustable 1 - 6 sizes.

Backcheck: Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door.

Valves: Adjustable, independent, non-critical (sweep and latch), consistent closing speeds.

Fasteners: Metal screws included for hollow metal and aluminum mounting applications. Wood screws included for wood door mounting applications. Closers are packed with thru-bolts.

Door Range: Up to 180 degrees.

Door Preparation: 11-3/32" horizontal and 3/4" vertical mounting hole locations (retrofits traditional closer).

Warranty: 25 years.

Model: FLA DC100316, DC100316 Tell, DC100316, 12741, 12741 Tell Tell 12741, DC100316Tell, TellDC100316
