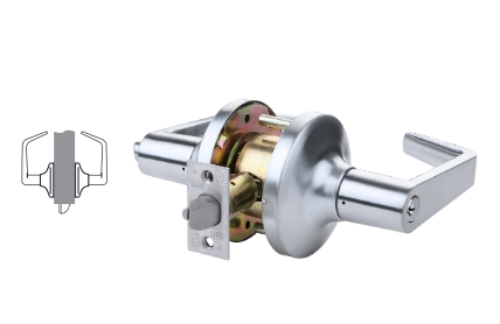

Tell LC1275 CTL Passage Lever Set

Tell LC1275 CTL Passage Lever Set - ANSI F75

Latchbolt operated by lever from either side at all times.

Performance:Complies with ANSI A156.2 - 2003, Series 4000, Grade 1, 800,000 cycles, UL listed for 3 hour fire door

Lever:Non-handed, solid cast

Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw

Backset:2-3/4"

Strike: Square corner 1-1/4" x 4-7/8th ANSI ASA Strike standard. also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)     Door Range:1-3/8" to 2"

Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep with through-bolting through the door.

Warranty:5 year limited

Chassis:Cylindrical, steel - coated with zinc dichromate (corrosion resistance), freewheeling clutch (added security from hammer attacks), independent spring cages
