Product Details

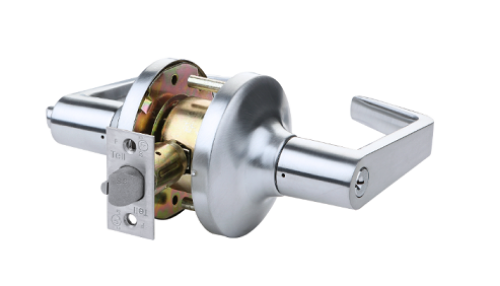

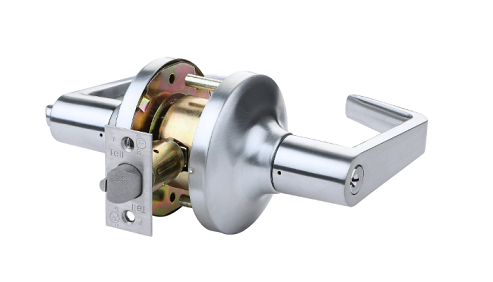

Tell LC2484 Grade 2 Classroom Lock
Latchbolt operated by knob from each side*Outside knob locked or unlocked by key from outside*Inside knob always operates latch
Lever:Non-handed, solid cast
Thru-bolts:Thru-bolts standard. Removable available.
Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw
Backset:2-3/4" Standard. Available with 2-3/8" Backset
Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. Also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)
Door Range:1-3/8" to 2"
Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep.
Cylinder:Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD)
Keys:Two nickel silver per lock cylinder
Keying:Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
Warranty:1 year limited
Model:Tell LC2484BUC, LC2484CTL, LC2484BUC26D, LC2484CTLD6D, LC2484BUC10B, LC2484CTL10B, LC2484BUC3, LC2484CTL3
