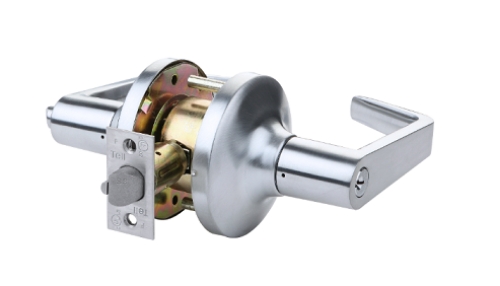

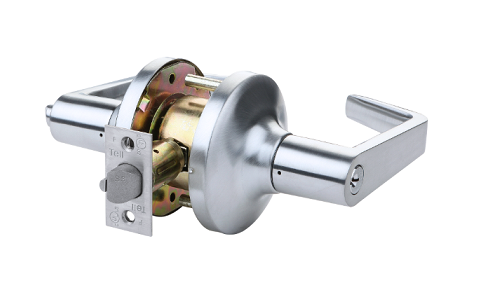

Tell LC2482 Grade 2 Office Lock

Tell LC2482 Grade 2 Office Lock

Deadlocking latch bolt operated by lever from either side except when outside lever is locked by push button or other locking device on inside. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button or other locking device and retracts latch bolt. Closing door does not release push button or other locking device.

Lever:Non-handed, solid cast

Thru-bolts:Thru-bolts standard. Removable available.

Latch:1-1/8" x 2-1/4", square corner faceplate, 1" housing diameter (stainless steel), 1/2" throw

Backset:2-3/4" Standard. Available with 2-3/8" Backset

Strike: Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. Also available with T Strike (1-1/8" x 2-3/4"), and F Strike (full lip)

Door Range:1-3/8" to 2"

Door Preparation:2-1/8" diameter for lever, 1" diameter for latch bolt. Fits standard 161 door prep.

Cylinder:Schlage (SCC) - 6-pin solid brass, C keyway, keyed different (KD)

Keys:Two nickel silver per lock cylinder

Keying:Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)     Warranty:1 year limited

Model:Tell LC2482BUC, LC2482CTL, LC2482BUC26D, LC2482CTLD6D, LC2482BUC10B, LC2482CTL10B, LC2482BUC3, LC2482CTL3

Performance Complies wth ANSI A156.2, Series 4000, Grade 2, (400,000 cycles), UL listed for 3 hour fire door. ANSI A117.1 American Disabilities Act (ADA)

Chassis Cylindrical, steel - coated with zinc dichromate (corrosion resistance), freewheeling clutch (added security from hammer attacks), independent spring cages.

Chassis conforms to Grade 1 ANSI A156.2 specifications.
